Evaporative Emission Control System: Components

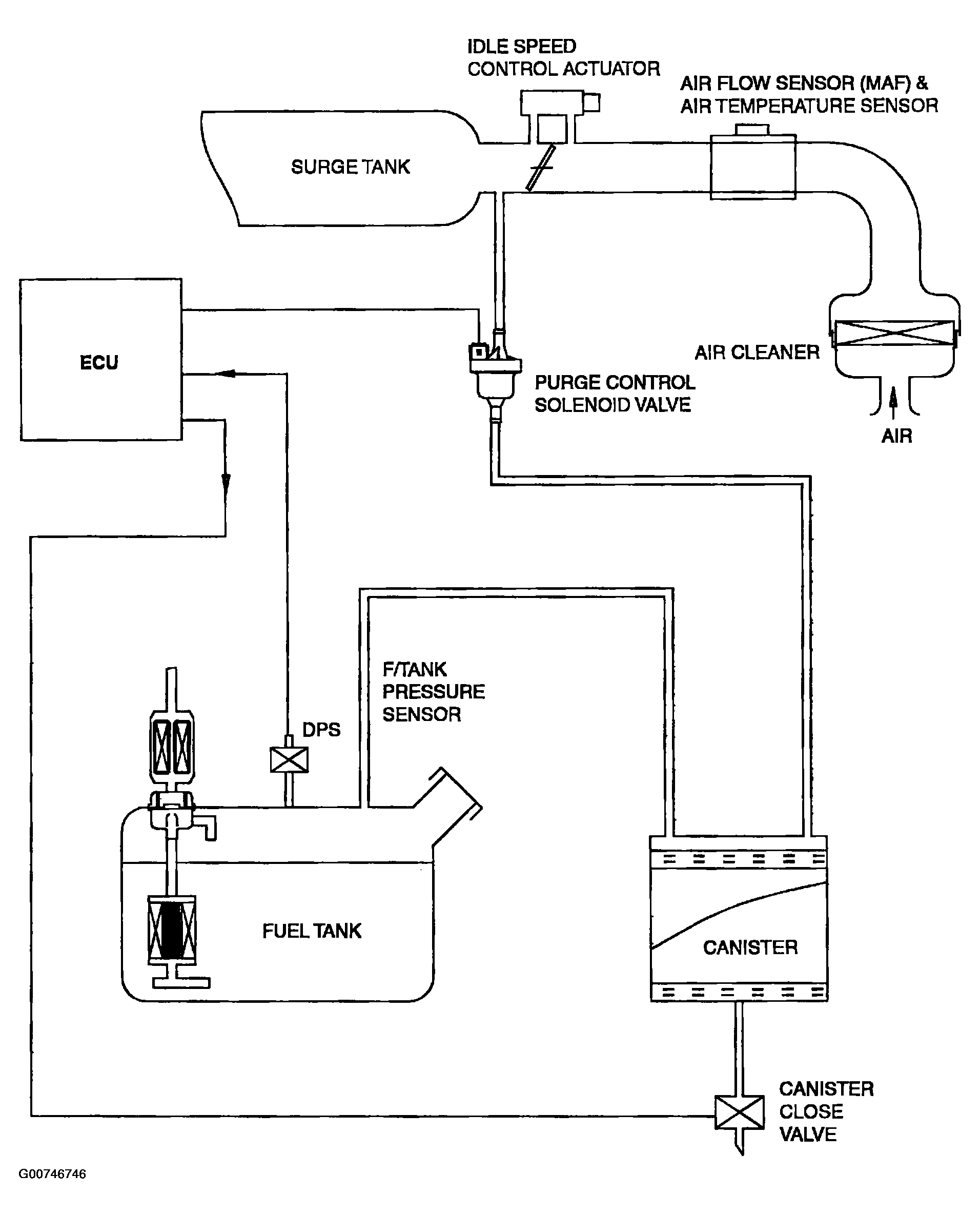

Fig 1: Evaporative Emission Control System Diagram

G00746746

Courtesy of HYUNDAI MOTOR CO.
