When Engine Is Warm

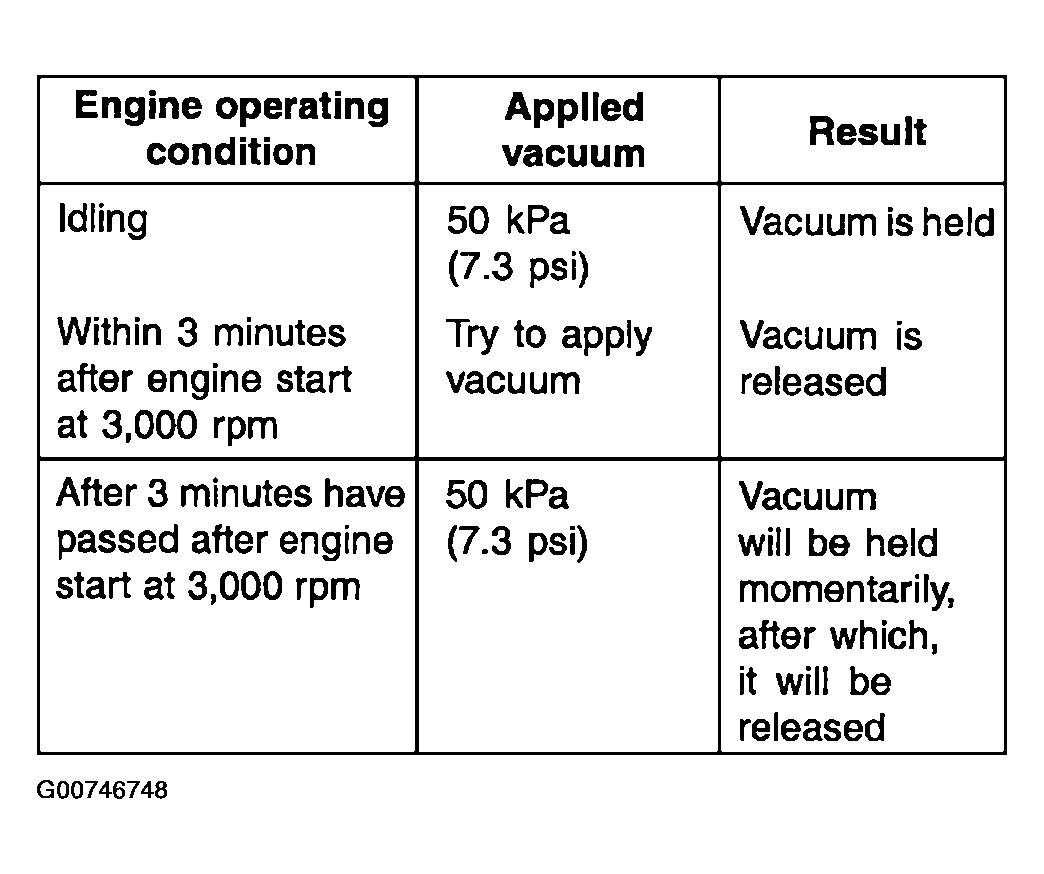

Fig 1: EVAP System Vacuum Specification (Warm Engine)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
