Emission Control System: General: Components

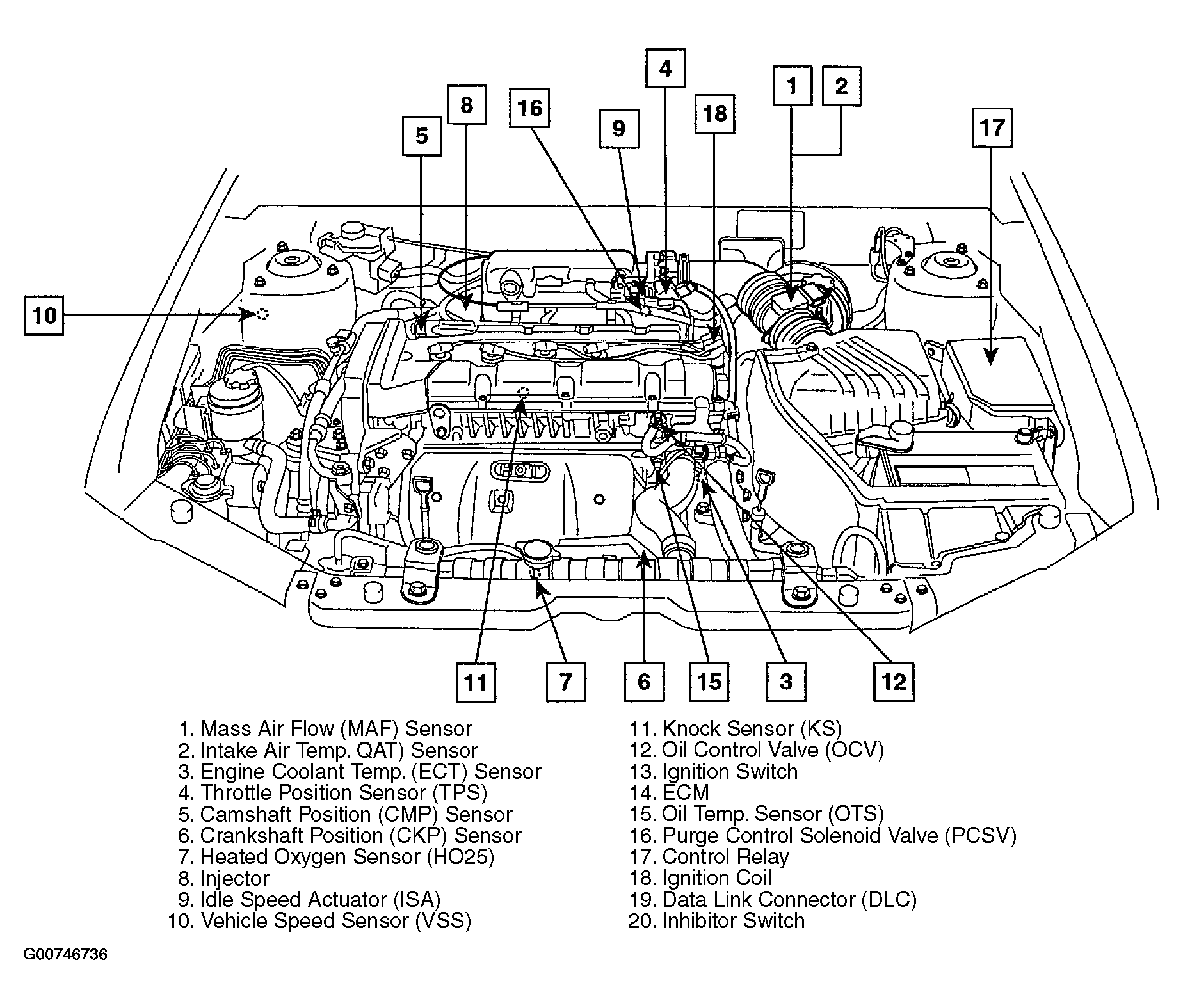

Fig 1: Locating Emission Control System Components (1 Of 4)
G00746736Courtesy of HYUNDAI MOTOR CO.

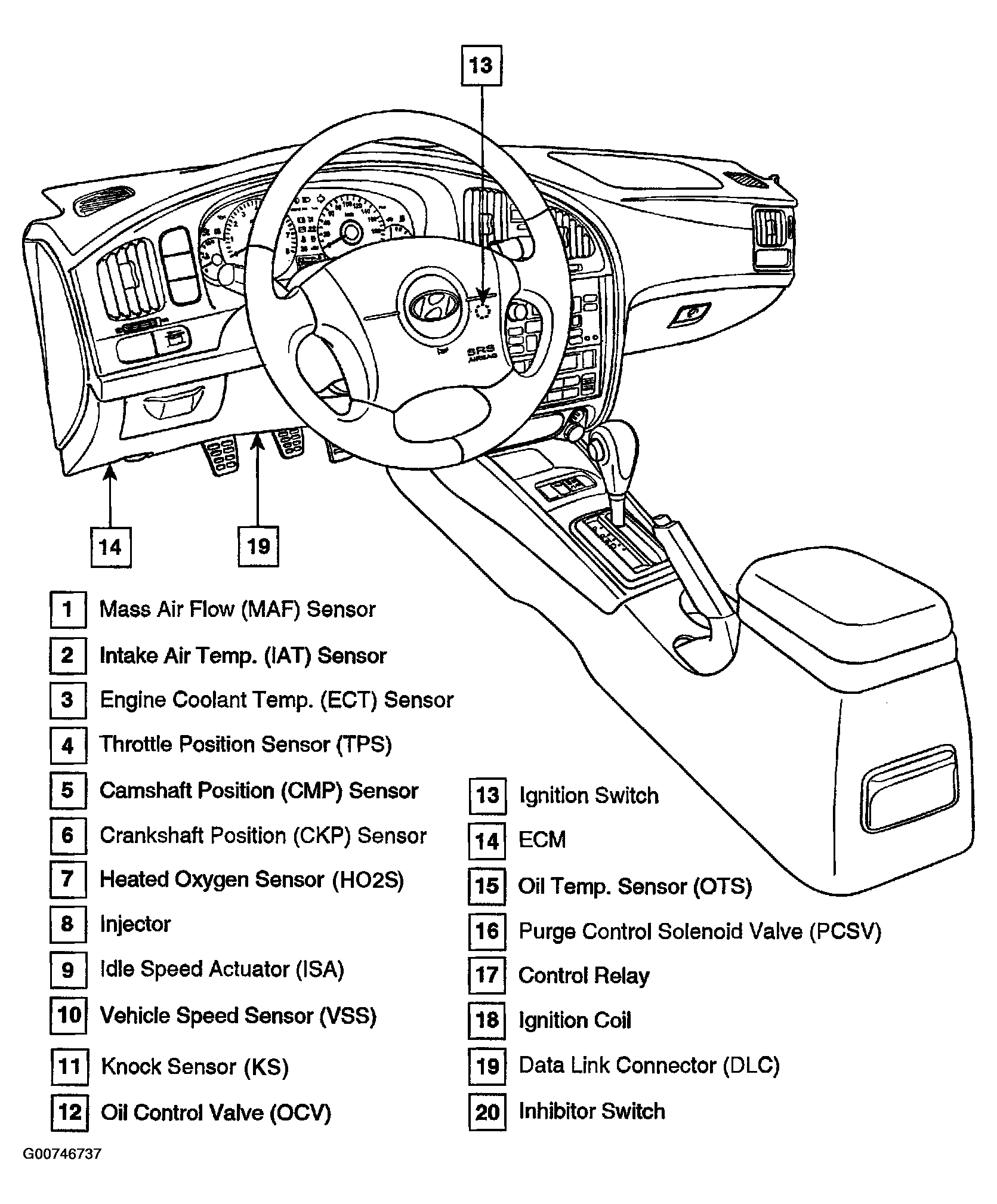

Fig 2: Locating Emission Control System Components (2 Of 4)
G00746737Courtesy of HYUNDAI MOTOR CO.

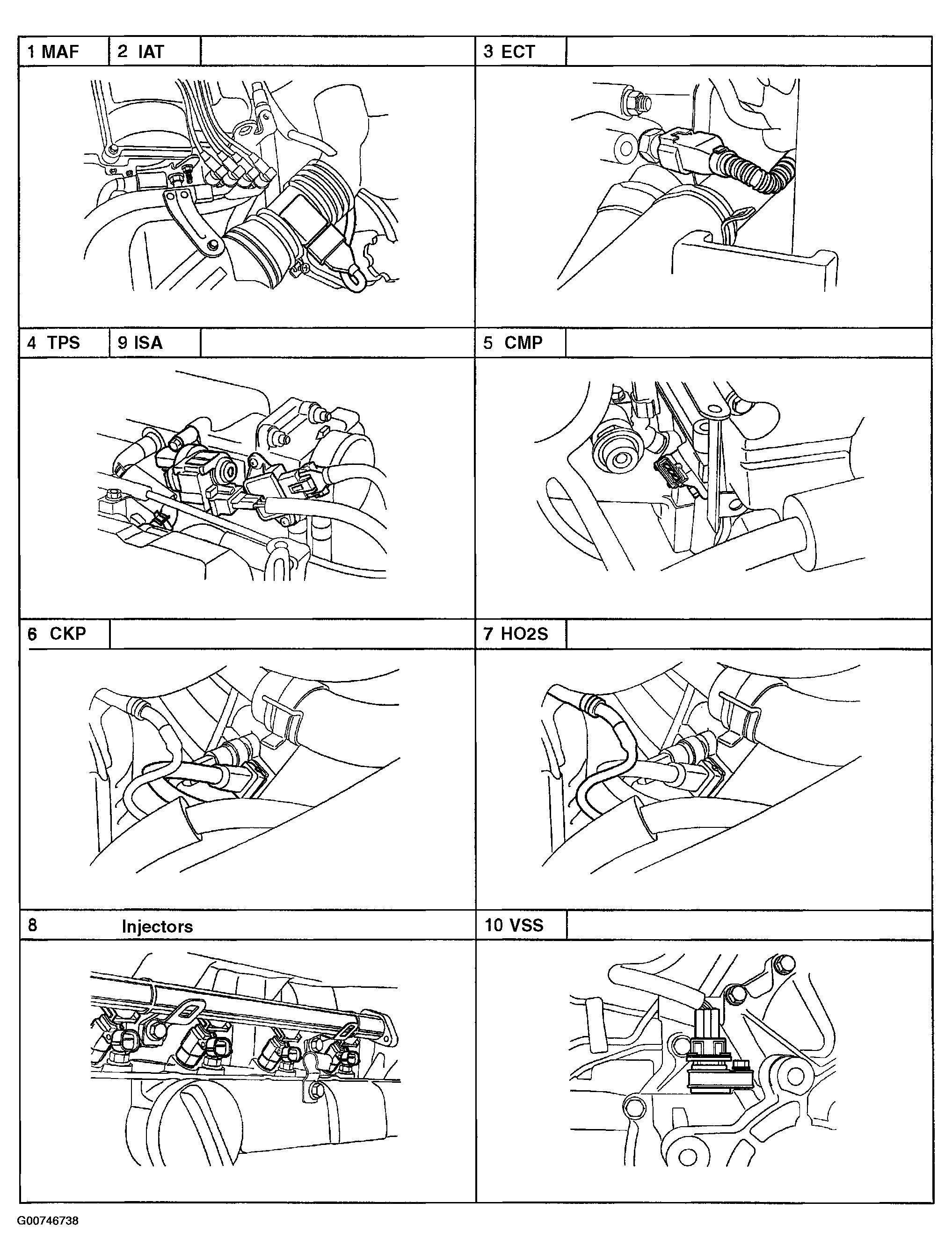

Fig 3: Locating Emission Control System Components (3 Of 4)
G00746738Courtesy of HYUNDAI MOTOR CO.

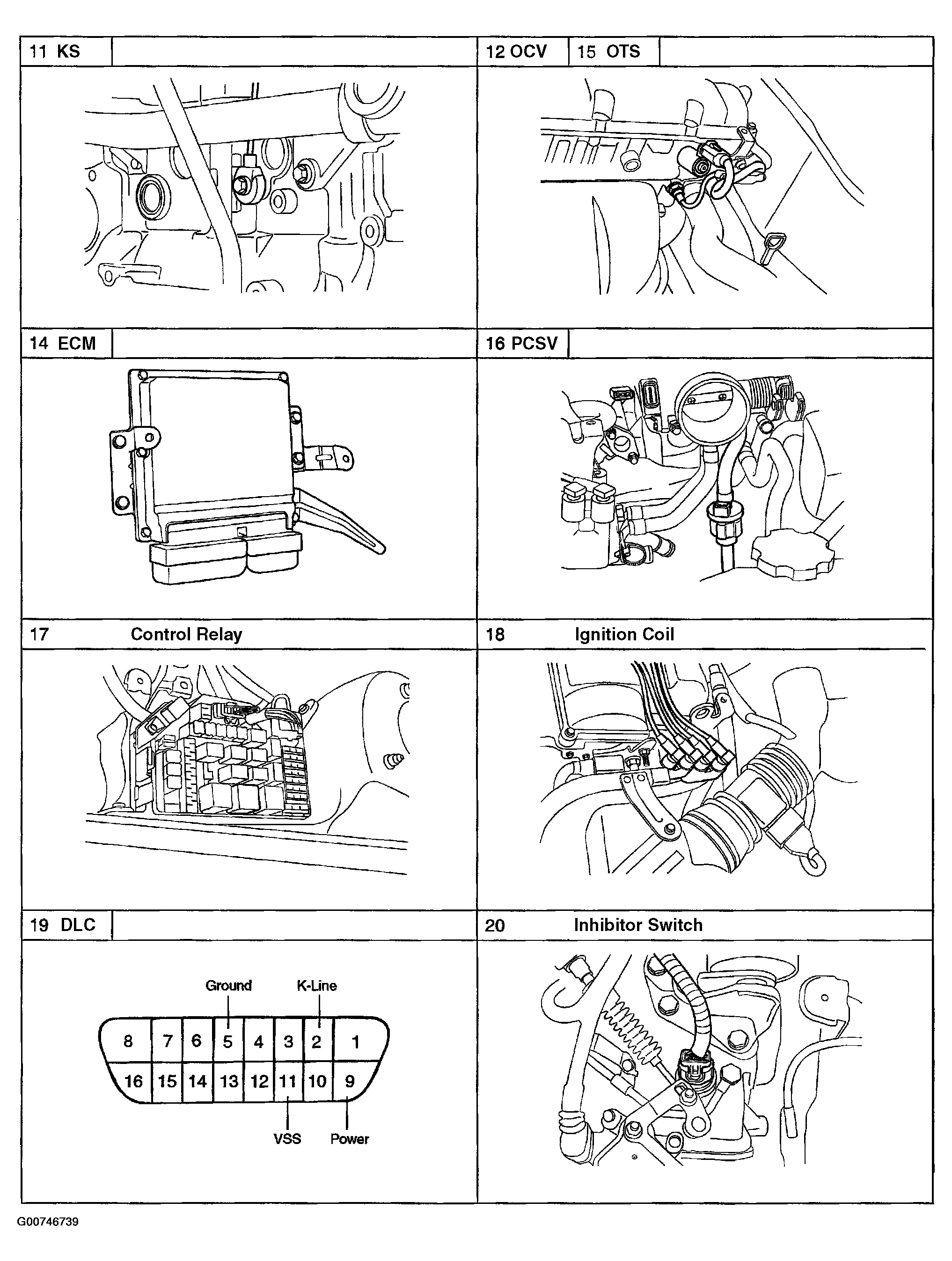

Fig 4: Locating Emission Control System Components (4 Of 4)
G00746739Courtesy of HYUNDAI MOTOR CO.
