Fuel Injector: Components

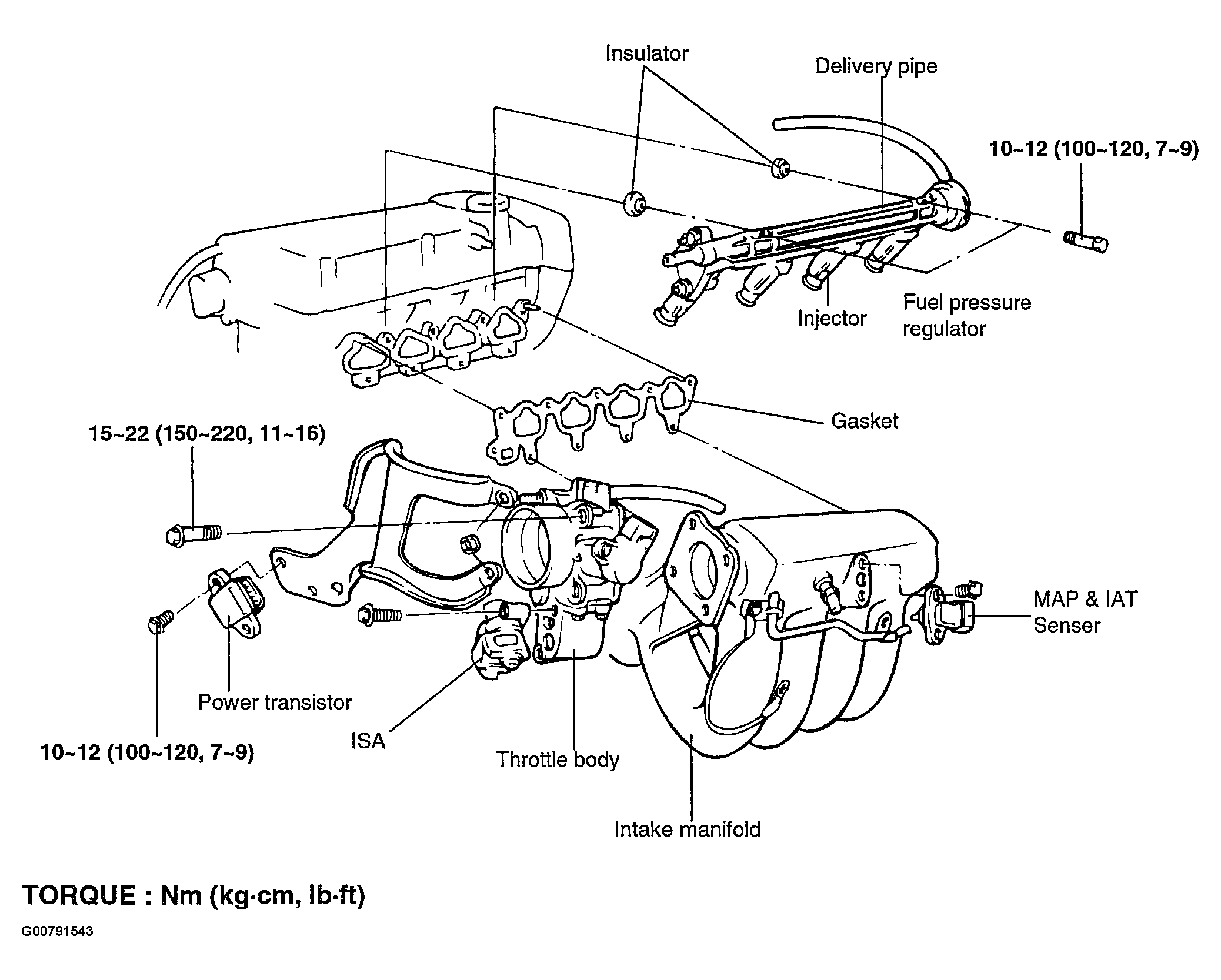

Fig 1: Fuel Injector Components (2.4L)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
