Inspection Procedure 2

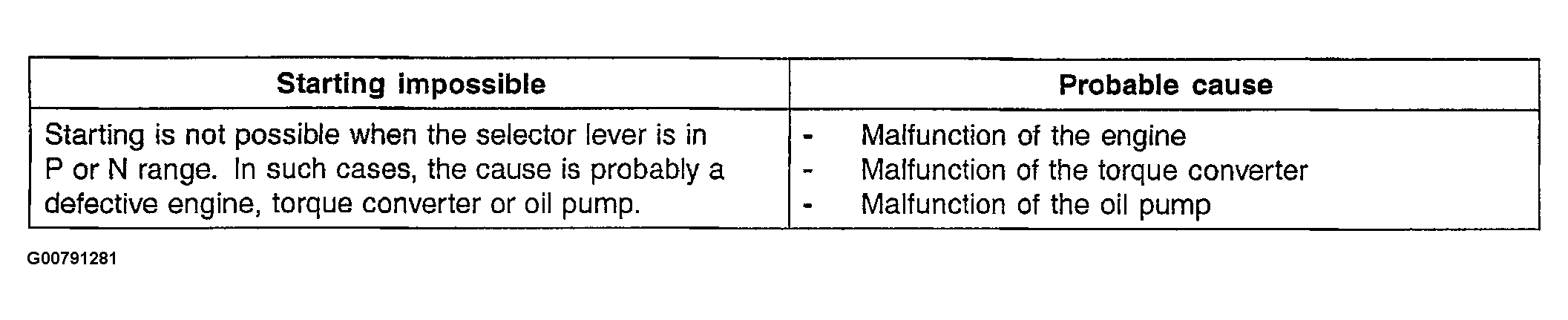

Fig 1: Inspection Procedure 2 Definitions & Probable Causes
G00791281Courtesy of HYUNDAI MOTOR CO.

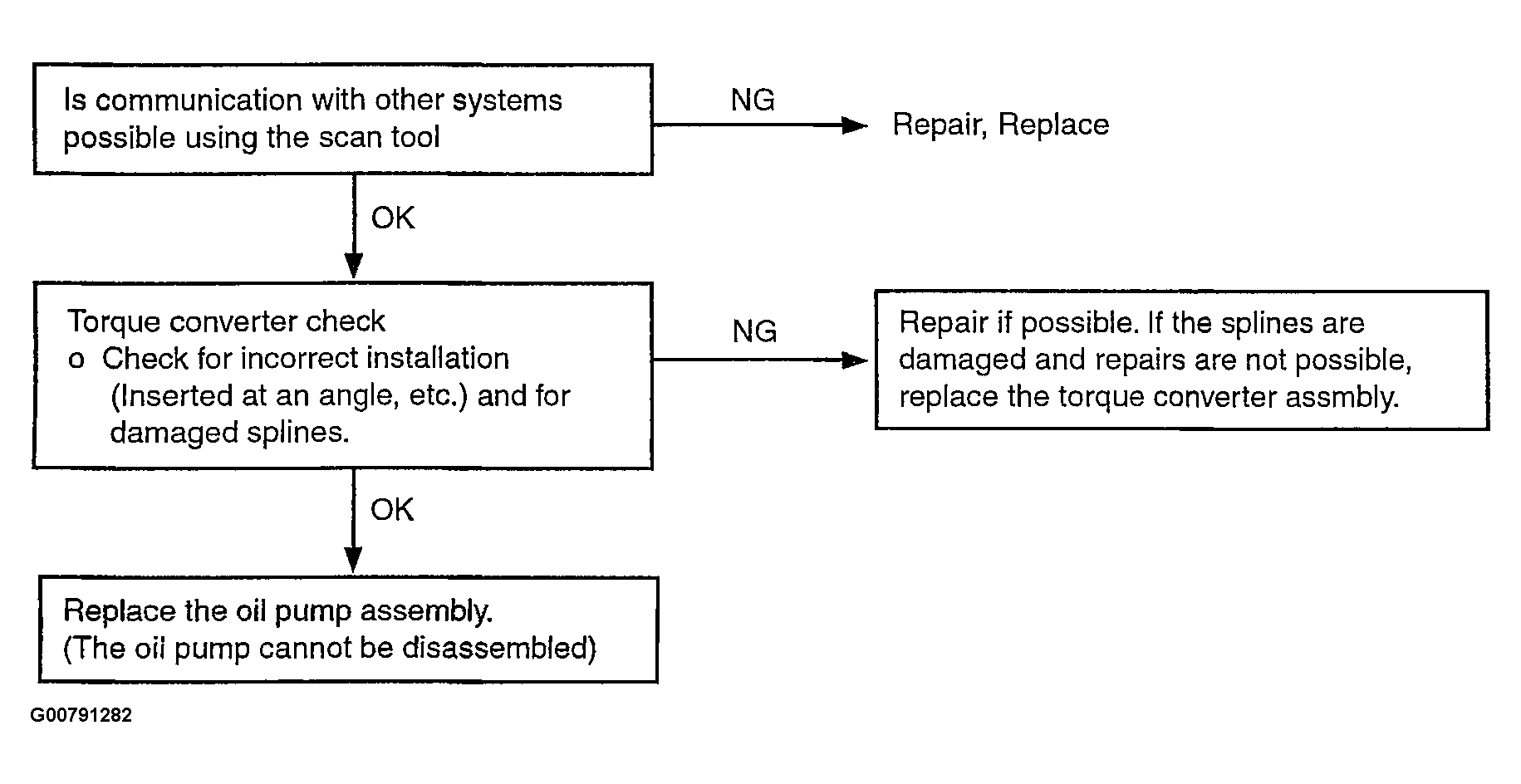

Fig 2: Inspection Procedure 2 Diagnostic Flow Chart
G00791282Courtesy of HYUNDAI MOTOR CO.
