Automatic Transaxle System
>>
Troubleshooting (A/T)
>>
Road Test
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Road Test

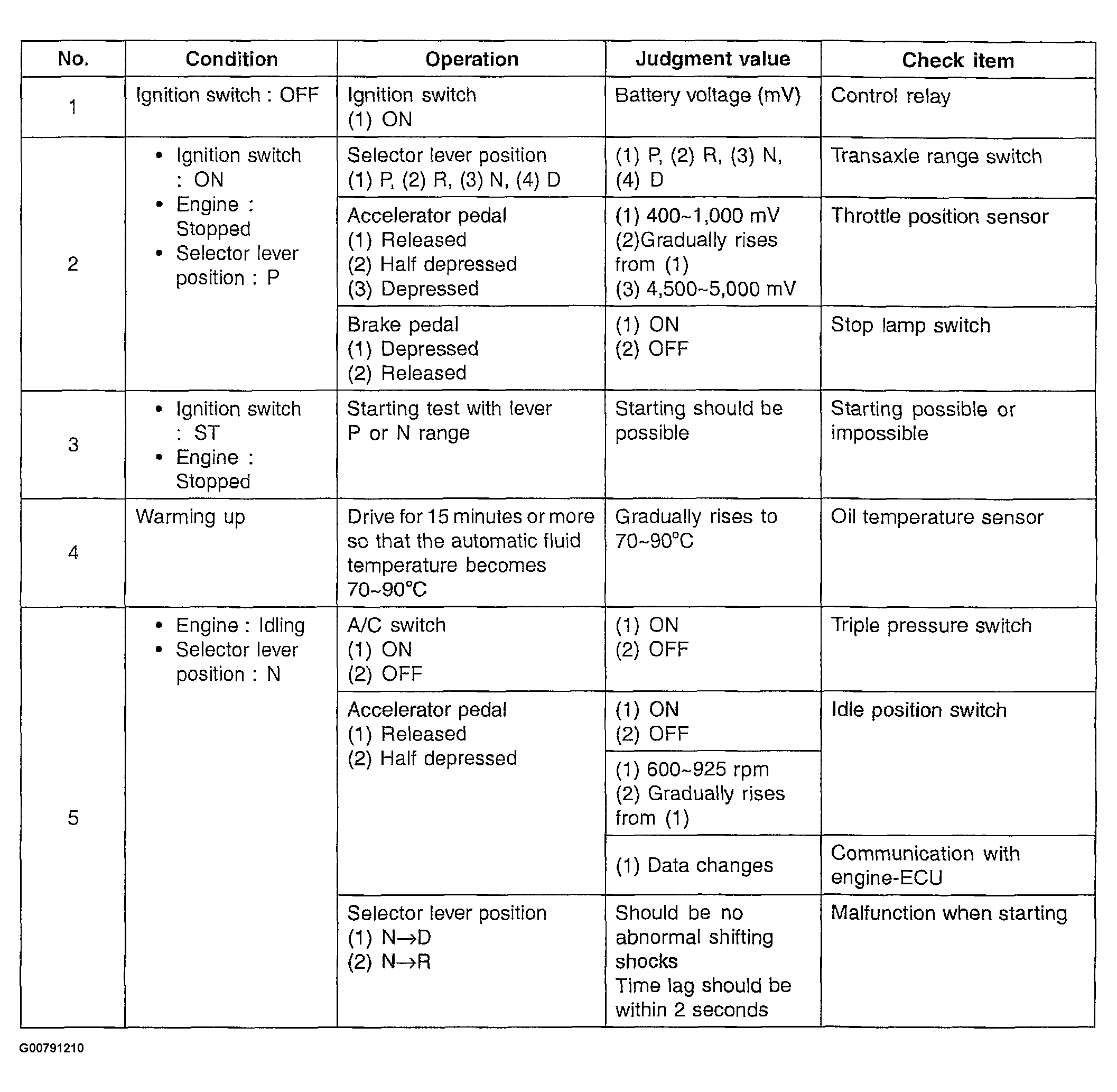

Fig 1: Road Test Table (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

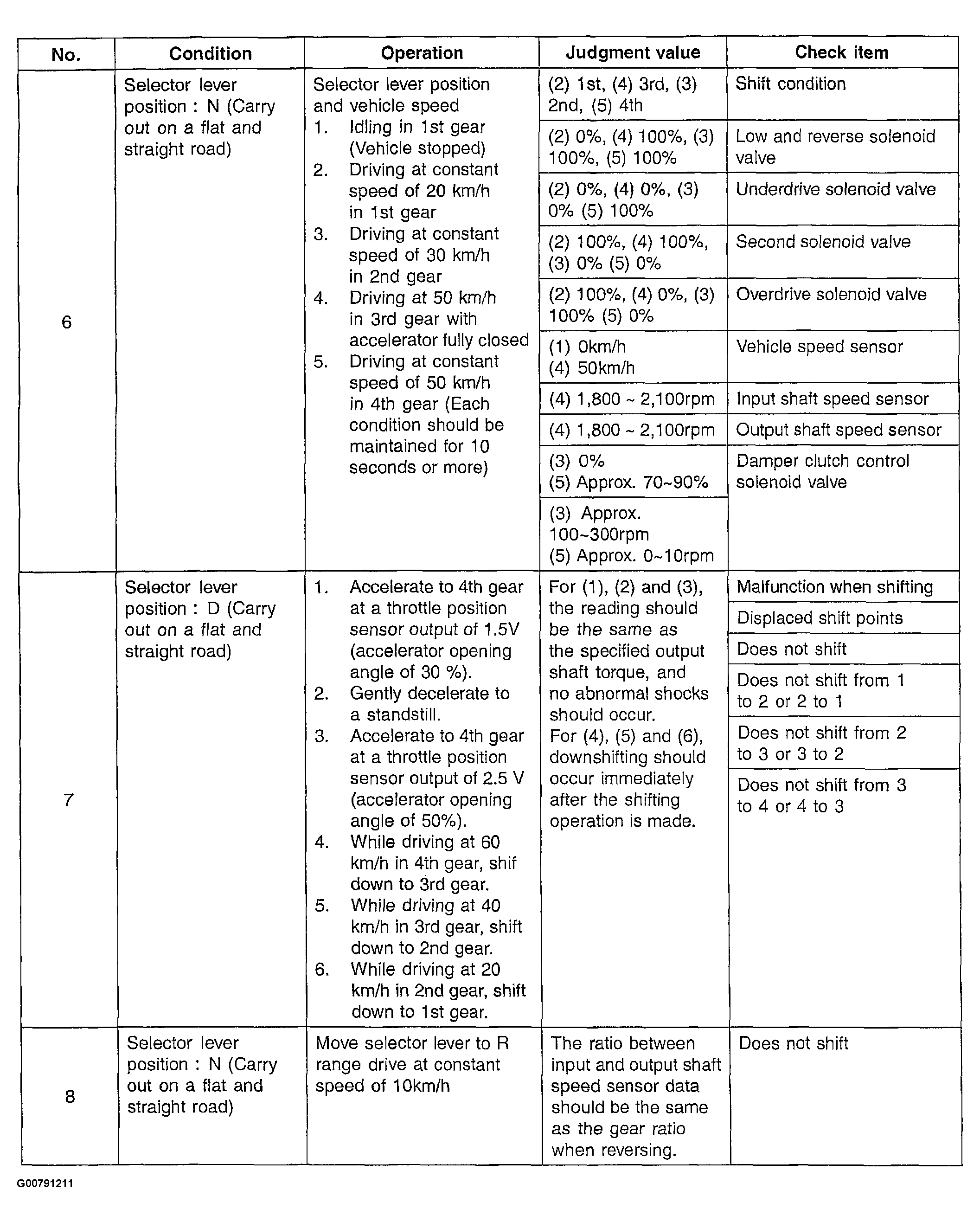

Fig 2: Road Test Table (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
