Special Tools

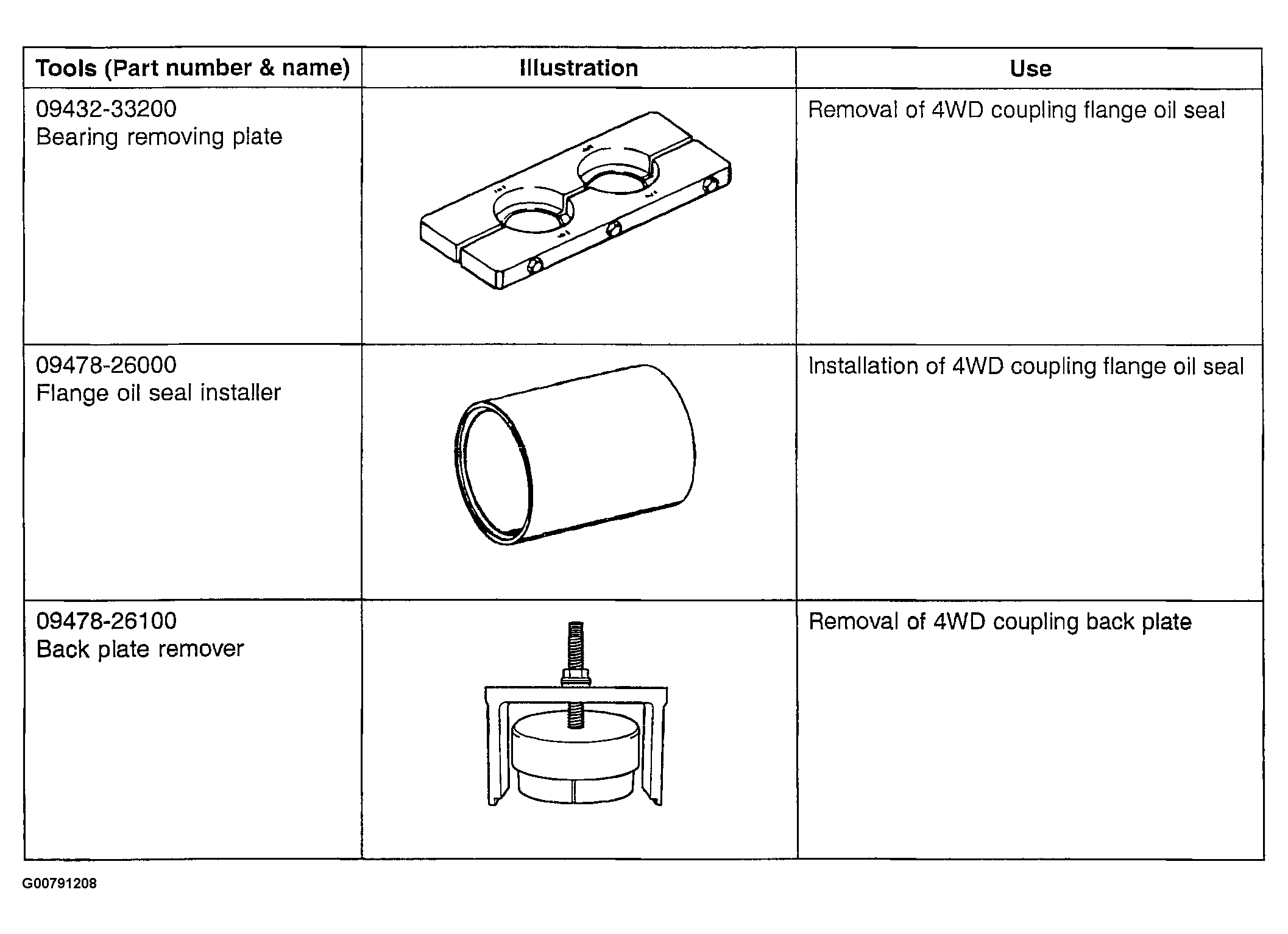

Fig 1: Special Tools
Courtesy of HYUNDAI MOTOR CO.

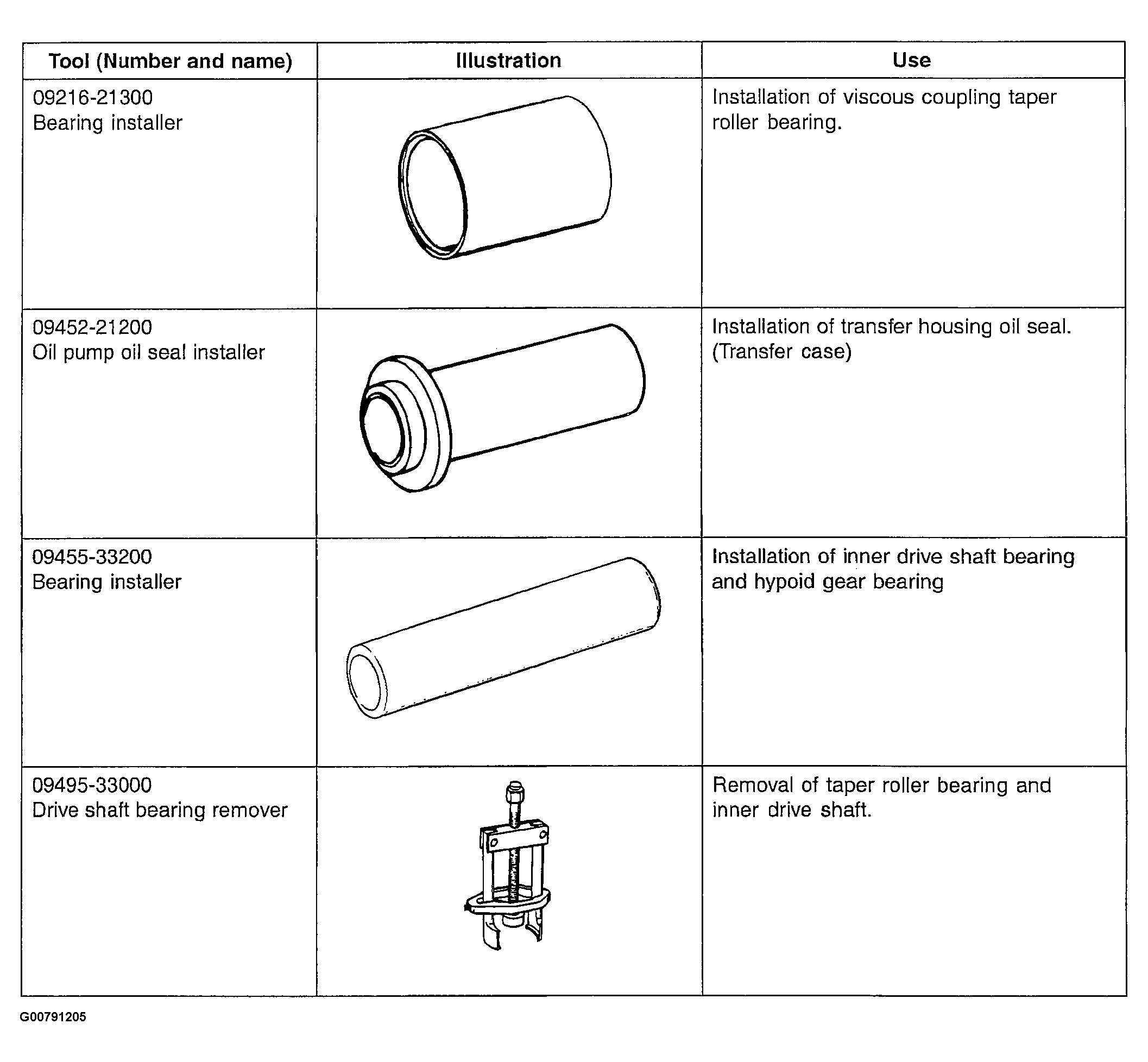

Fig 2: Coupling Special Tools
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
