Transfer Case Assembly: General: Specifications

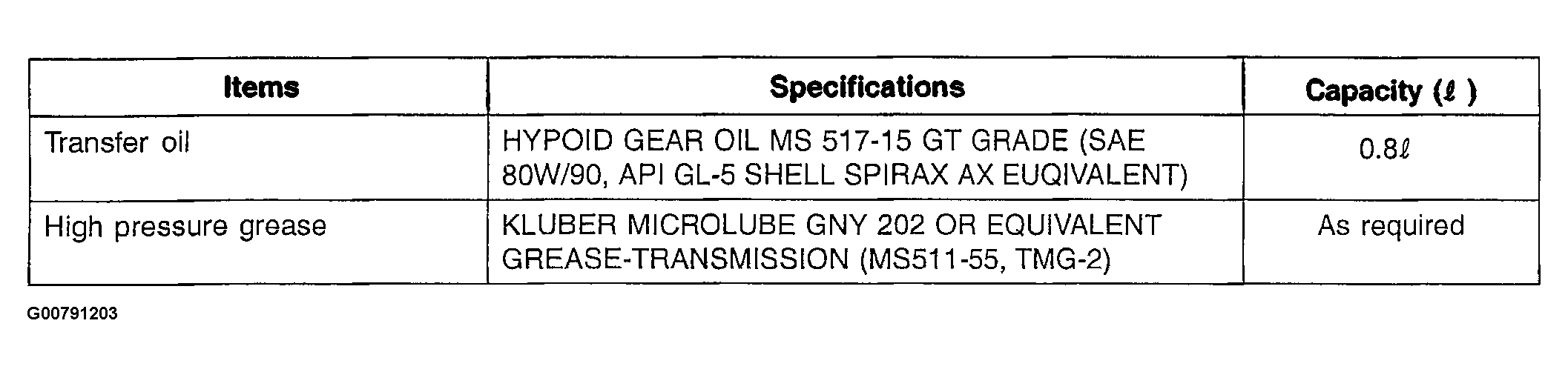

Fig 1: Lubrication Specifications
G00791203Courtesy of HYUNDAI MOTOR CO.

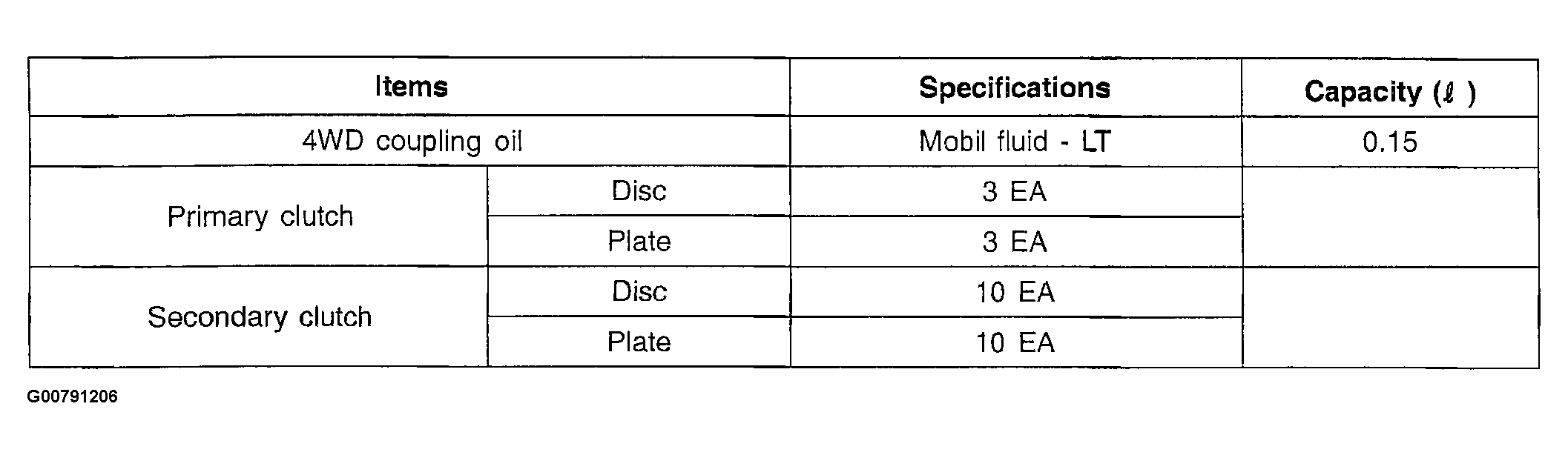

Fig 2: Coupling Fluid Specifications
G00791206Courtesy of HYUNDAI MOTOR CO.
