Coupling Assembly: Reassembly

When reassembling the back plate oil seal, reassemble it using a suitable tool.

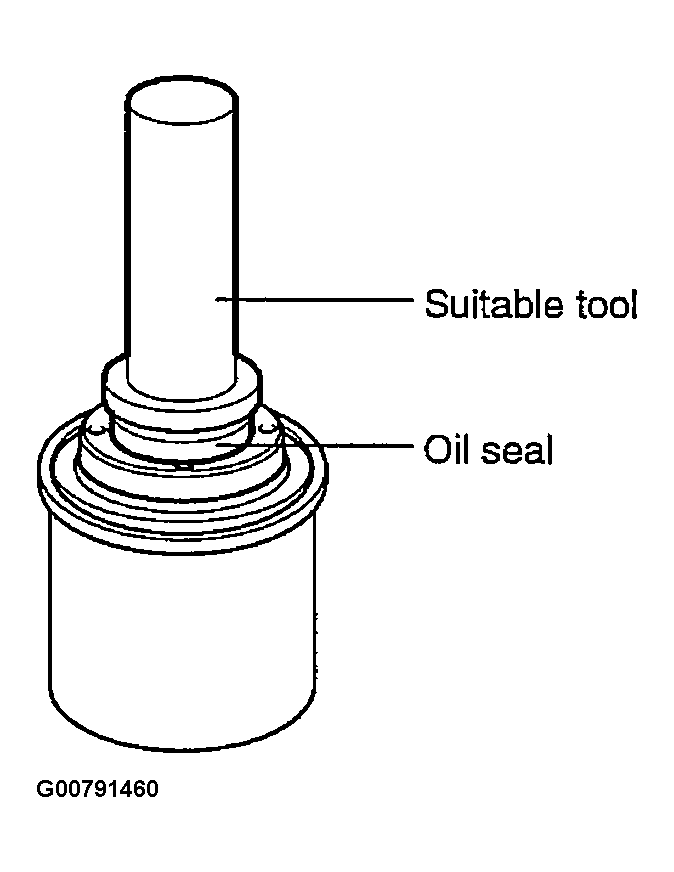

Fig 1: Installing Back Plate Oil Seal
Courtesy of HYUNDAI MOTOR CO.
In case of the coupling case oil seal, too, reassemble it using a suitable tool.

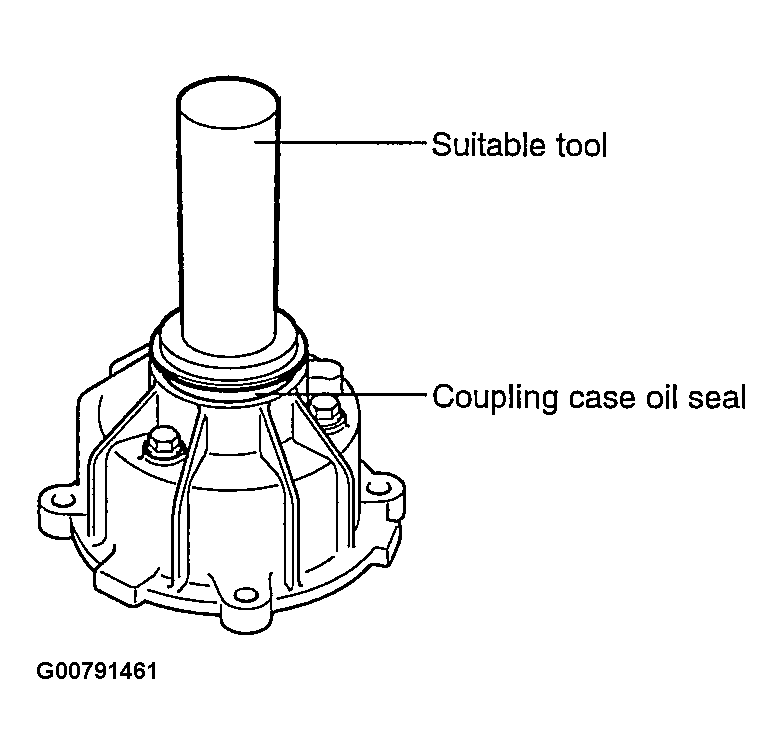

Fig 2: Installing Coupling Case Oil Seal
Courtesy of HYUNDAI MOTOR CO.
When reassembling the 4WD coupling assembly and the flange, too, reassemble them using a suitable tool.

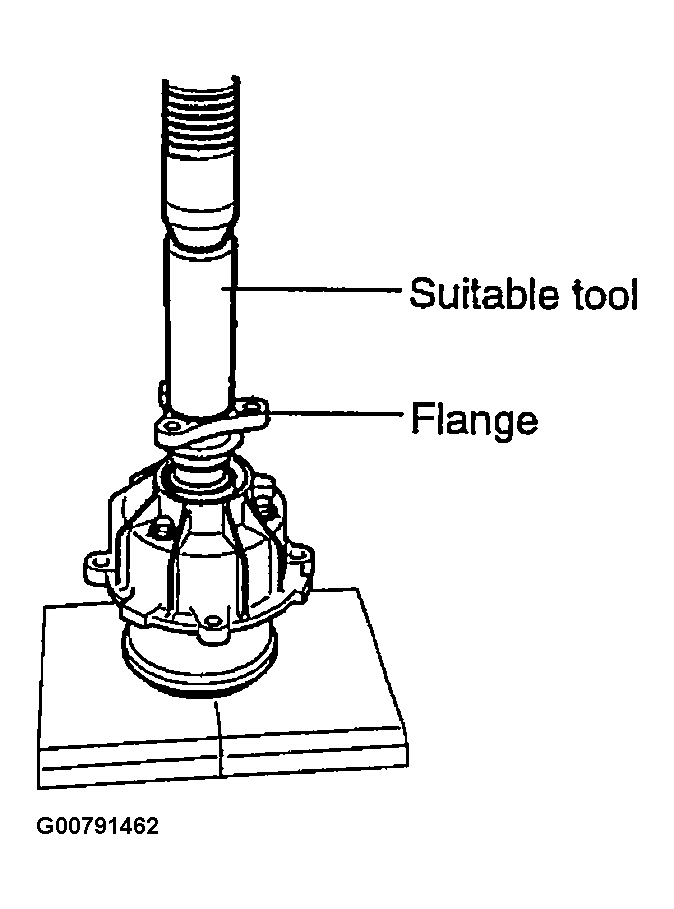

Fig 3: Reassembling Coupling & Flange
Courtesy of HYUNDAI MOTOR CO.
Install the flange oil seal using special tool.

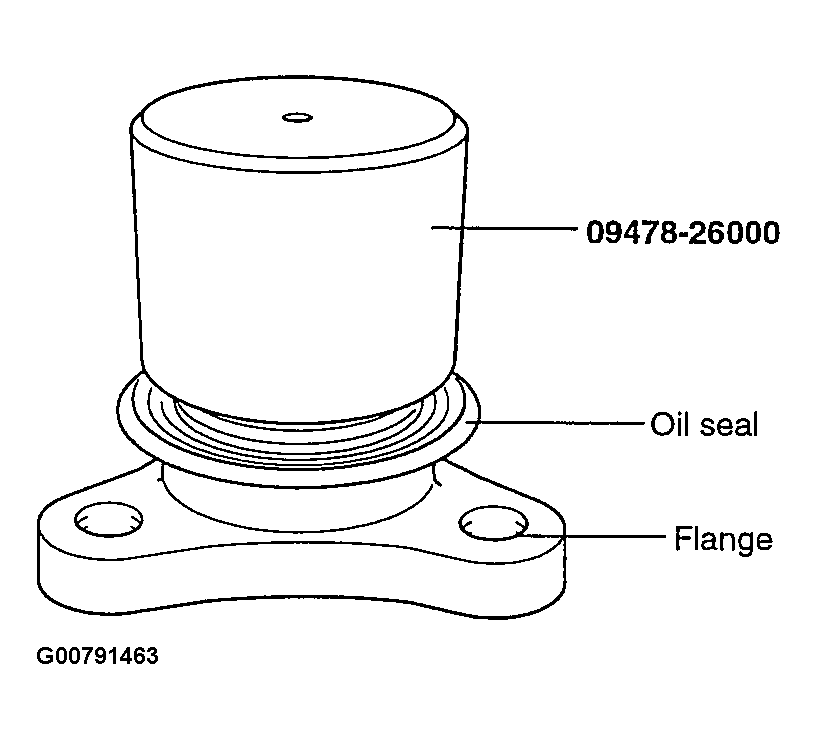

Fig 4: Installing Flange Oil Seal

Courtesy of HYUNDAI MOTOR CO.
