Fuel Line And Vapor Line: Components

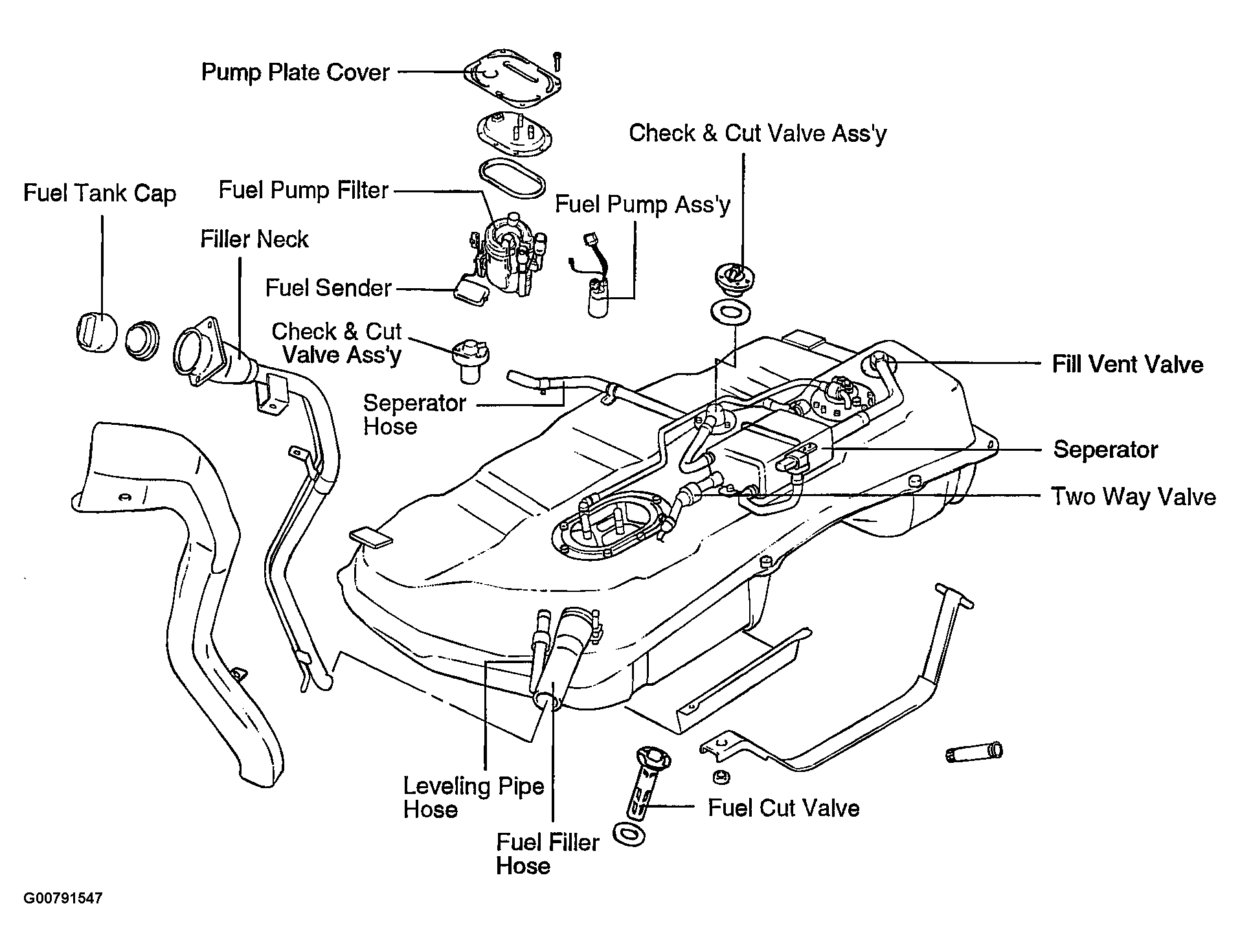

Fig 1: Fuel Line & Vapor Line Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
