DTC P0121: Throttle Position Sensor Circuit Range/Performance Problem: DTC Detecting Condition

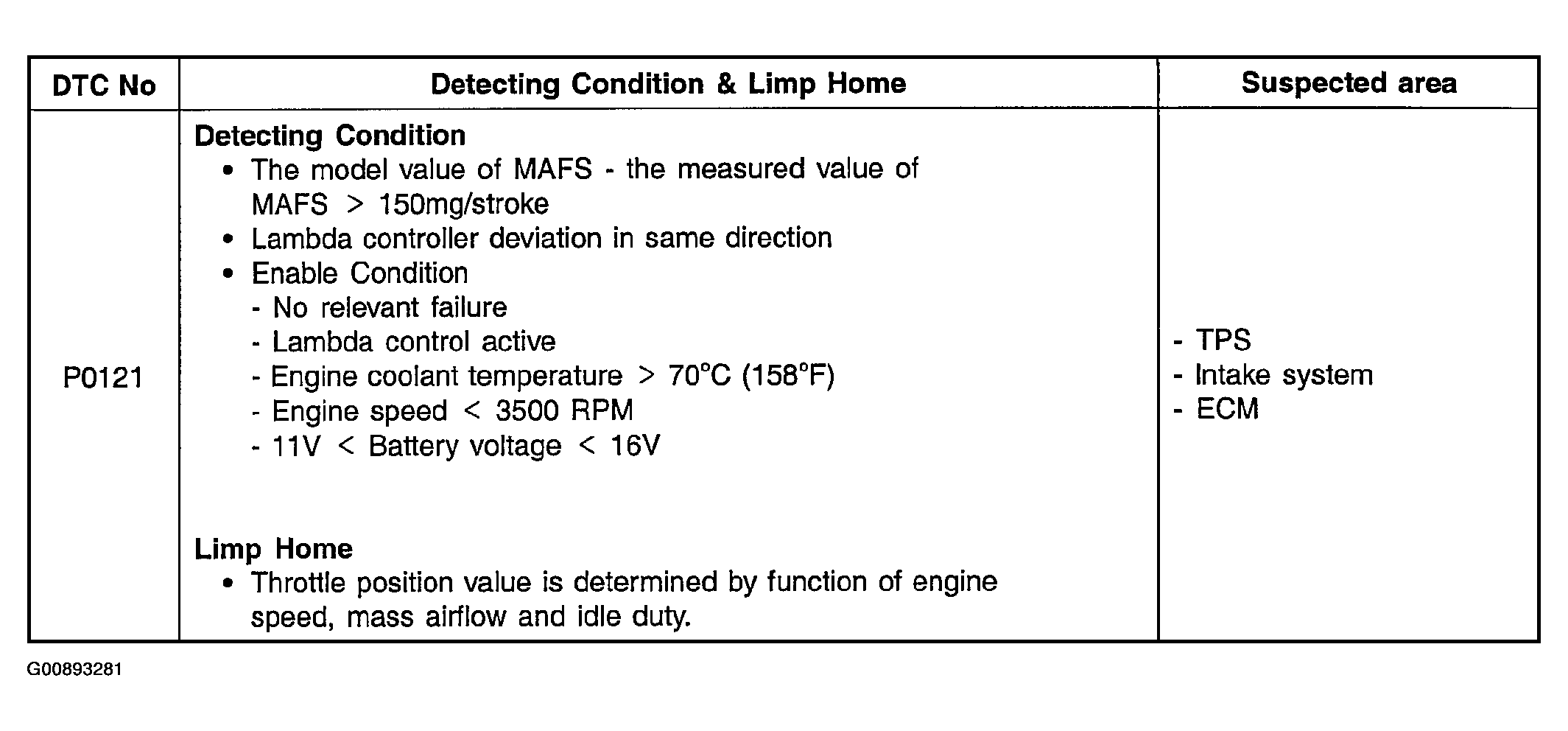

Fig 1: DTC Detecting Condition
G00893281Courtesy of HYUNDAI MOTOR CO.
