Throttle Body: Removal

CAUTION: The throttle valve must not be removed.

Remove the throttle position sensor.

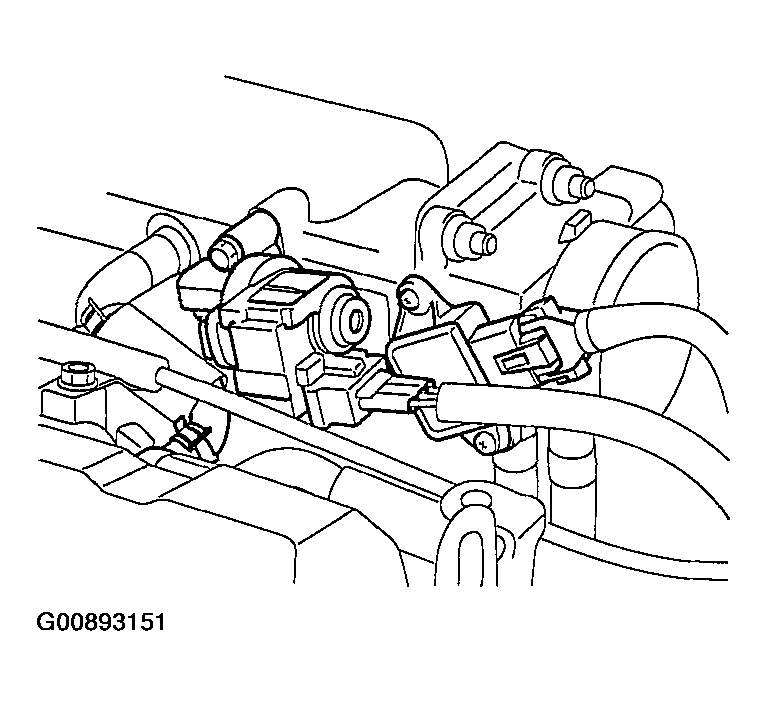

Fig 1: Removing Throttle Position Sensor
G00893151Courtesy of HYUNDAI MOTOR CO.
NOTE: Except when necessary for replacement, the throttle position sensor must not be removed.
