Location Of MFI Components

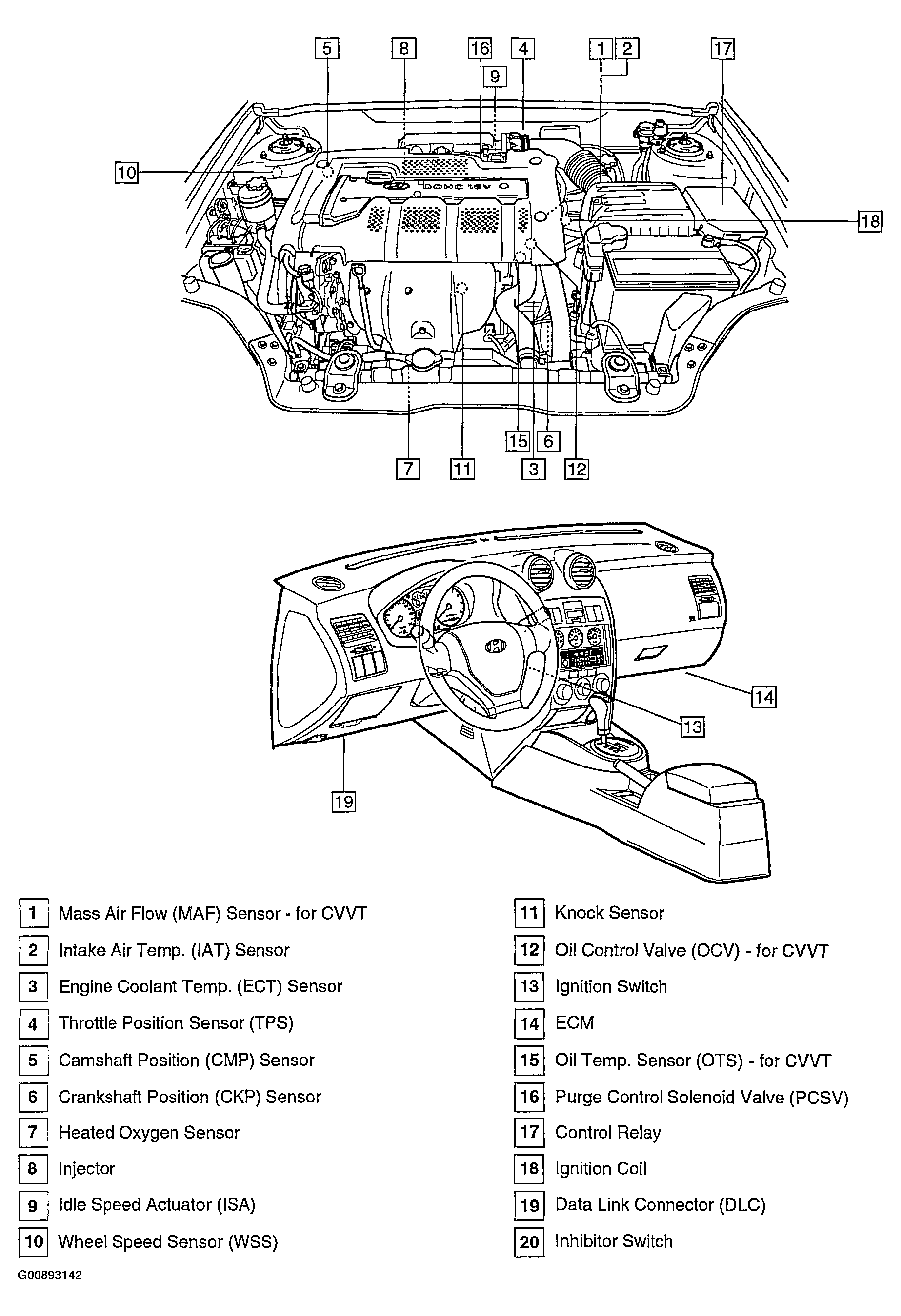

Fig 1: Locating MFI Components (1 Of 3)
G00893142Courtesy of HYUNDAI MOTOR CO.

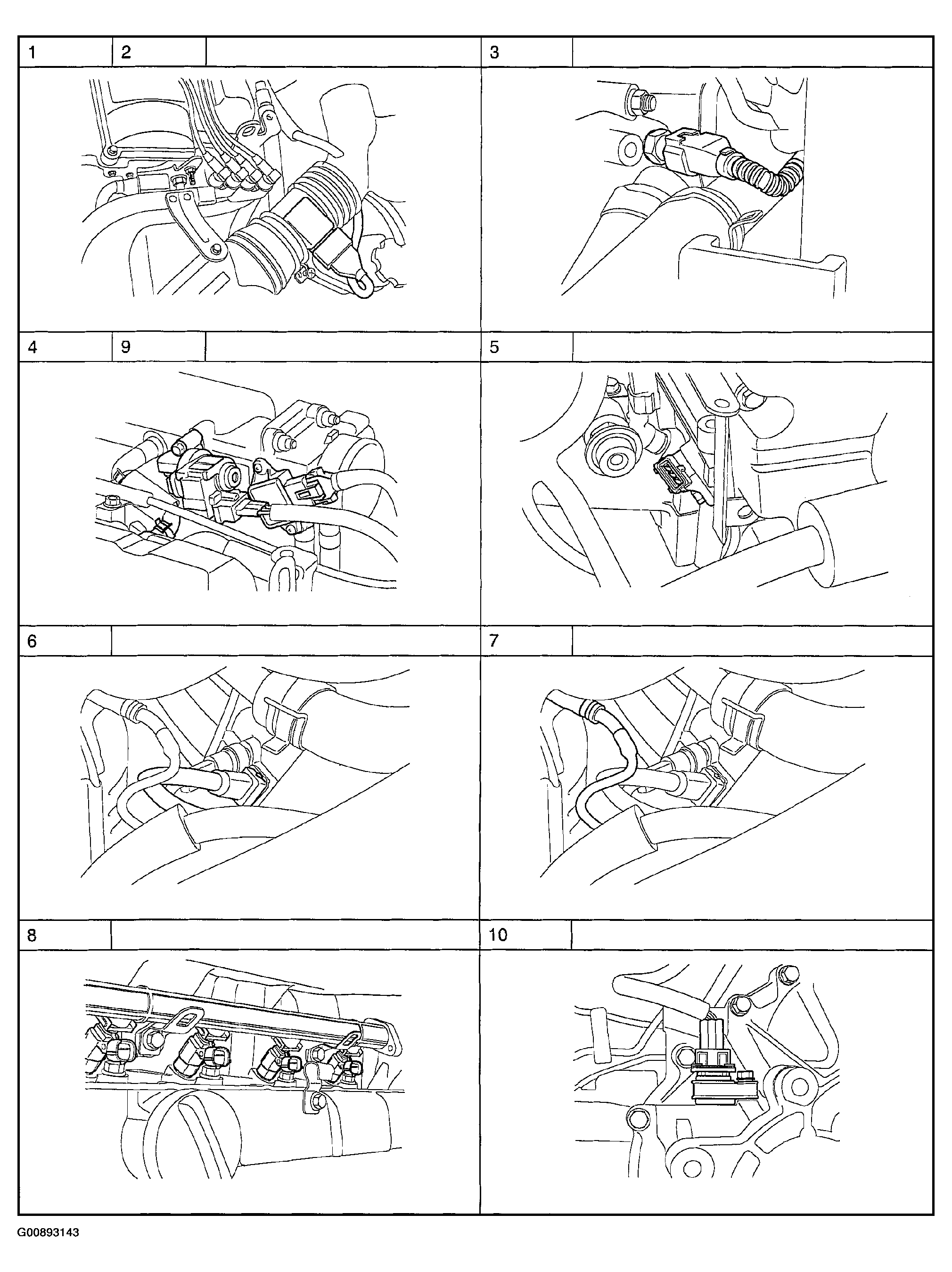

Fig 2: Locating MFI Components (2 Of 3)
G00893143Courtesy of HYUNDAI MOTOR CO.

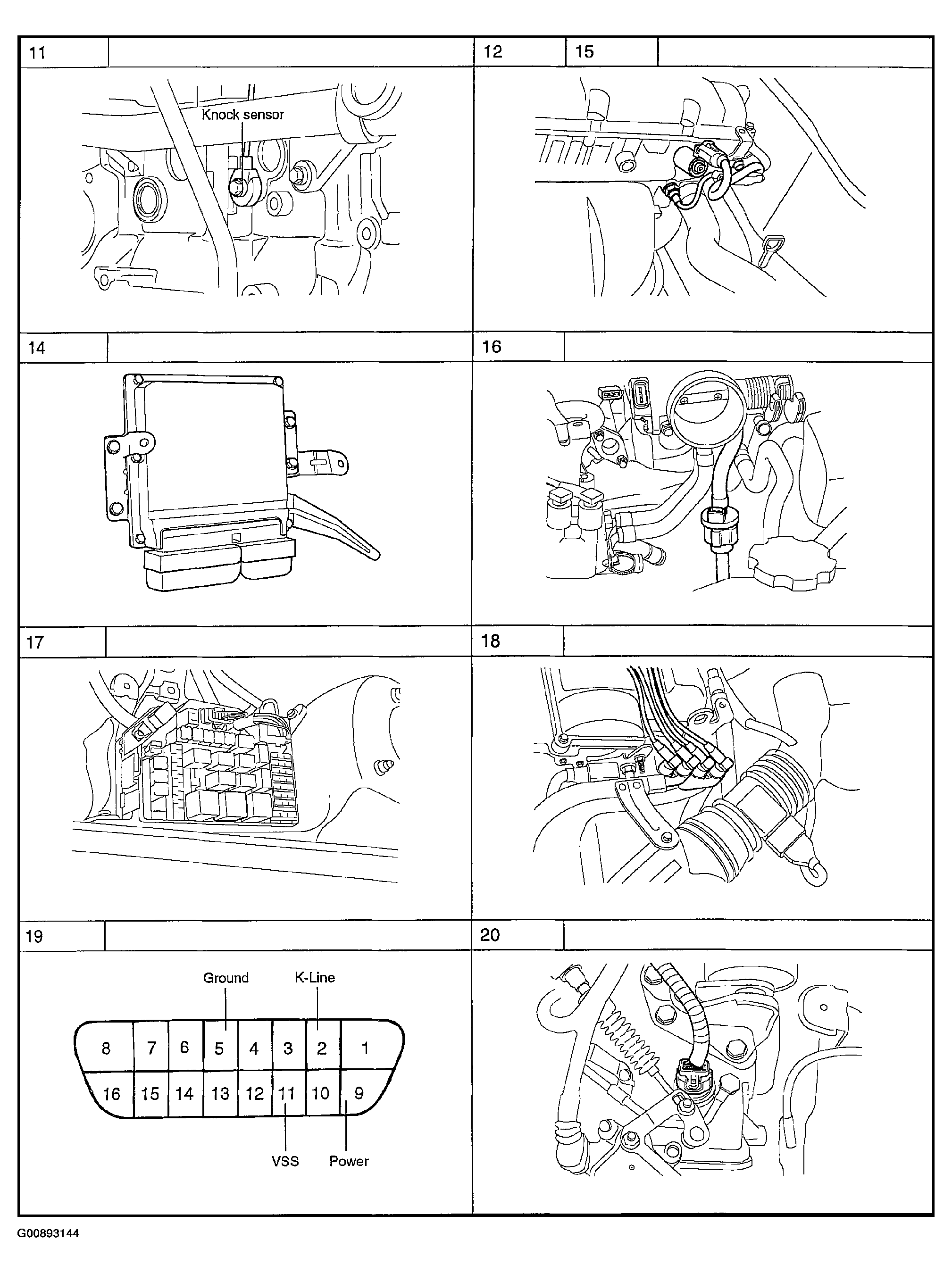

Fig 3: Locating MFI Components (3 Of 3)
G00893144Courtesy of HYUNDAI MOTOR CO.
