Transaxle Range Switch And Control Cable Adjustment

1. Set the selector lever to the "N" position.
2. Loosen the control cable to the manual control lever coupling nut to free the cable and lever.
3. Set the manual control lever to the neutral position.

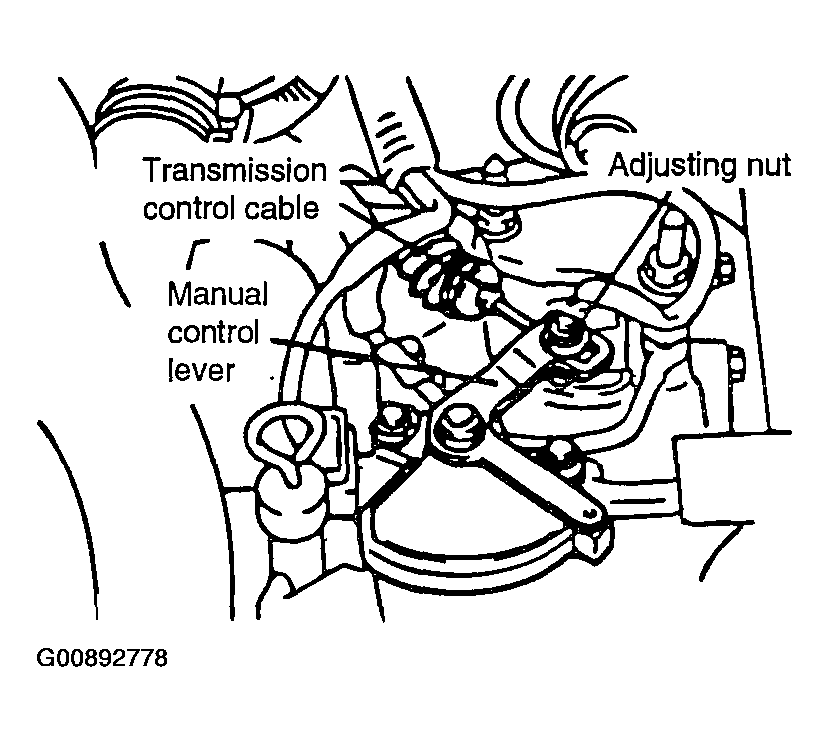

   Fig 1: Locating Transaxle Range Switch Components

   Courtesy of HYUNDAI MOTOR CO.
4. Loosen the transaxle range switch body mounting bolts and then turn the transaxle range switch body so the hole in the end of the manual control lever and the hole (cross section A-A in the figure) in the flange of the transaxle range switch body flange are aligned.
5. Tighten the transaxle range switch body mounting bolts to the specified torque. Be careful at this time that the position of the switch body does not change.

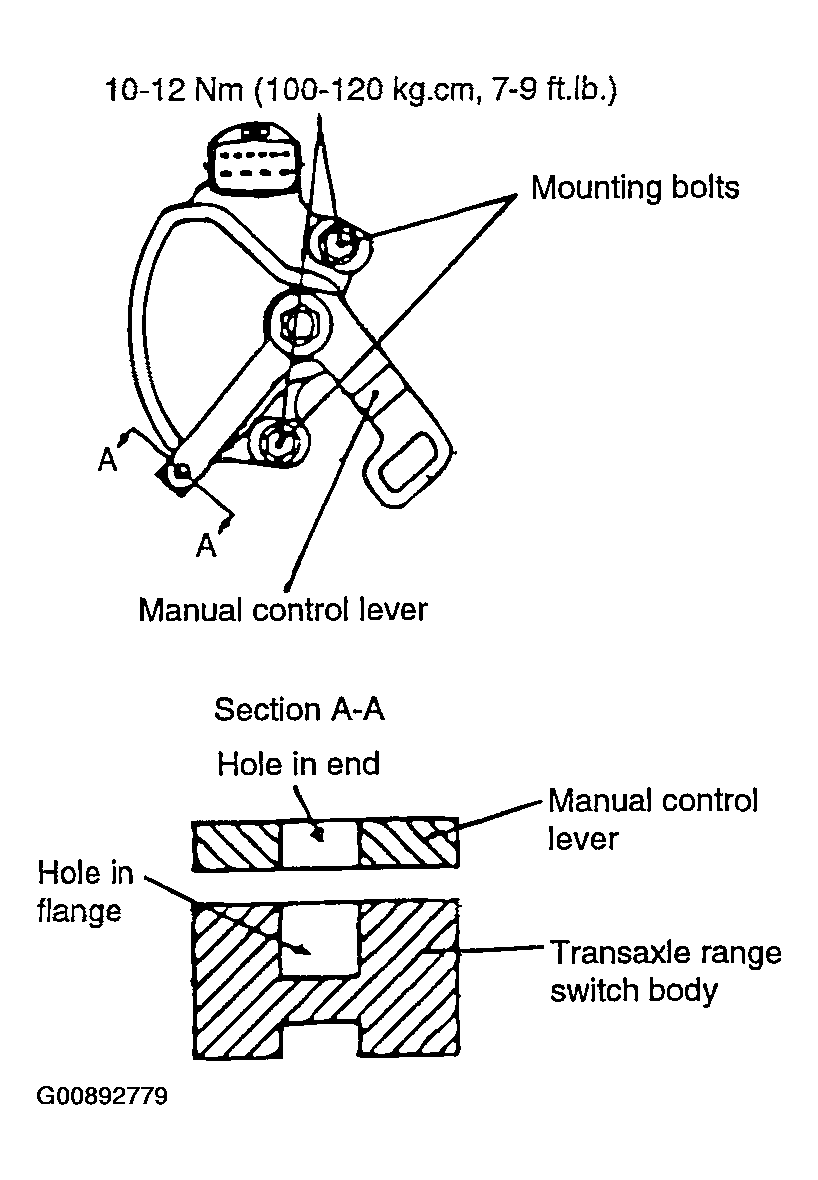

   Fig 2: Adjusting Transaxle Range Switch

   Courtesy of HYUNDAI MOTOR CO.
6. Gently pull the transaxle control cable in the direction of the arrow, then tighten the adjusting nut.
7. Check that the selector lever is in the "N" position.
8. Check that each range on the transaxle side operates and functions correctly for each position of the selector lever.

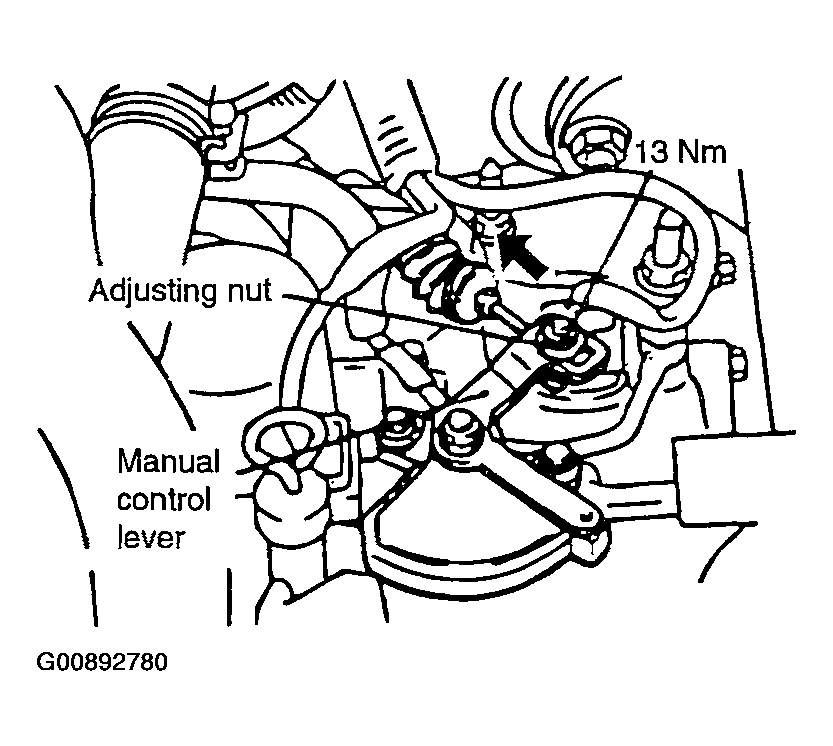

Fig 3: Locating Transaxle Range Switch Adjusting Nut

Courtesy of HYUNDAI MOTOR CO.
