Fuel Injector: Inspection

  1. Measure the resistance of the injectors between the terminals using an ohmmeter.

    Resistance: 15.9 +/- 0.35° [at 20°C (68°F)]

  2. If the resistance is not within specifications, replace the injector.

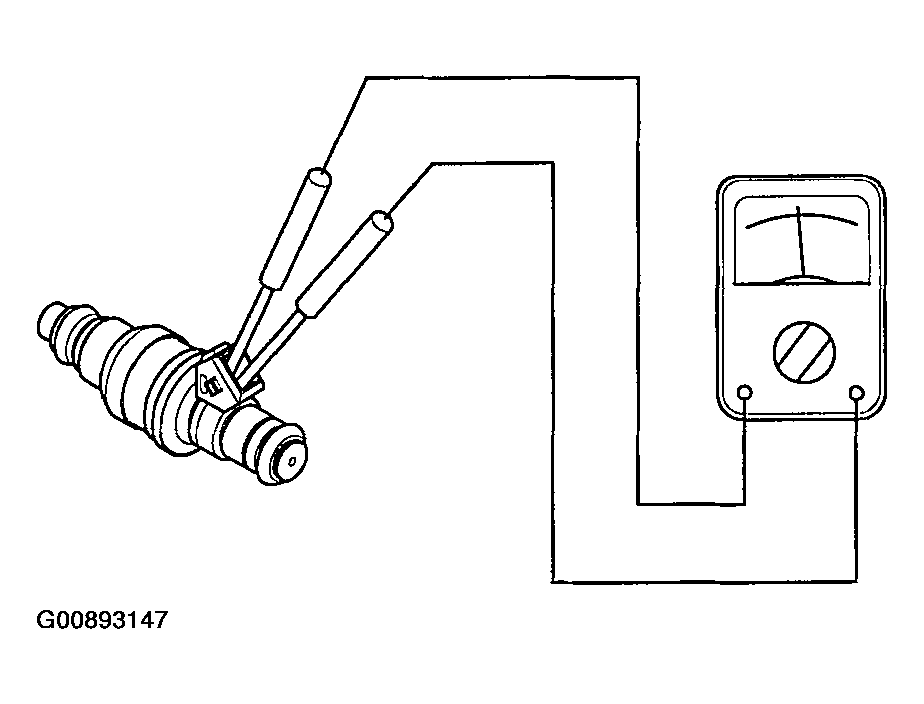

Fig 1: Measuring Resistance Of Injectors Between Terminals Using An Ohmmeter
G00893147Courtesy of HYUNDAI MOTOR CO.
