Output Pulse

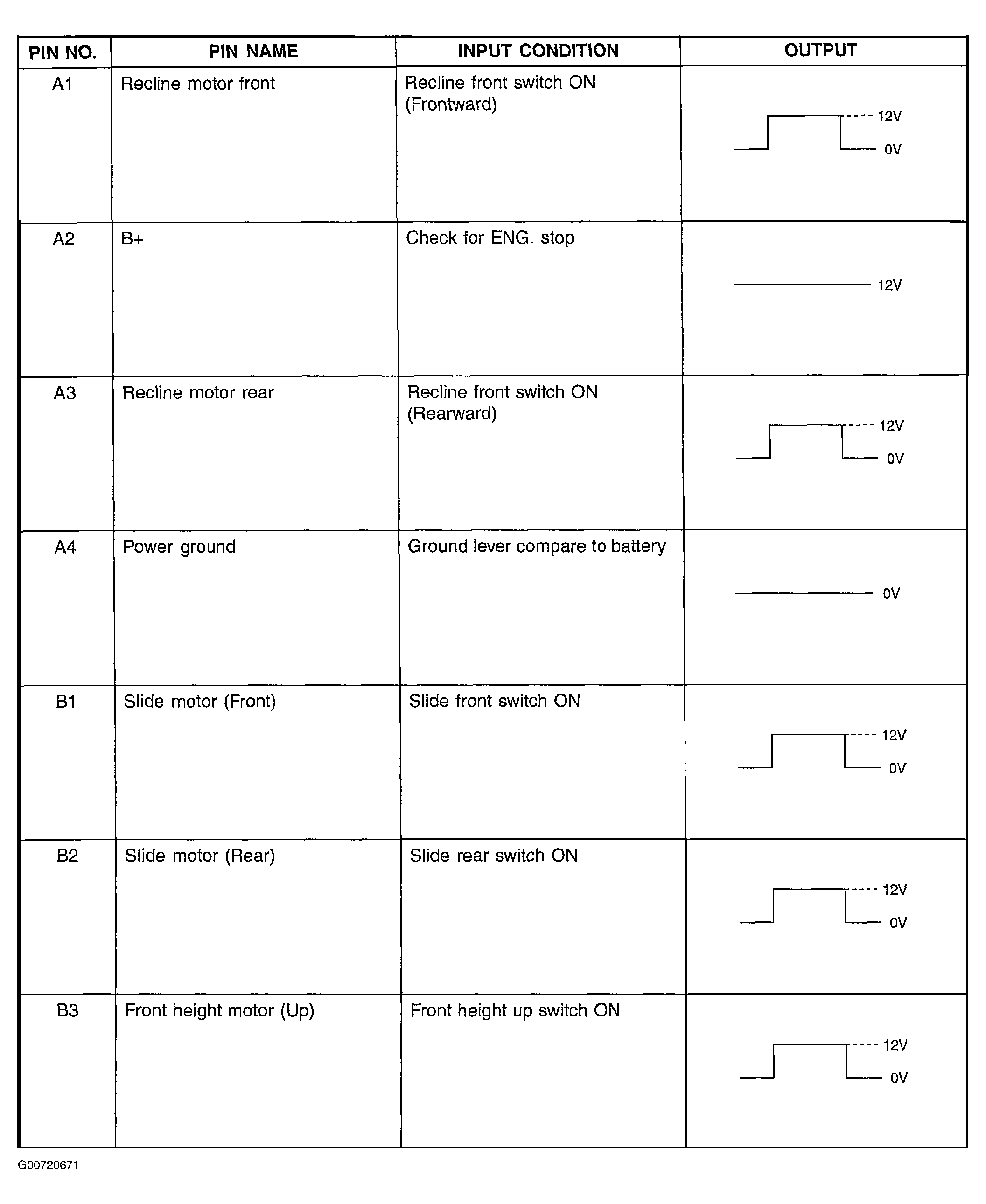

Fig 1: Output Pulse Chart (1 Of 6)

G00720671

Courtesy of HYUNDAI MOTOR CO.

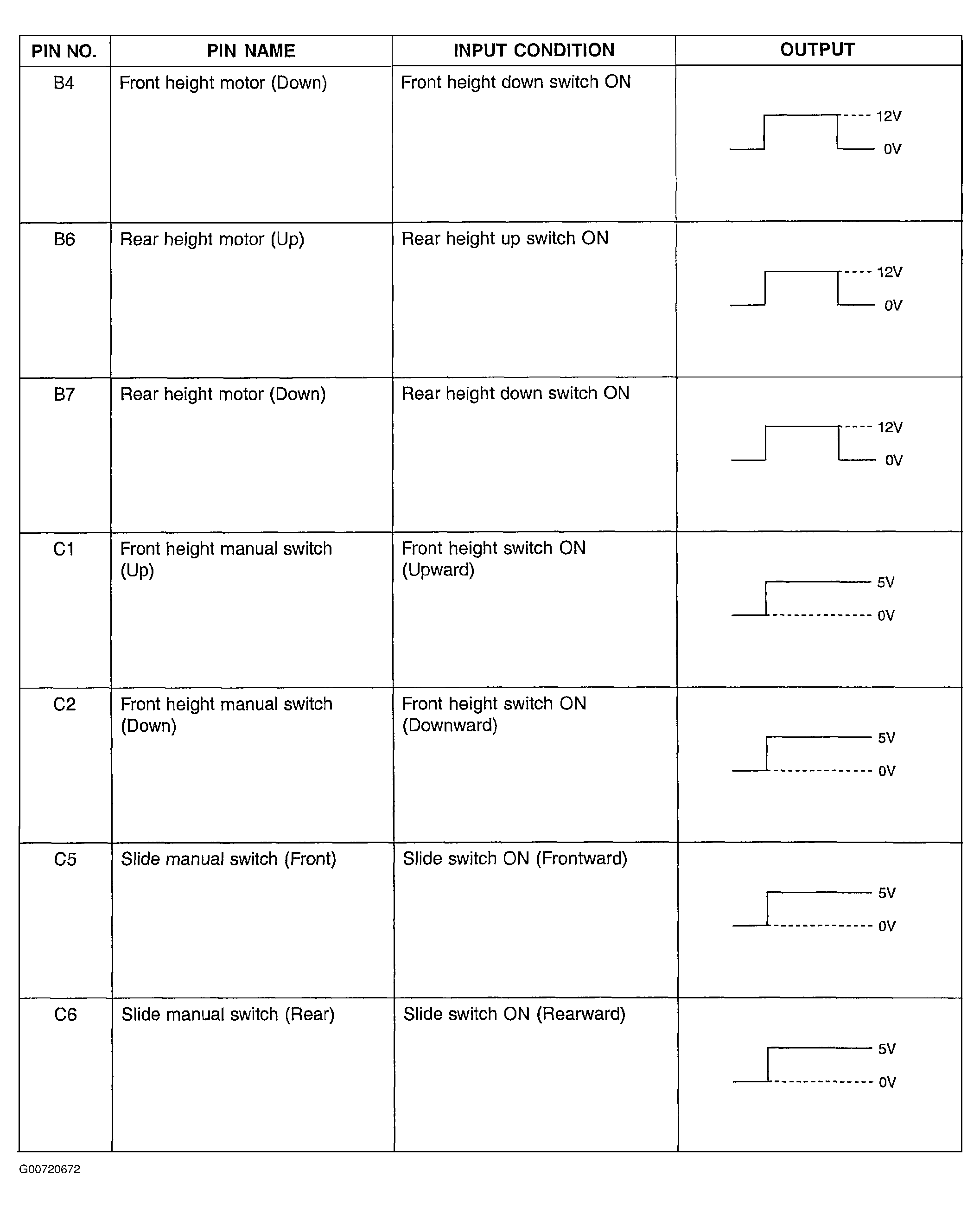

Fig 2: Output Pulse Chart (2 Of 6)

G00720672

Courtesy of HYUNDAI MOTOR CO.

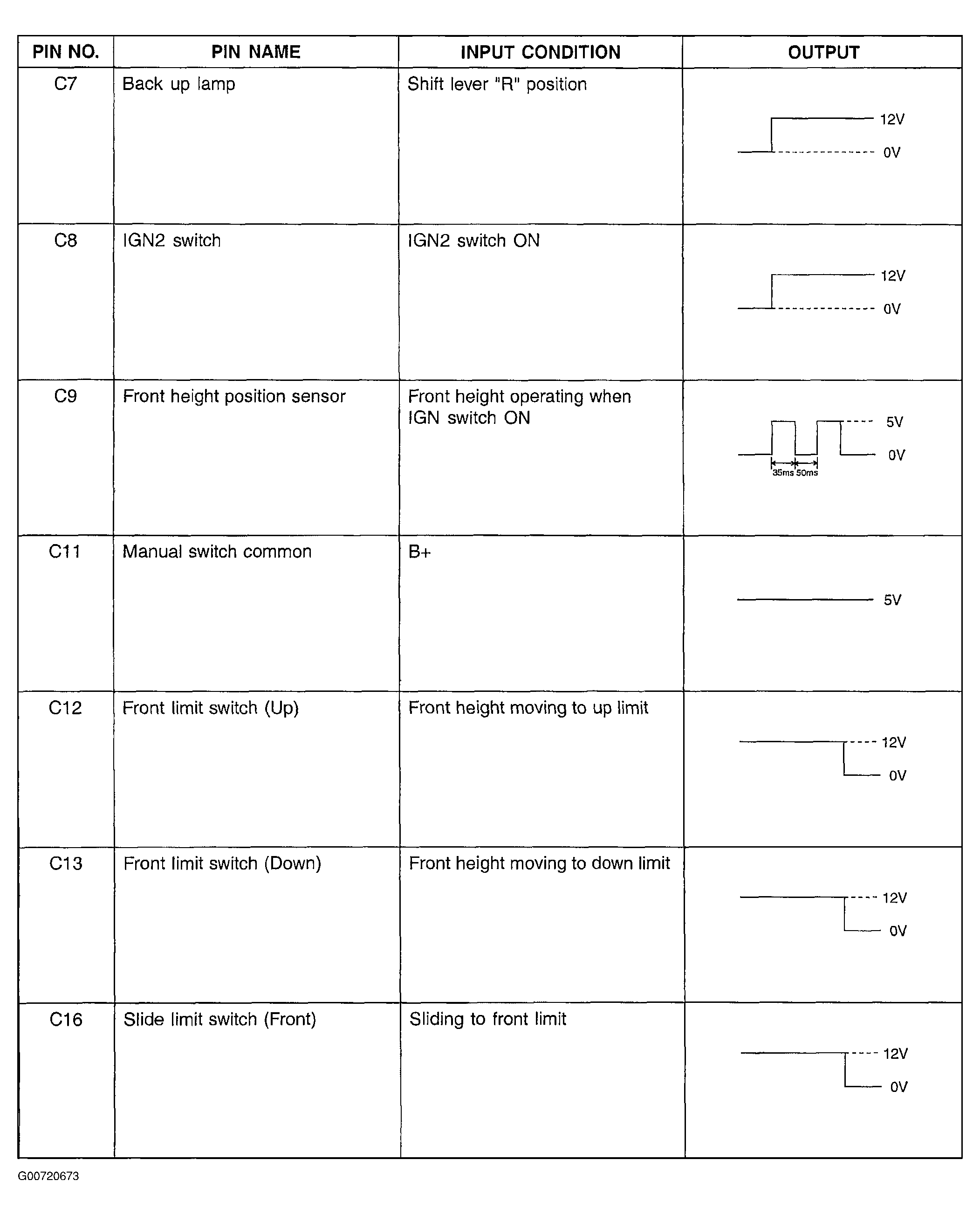

Fig 3: Output Pulse Chart (3 Of 6)

G00720673

Courtesy of HYUNDAI MOTOR CO.

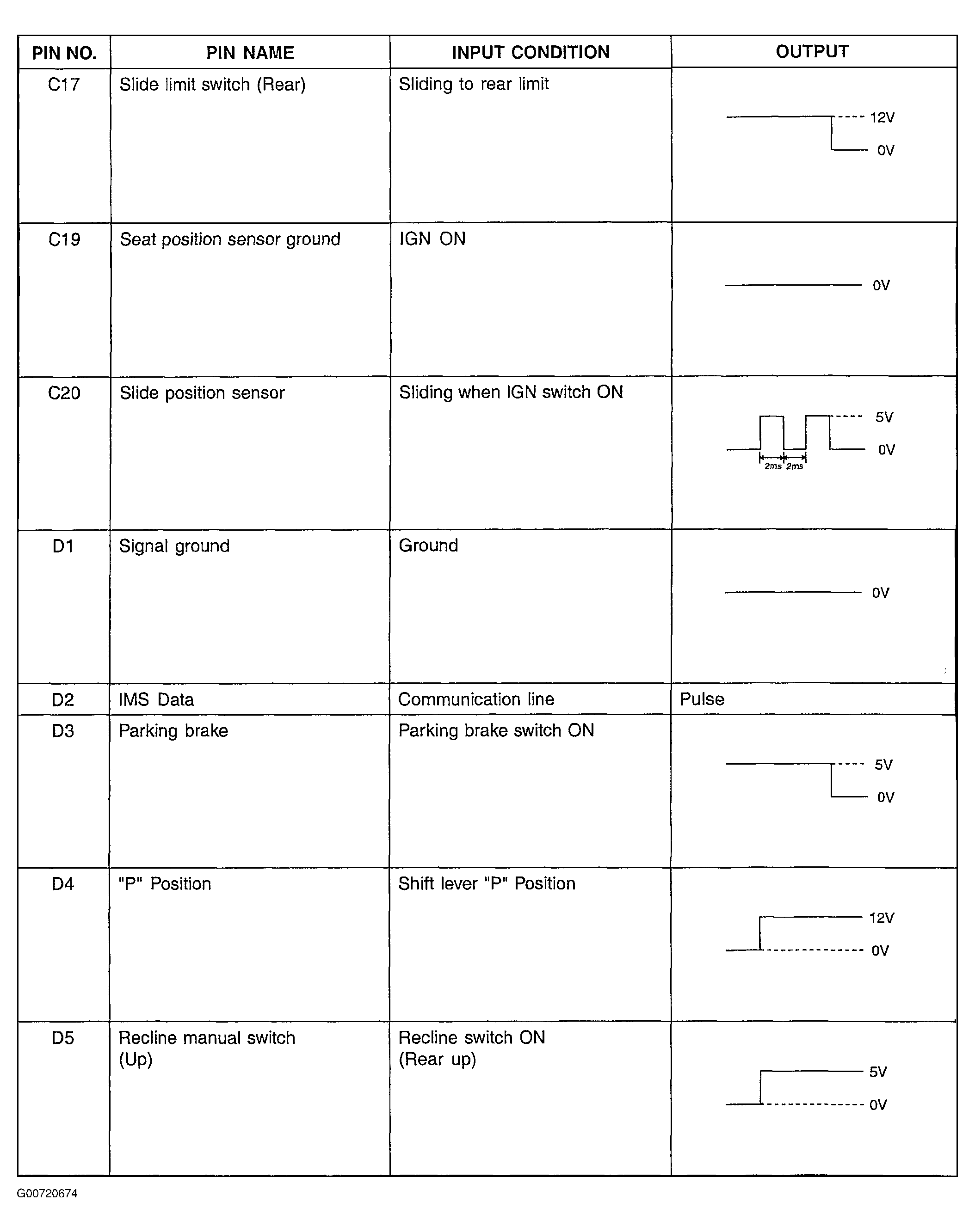

Fig 4: Output Pulse Chart (4 Of 6)

G00720674

Courtesy of HYUNDAI MOTOR CO.

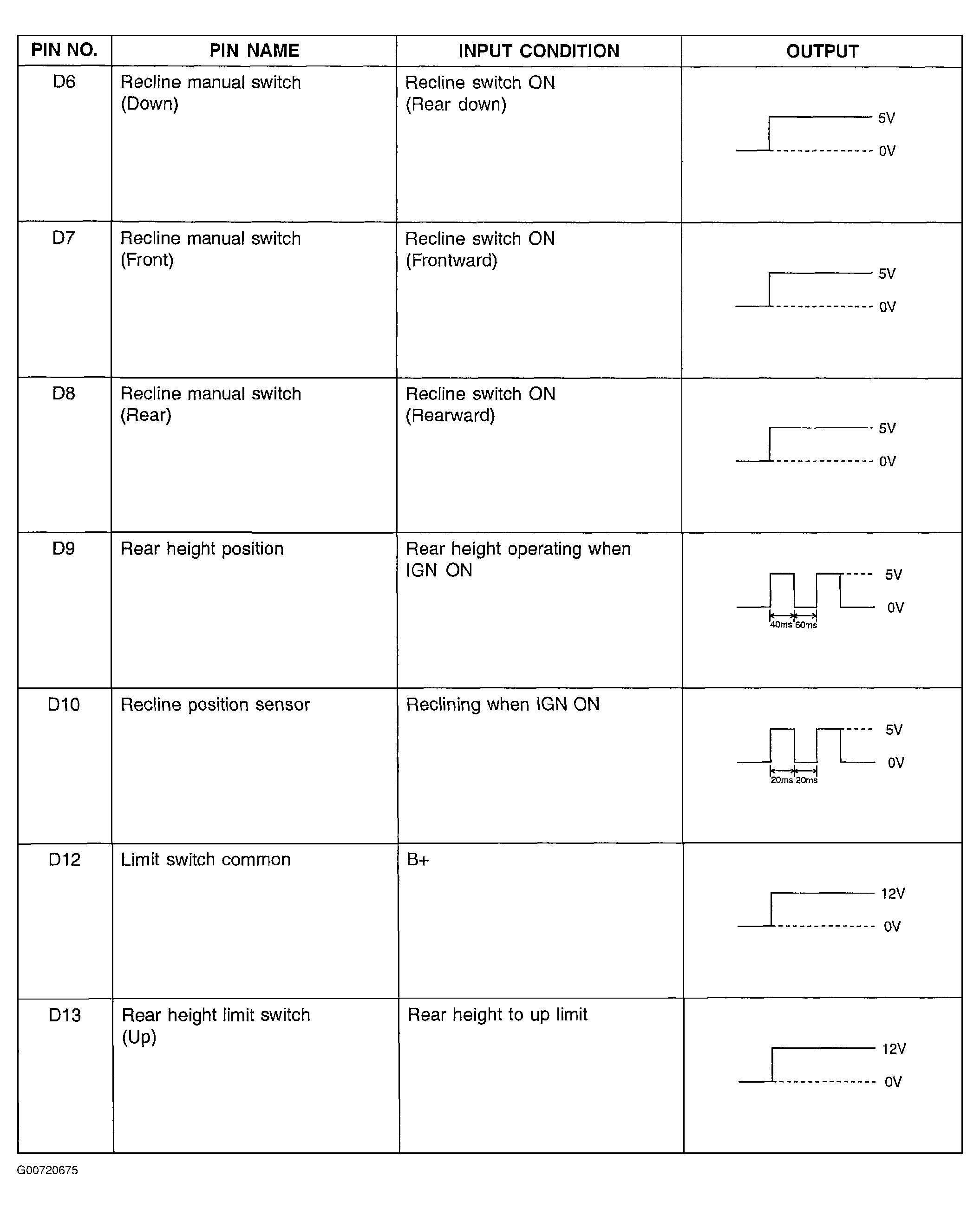

Fig 5: Output Pulse Chart (5 Of 6)

G00720675

Courtesy of HYUNDAI MOTOR CO.

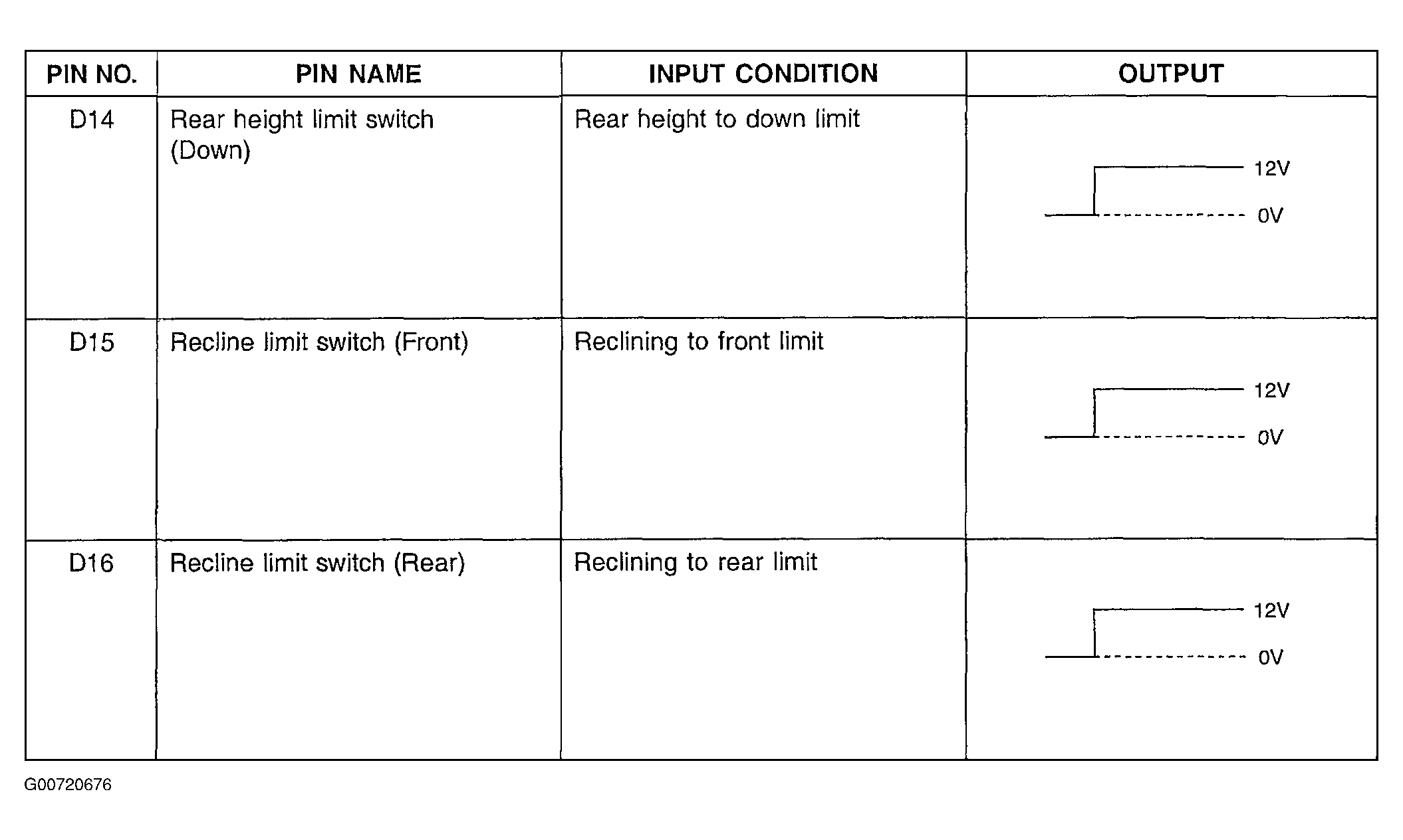

Fig 6: Output Pulse Chart (6 Of 6)

G00720676

Courtesy of HYUNDAI MOTOR CO.
