Power Window Switch: Inspection

Check that components operate according to the following timing chart.

1. Manual power window function.

   When pressing the window lock switch, all power window switches are disabled except for driver side.

   [Main]

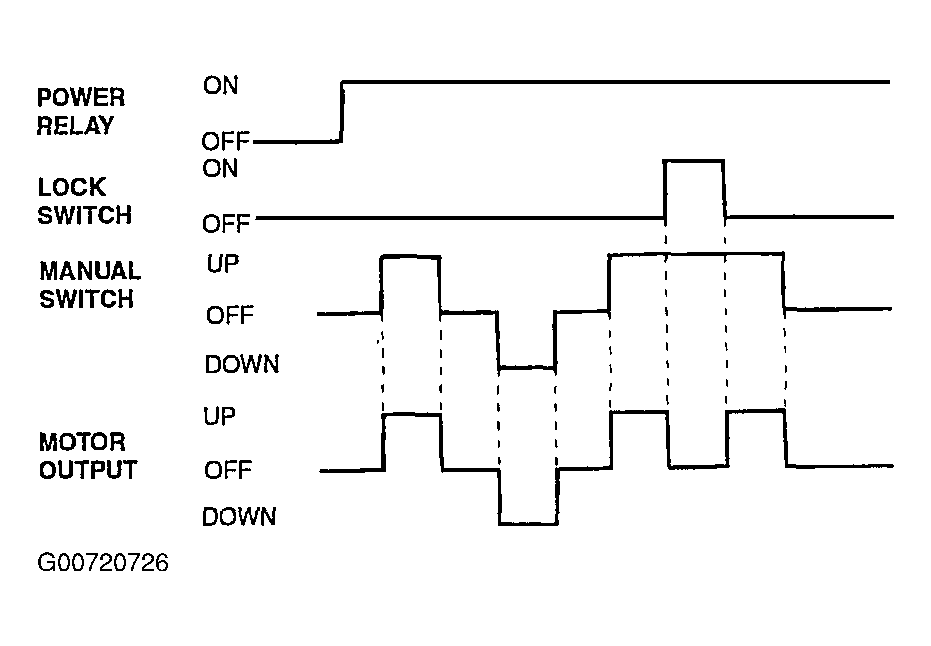

   Fig 1: Manual Power Window Function Chart (Main)

   Courtesy of HYUNDAI MOTOR CO.

   [Sub]

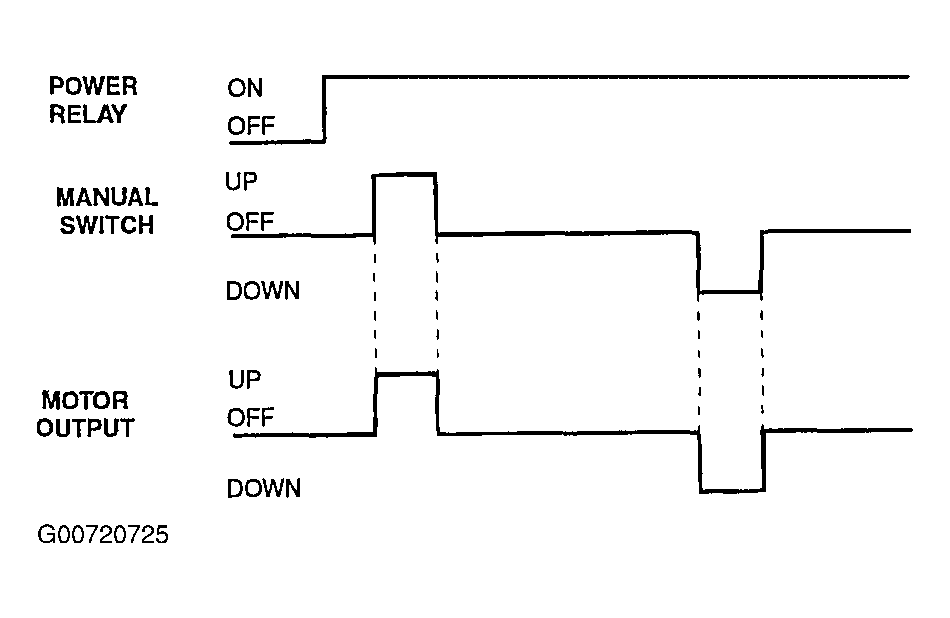

   Fig 2: Manual Power Window Function Chart (Sub)

   Courtesy of HYUNDAI MOTOR CO.
2. Auto power window function
   1. T1: 0.7 +/- 0.2 sec.
   2. T2: 10 +/- 2 sec.

   When the battery is connected or changed, power window is initialized. Initialization is when the power window is fully closed.

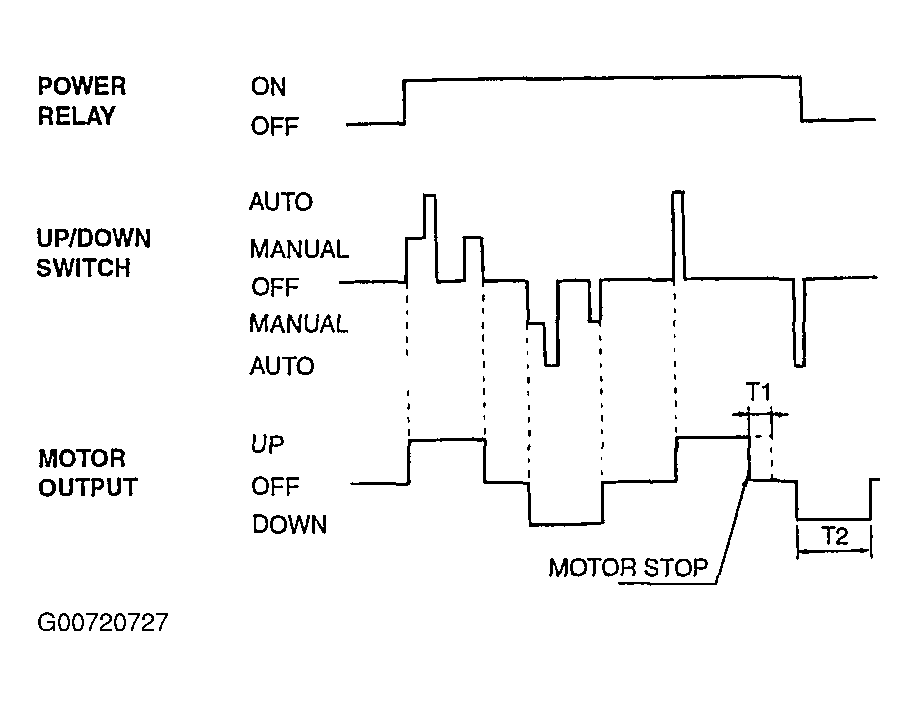

   Fig 3: Auto Power Window Function Timing Chart

   Courtesy of HYUNDAI MOTOR CO.
3. Power window lock function.

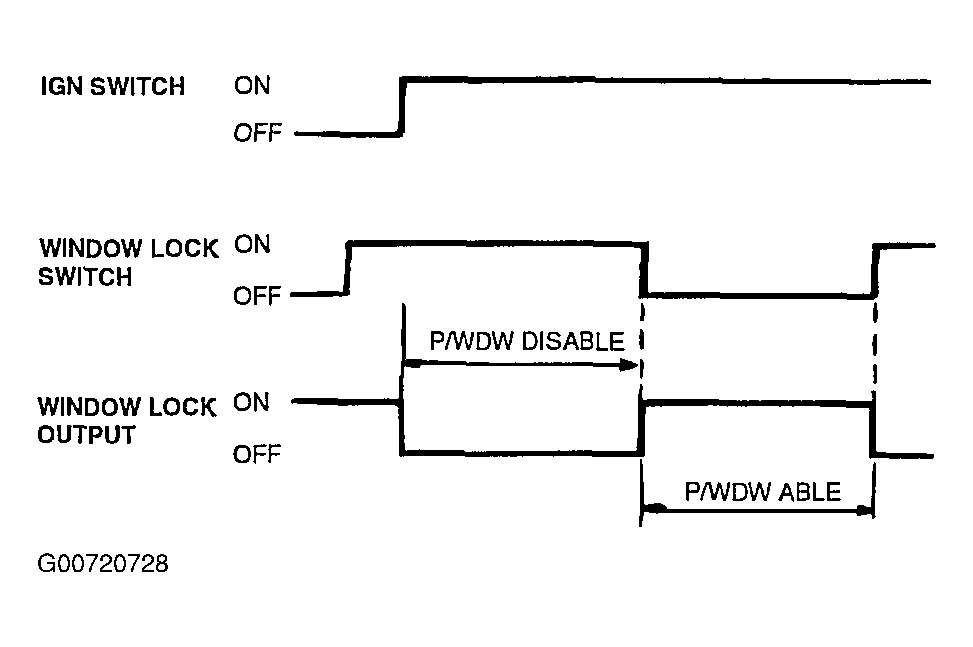

   Fig 4: Power Window Lock Function Chart

   Courtesy of HYUNDAI MOTOR CO.
4. Power window timer
   1. T1: 30 +/- 3 sec.

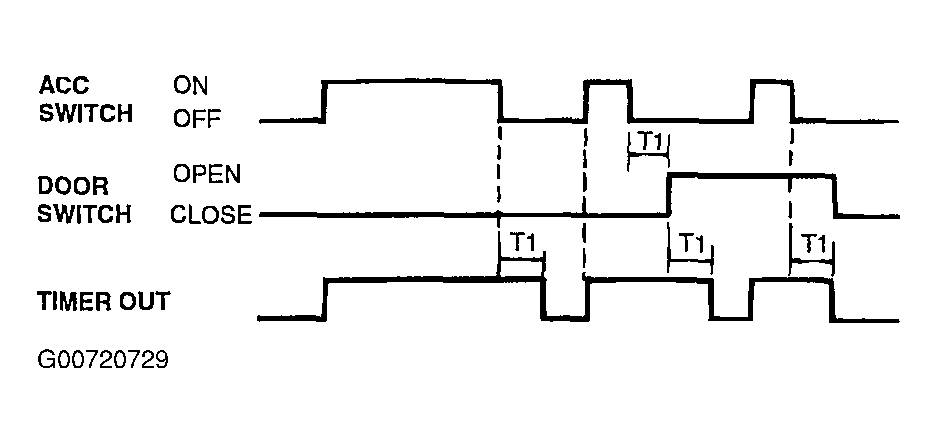

   Fig 5: Power Window Timer Timing Chart

   Courtesy of HYUNDAI MOTOR CO.
5. Central door lock function.
   1. T1: 0.3 +/- 0.1 sec.

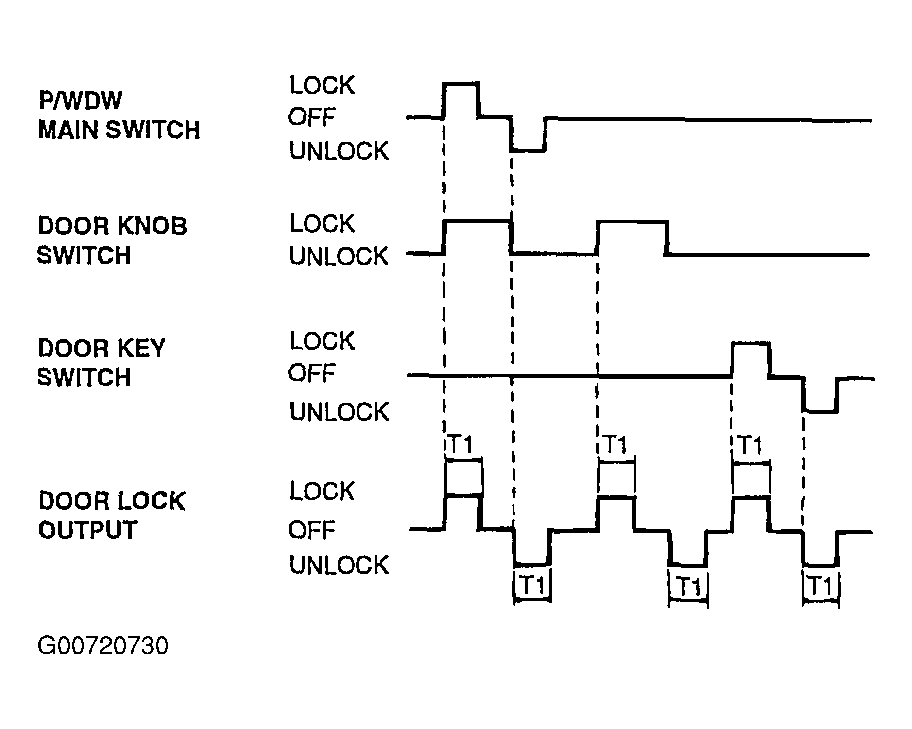

   Fig 6: Central Door Lock Function Timing Chart

   Courtesy of HYUNDAI MOTOR CO.
6. Power outside mirror control.

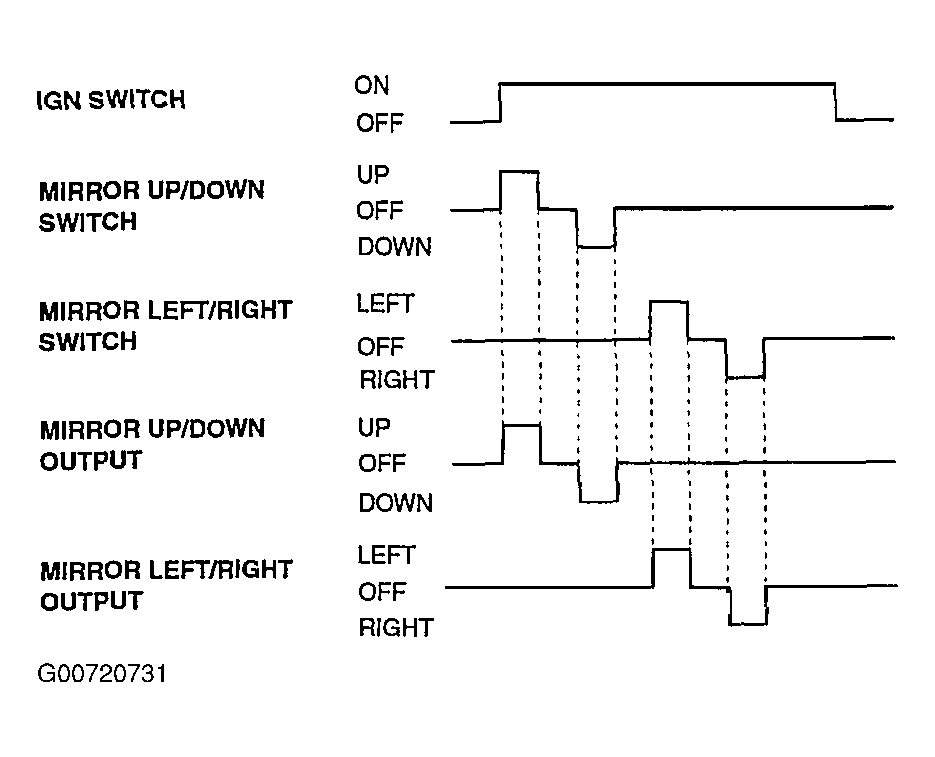

   Fig 7: Power Outside Mirror Control Chart

   Courtesy of HYUNDAI MOTOR CO.
