Bench Testing: Rotor

  1. Check Rotor Coil For Continuity  - Check to make sure that there is continuity between the slip rings. See Fig 1 . Resistance should be 3.1 ohms. If resistance is extremely low, there is a short. If there is no continuity or if there is a short, replace generator. See GENERATOR  under REMOVAL & INSTALLATION.
  2. Check Rotor Coil For Ground  - Check to make sure that there is no continuity between the slip rings and the rotor shaft. See Fig 2 . If there is continuity, replace generator. See GENERATOR  under REMOVAL & INSTALLATION.

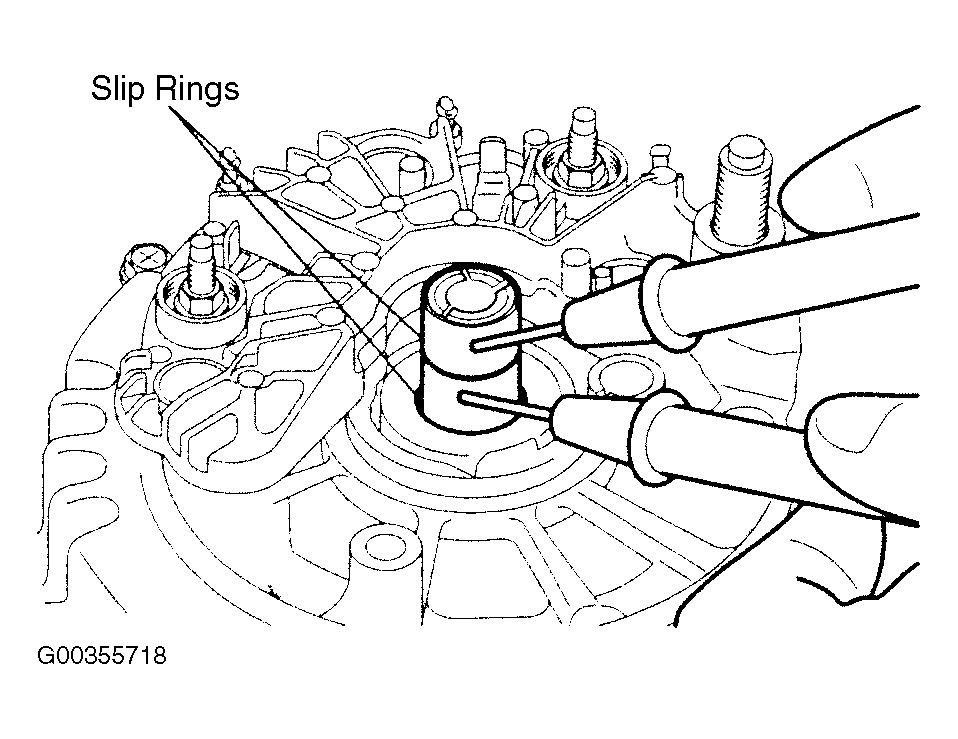

Fig 1: Checking Rotor Continuity
G00355718Courtesy of HYUNDAI MOTOR CO.

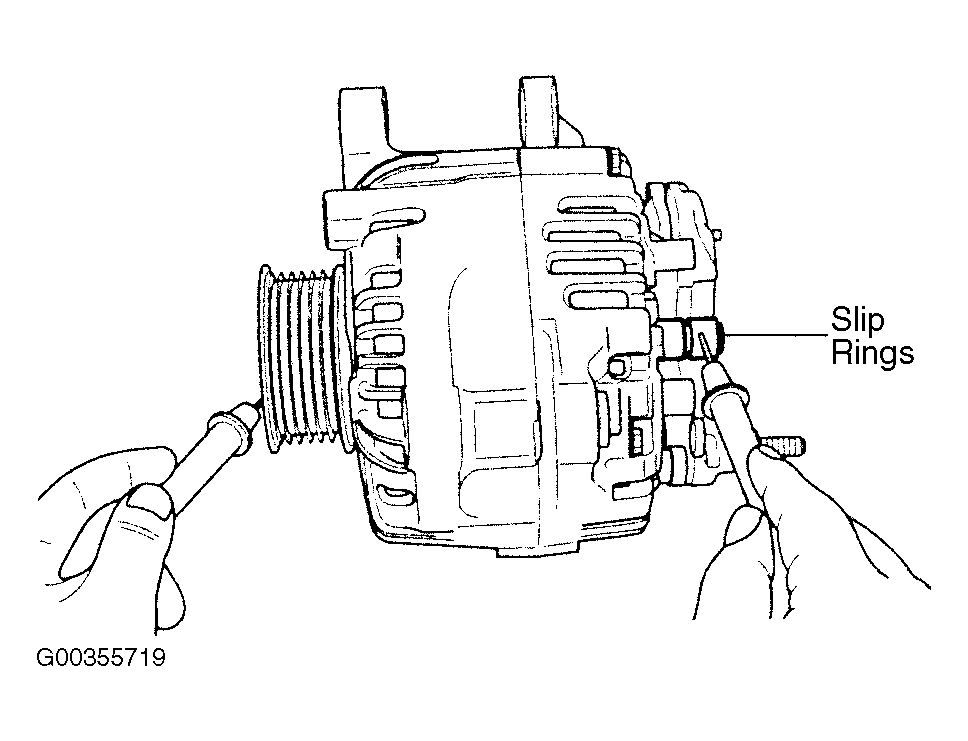

Fig 2: Checking Rotor For Ground
G00355719Courtesy of HYUNDAI MOTOR CO.
