Bench Testing: Stator

Check Stator Coil For Grounding  - Check to make sure that there is no continuity between the coil and generator housing. See Fig 1 . If there is continuity, replace the generator.

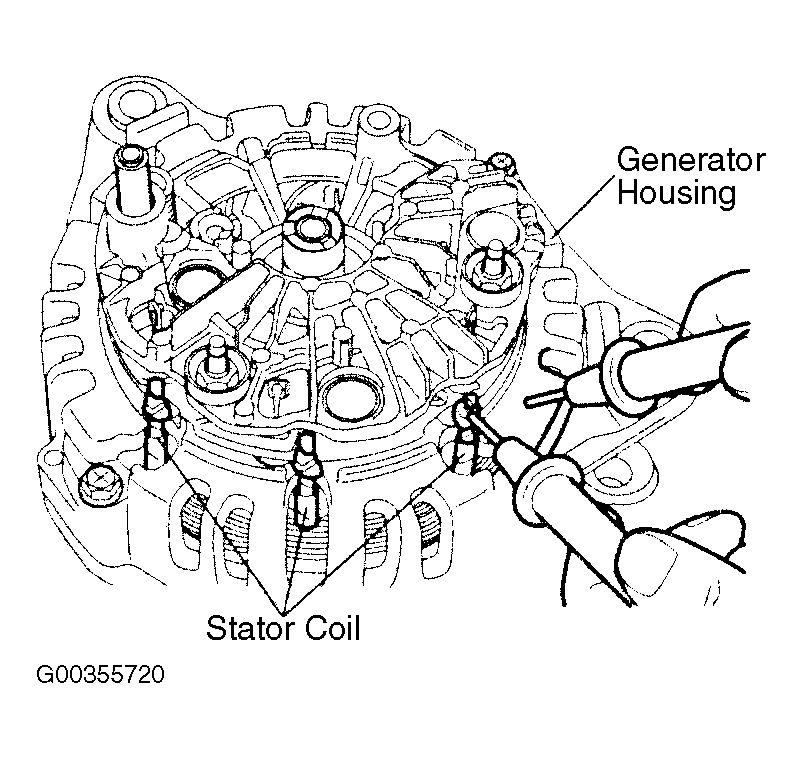

Fig 1: Checking Stator Coil

Courtesy of HYUNDAI MOTOR CO.
