Component Locations

COMPONENT LOCATIONS

Component Location
Battery Left Front Of Engine Compartment. See Fig 1 .
Engine Compartment Junction Block Left Side Of Engine Compartment, In Front Of Strut Tower. See Fig 1 .
Generator Upper, Left Front Of Engine. Fig 2 .
Passenger Compartment Junction Block Lower Left Instrument Panel. Fig 3 .
Pre-Excitation Resistor In Passenger Compartment Junction Block. See Fig 4 .

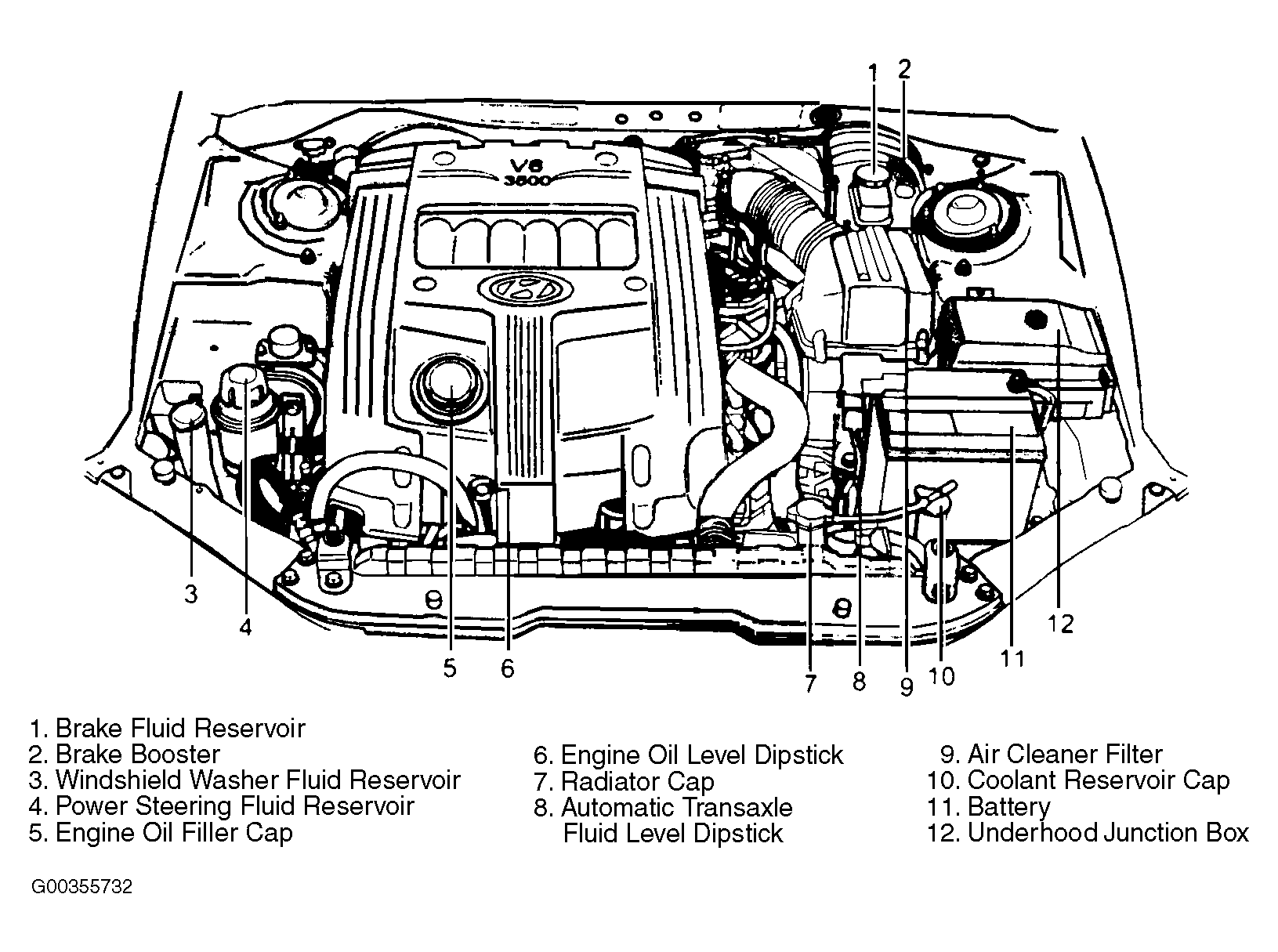

Fig 1: Locating Battery & Engine Compartment Junction Box
G00355732Courtesy of HYUNDAI MOTOR CO.

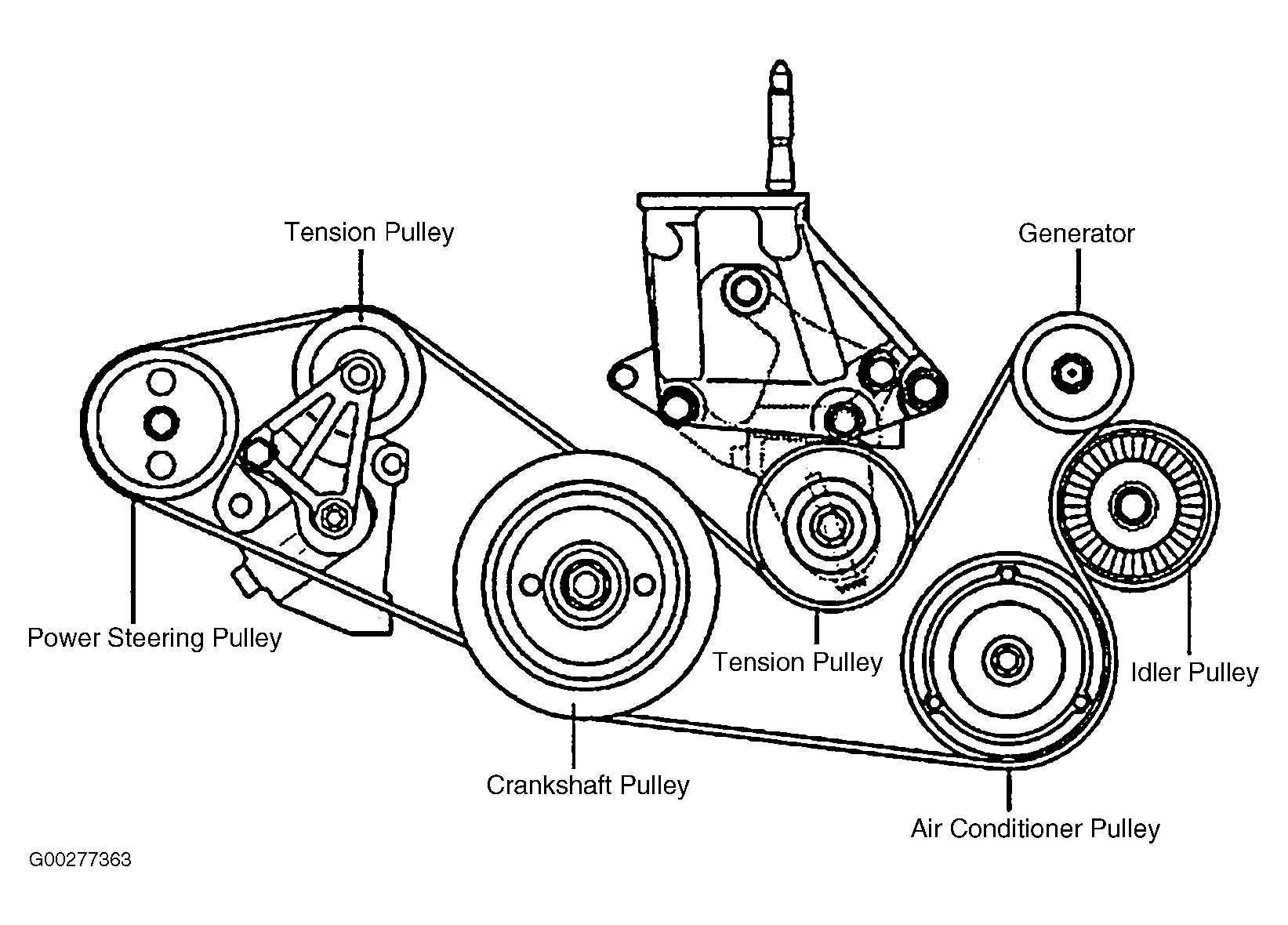

Fig 2: Locating Generator
G00277363Courtesy of HYUNDAI MOTOR CO.

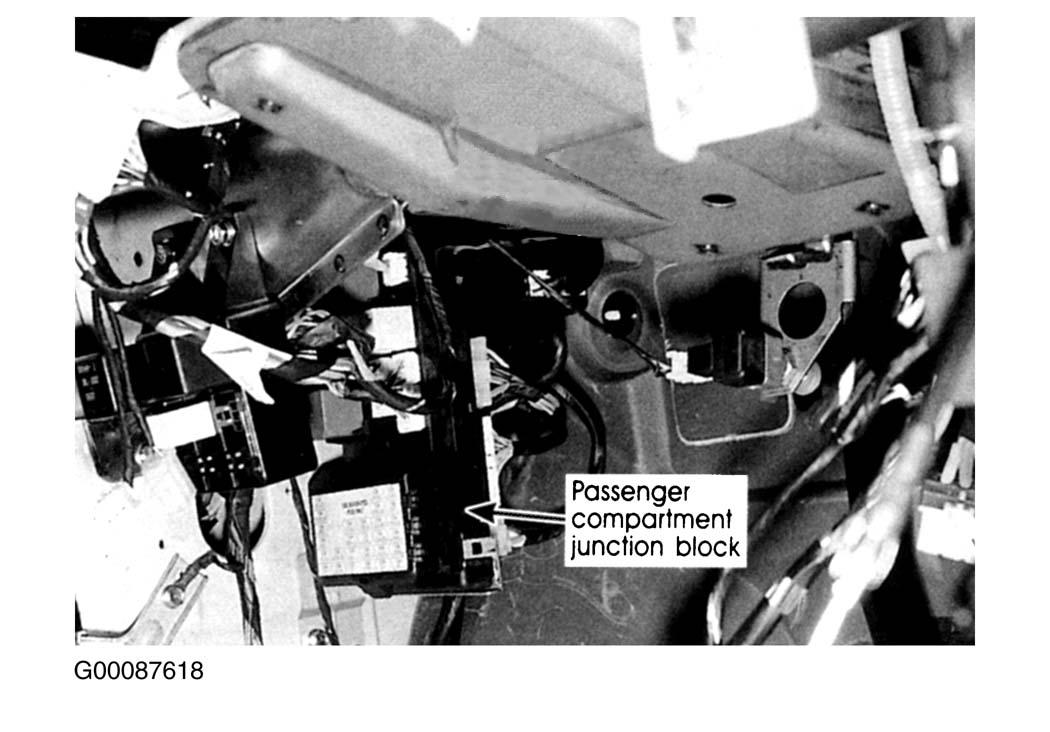

Fig 3: Locating Passenger Compartment Junction Block
G00087618Courtesy of HYUNDAI MOTOR CO.

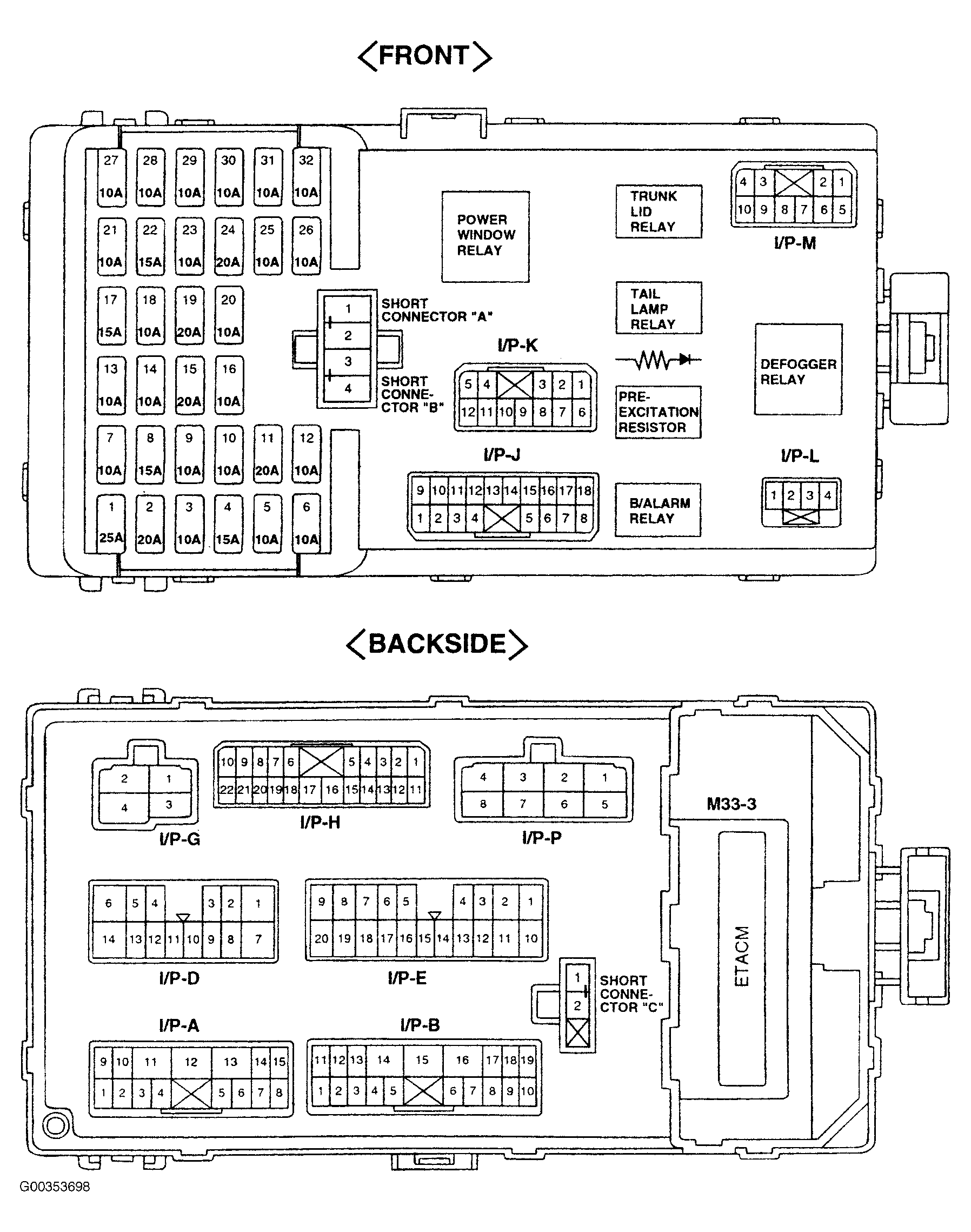

Fig 4: Locating Pre-Excitation Resistor
G00353698Courtesy of HYUNDAI MOTOR CO.
