Accelerator Pedal: Components

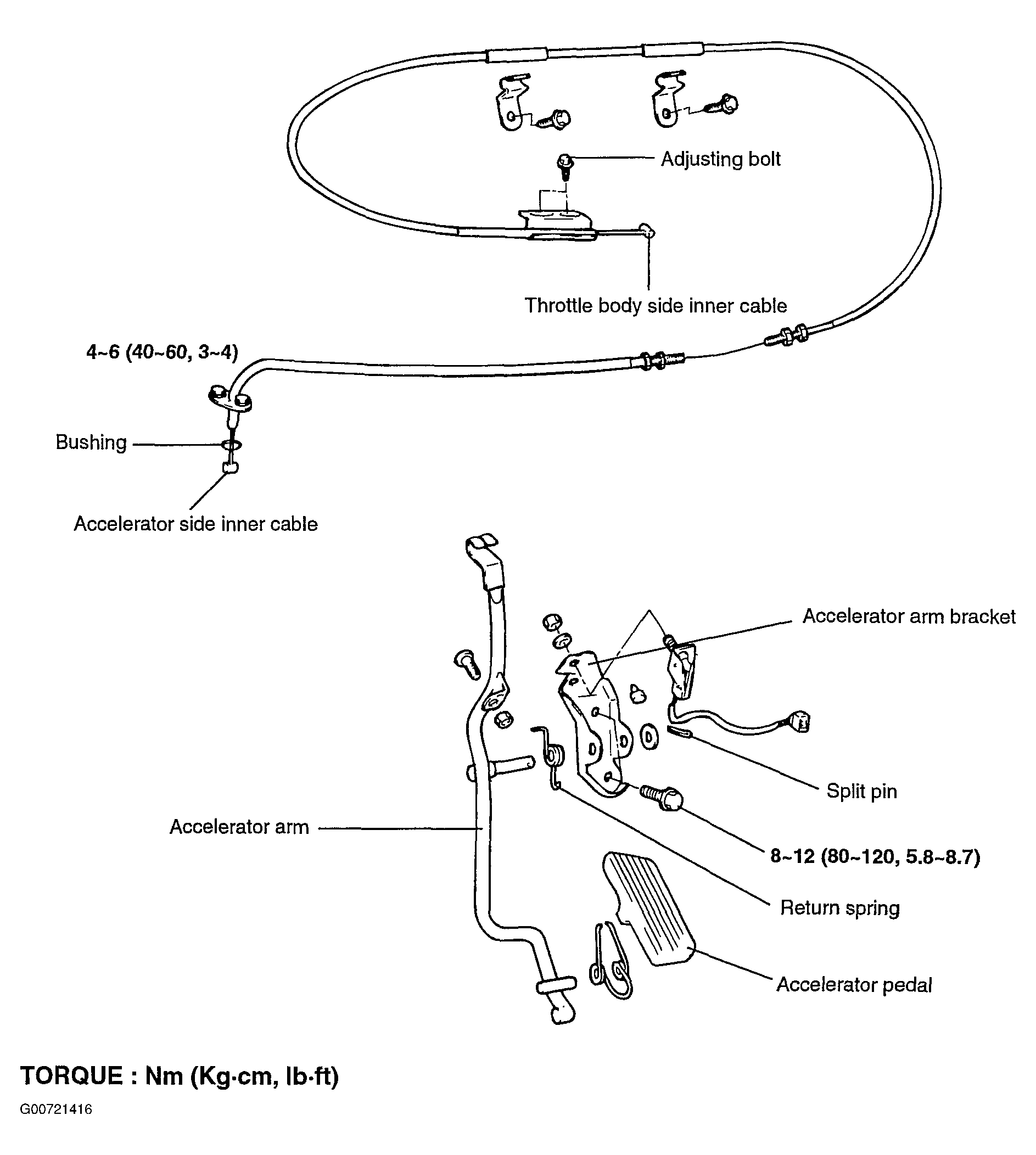

Fig 1: Identifying Accelerator Pedal Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
