Fuel Line And Vapor Line: Installation
- Install the fuel vapor hose and return hoses.

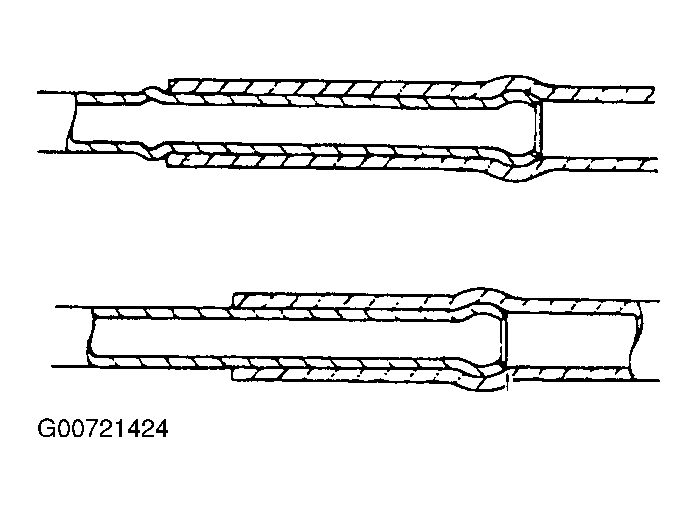

- If the fuel line has a stepped section, connect the fuel hose to the line securely, as shown in the illustration.
- If the fuel line does not have a stepped section, connect the fuel hose to the line securely.
- Install the fuel filter and tighten the fuel filter bracket.
- Tighten the two fitting nuts while holding the fuel filter nuts.
Tightening torque
Fuel filter fitting nuts:
20~40 Nm (300~400 kg.cm, 22.1~29.5 lb.ft)
- Install the clips and make sure that they do not interfere with other components.
