Harness Inspection Procedures

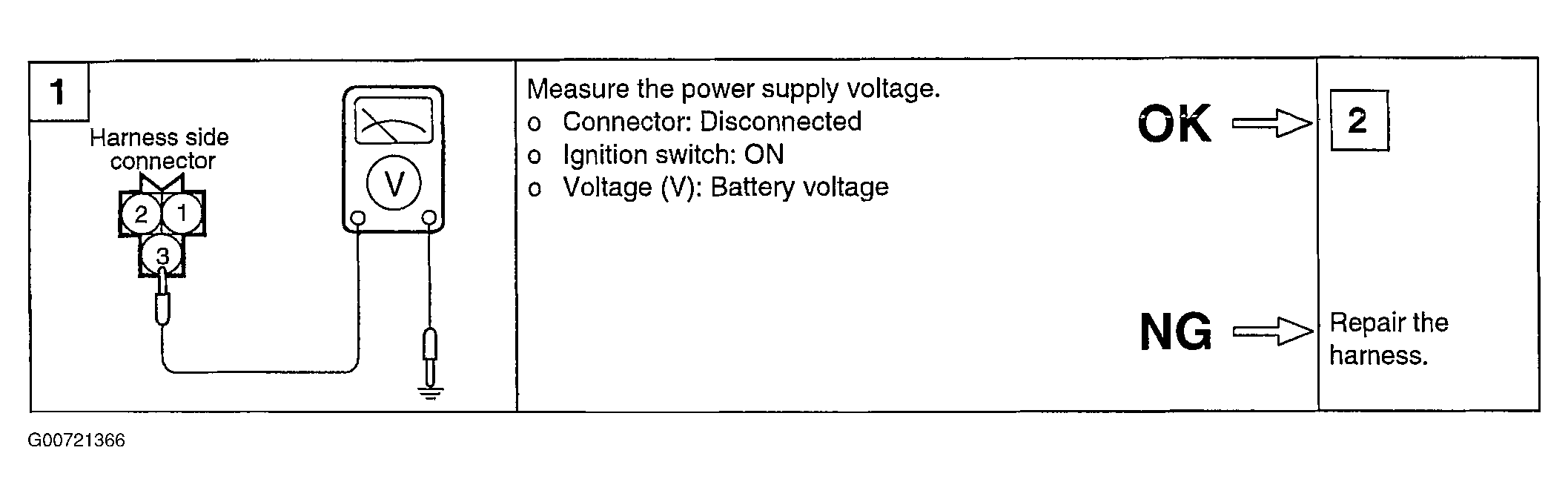

Fig 1: Checking Crankshaft Position Sensor Harness (1 Of 3)
G00721366Courtesy of HYUNDAI MOTOR CO.

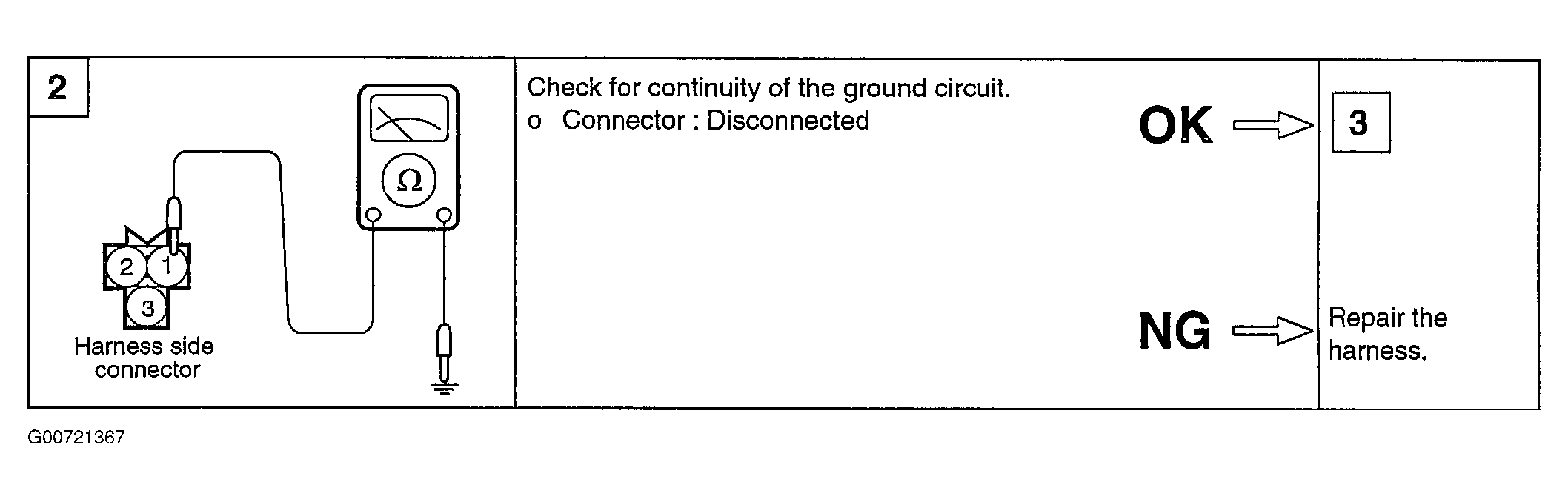

Fig 2: Checking Crankshaft Position Sensor Harness (2 Of 3)
G00721367Courtesy of HYUNDAI MOTOR CO.

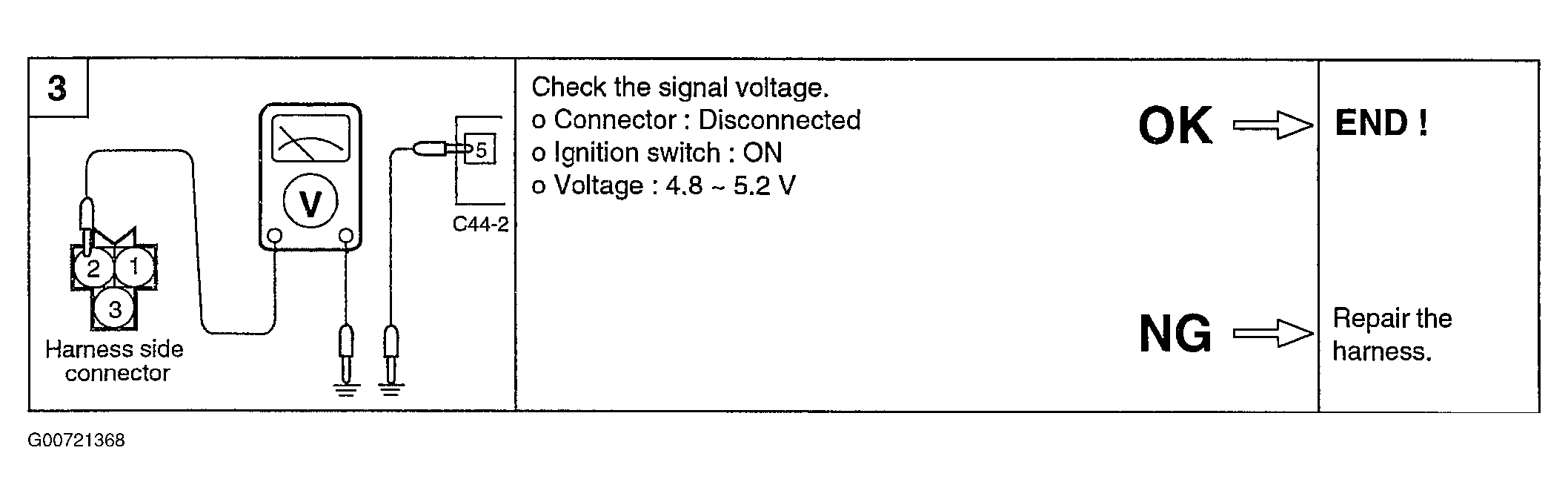

Fig 3: Checking Crankshaft Position Sensor Harness (3 Of 3)
G00721368Courtesy of HYUNDAI MOTOR CO.
