Harness Inspection Procedures

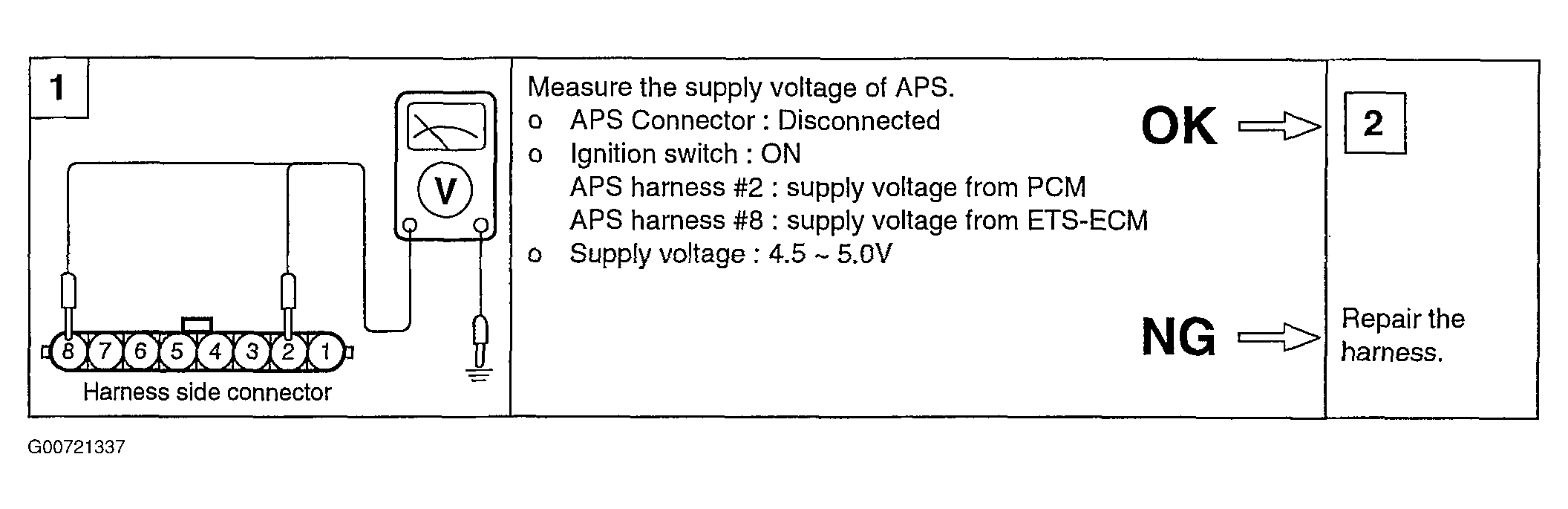

Fig 1: Checking ETS Harness (1 Of 5)

Courtesy of HYUNDAI MOTOR CO.

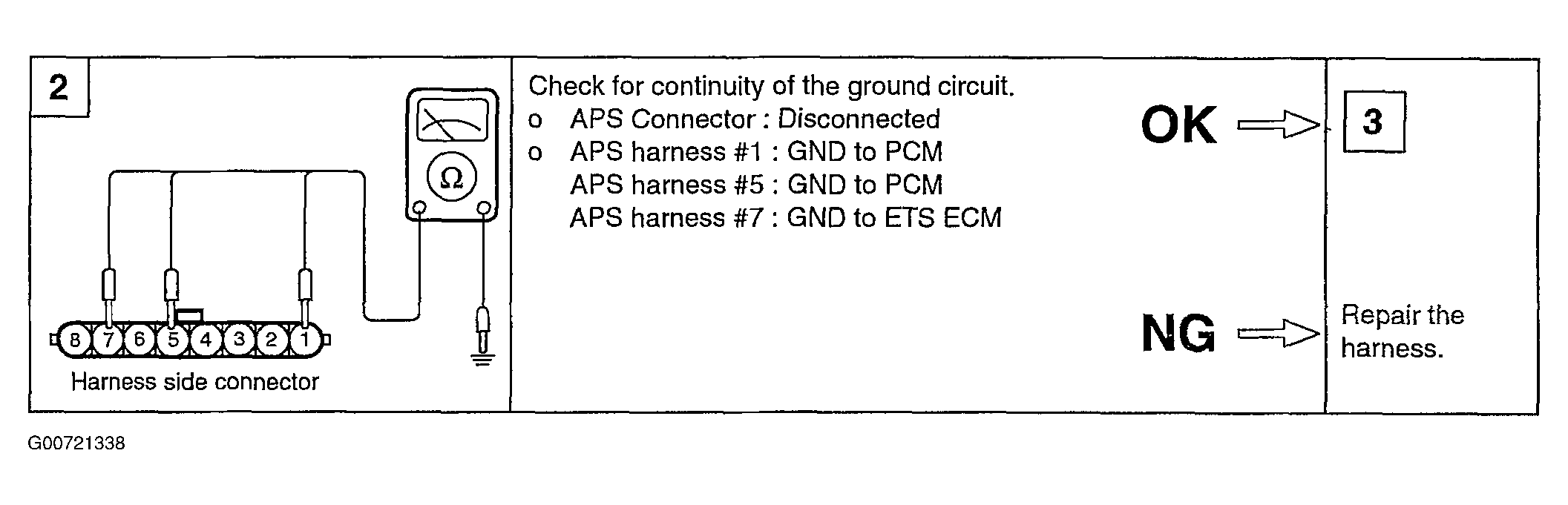

Fig 2: Checking ETS Harness (2 Of 5)

Courtesy of HYUNDAI MOTOR CO.

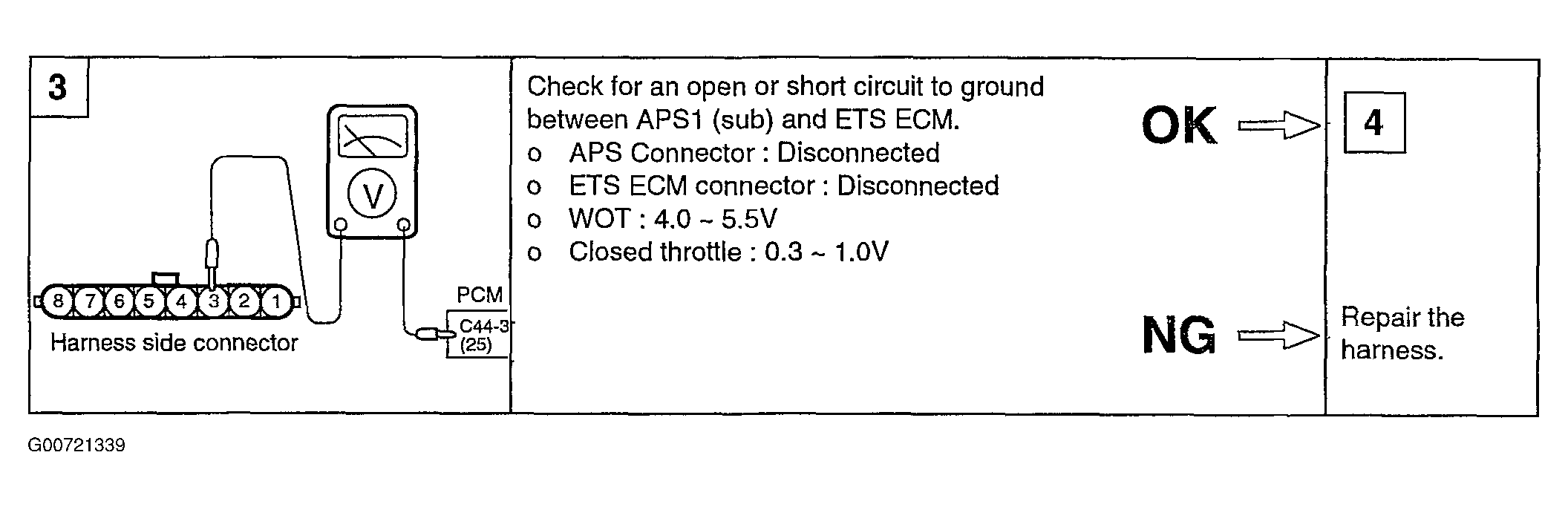

Fig 3: Checking ETS Harness (3 Of 5)

Courtesy of HYUNDAI MOTOR CO.

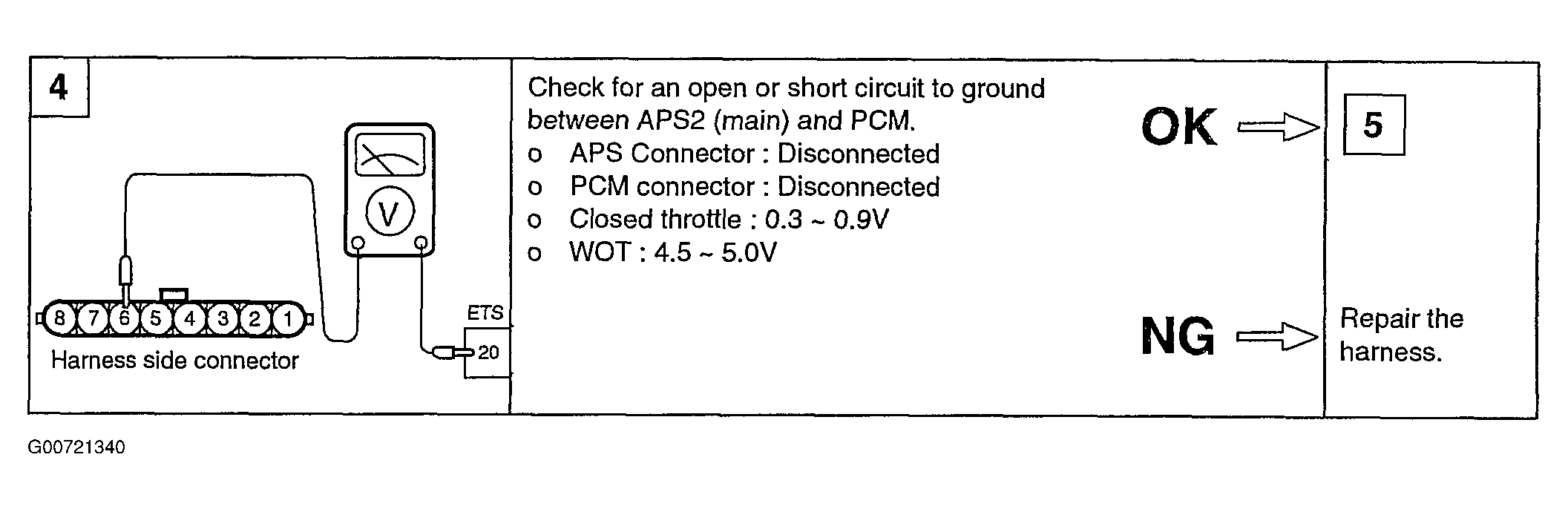

Fig 4: Checking ETS Harness (4 Of 5)

Courtesy of HYUNDAI MOTOR CO.

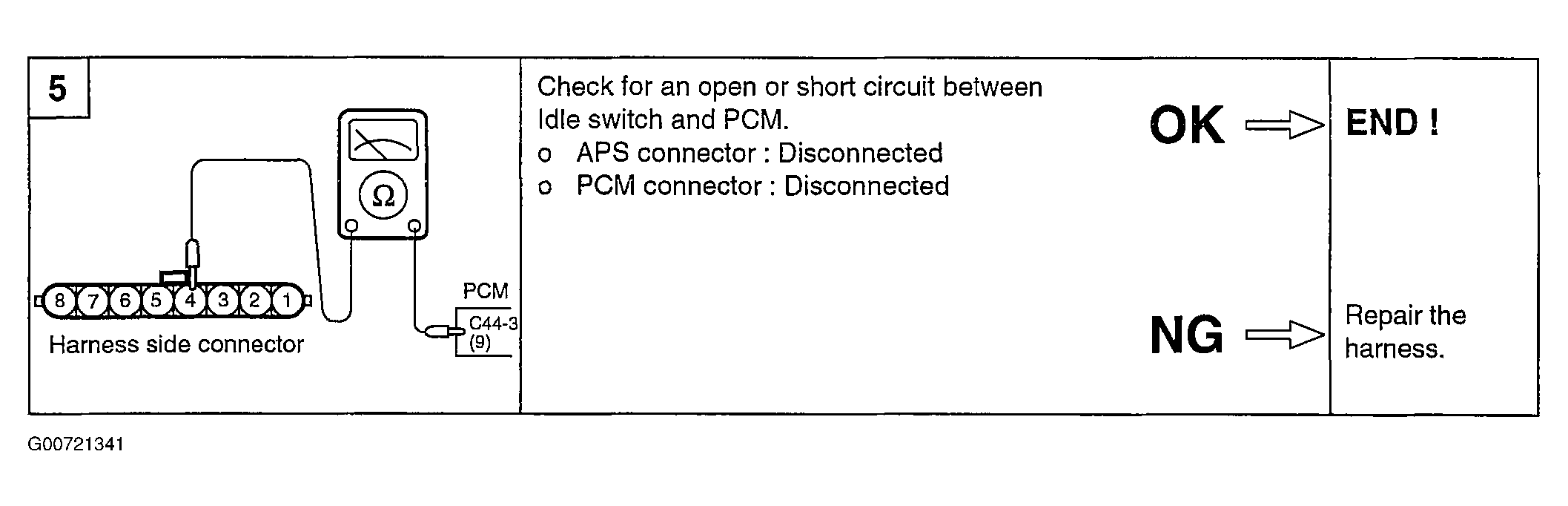

Fig 5: Checking ETS Harness (5 Of 5)

Courtesy of HYUNDAI MOTOR CO.
