Harness Inspection Procedures

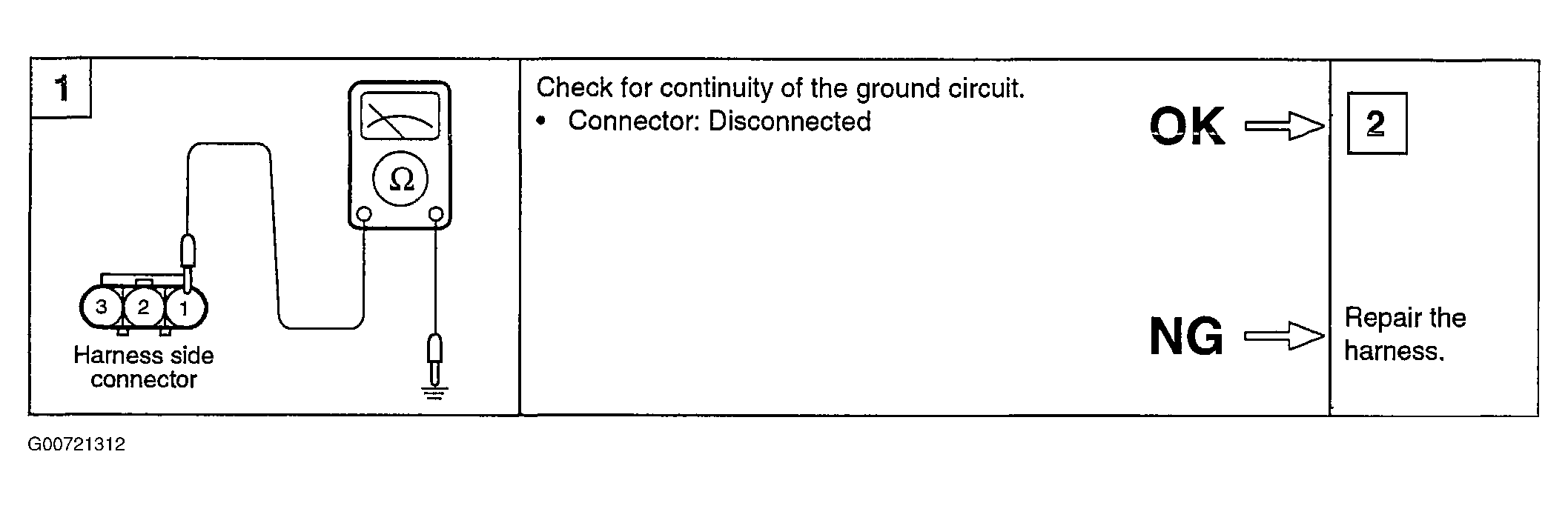

Fig 1: Checking ECT Sensor Harness Using Multi-Meter (1 Of 2)
G00721312Courtesy of HYUNDAI MOTOR CO.

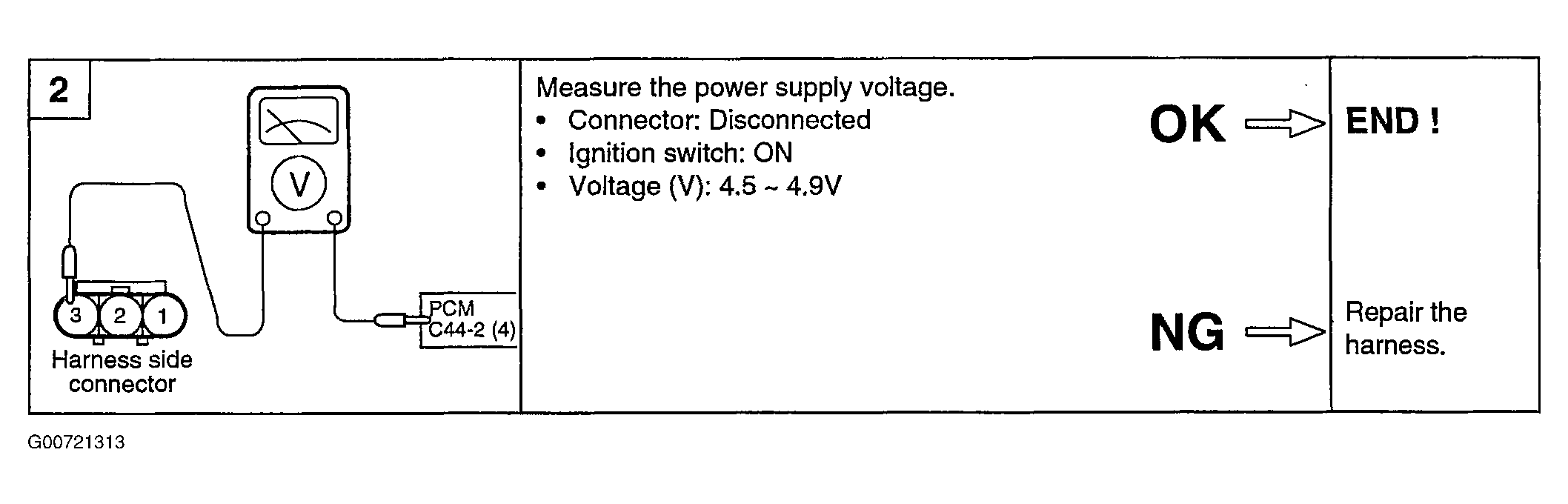

Fig 2: Checking ECT Sensor Harness Using Multi-Meter (2 Of 2)
G00721313Courtesy of HYUNDAI MOTOR CO.
