Using Multi-Meter

  1. Remove the engine coolant temperature sensor from the intake manifold.
  2. With the temperature sensing portion of the engine coolant temperature sensor immersed in hot engine coolant, check the resistance.

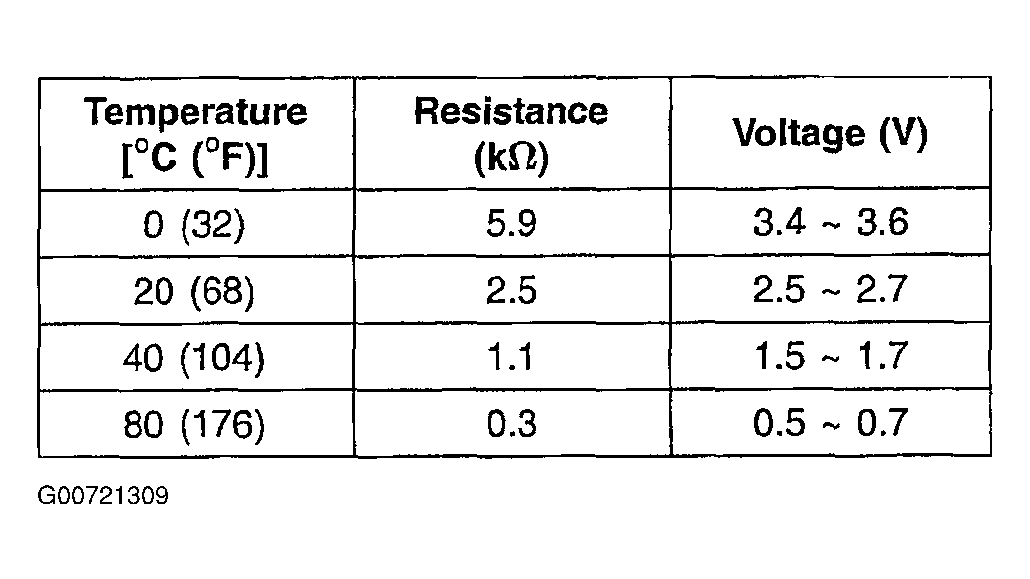

    Fig 1: ECT Sensor Temperature/Resistance Table
    G00721309Courtesy of HYUNDAI MOTOR CO.

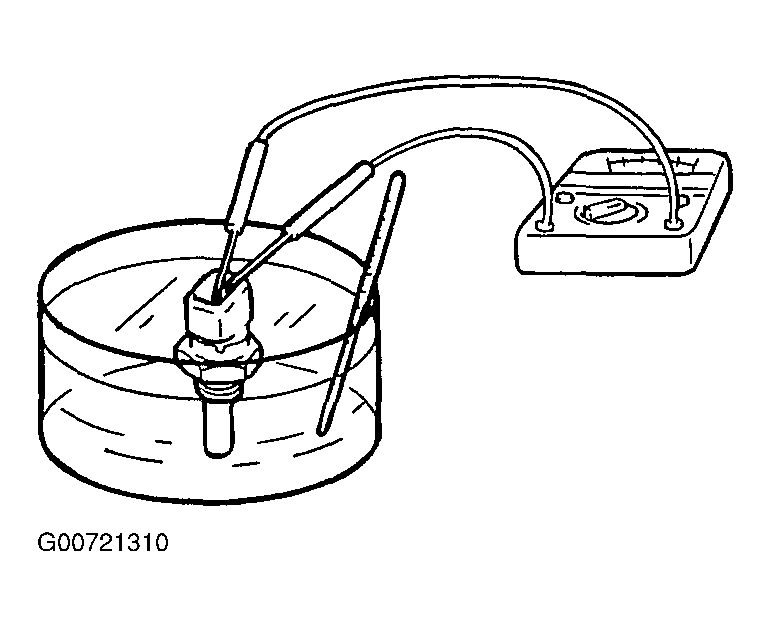

    Fig 2: Checking ECT Sensor Using Multi-Meter
    G00721310Courtesy of HYUNDAI MOTOR CO.
  3. If the resistance deviates from the standard value greatly, replace the sensor.

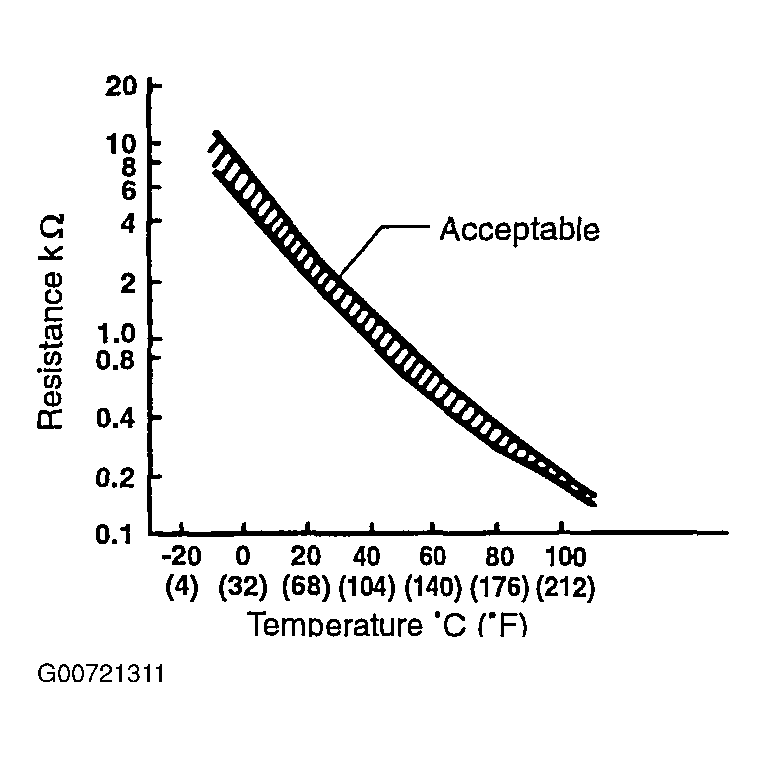

    Fig 3: ECT Sensor Temperature Vs. Resistance Graph
    G00721311Courtesy of HYUNDAI MOTOR CO.
