Using Hi-Scan

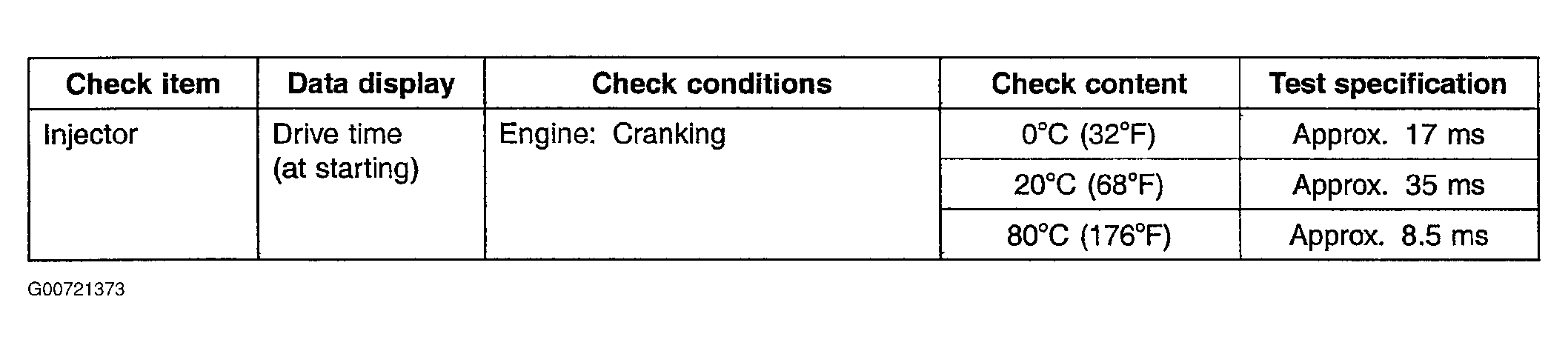

Fig 1: Injector Cranking Specification Table

Courtesy of HYUNDAI MOTOR CO.

NOTE: Drive time indicates the injector activation time when the supply voltage is 11V and the cranking speed is less than 250 RPM.

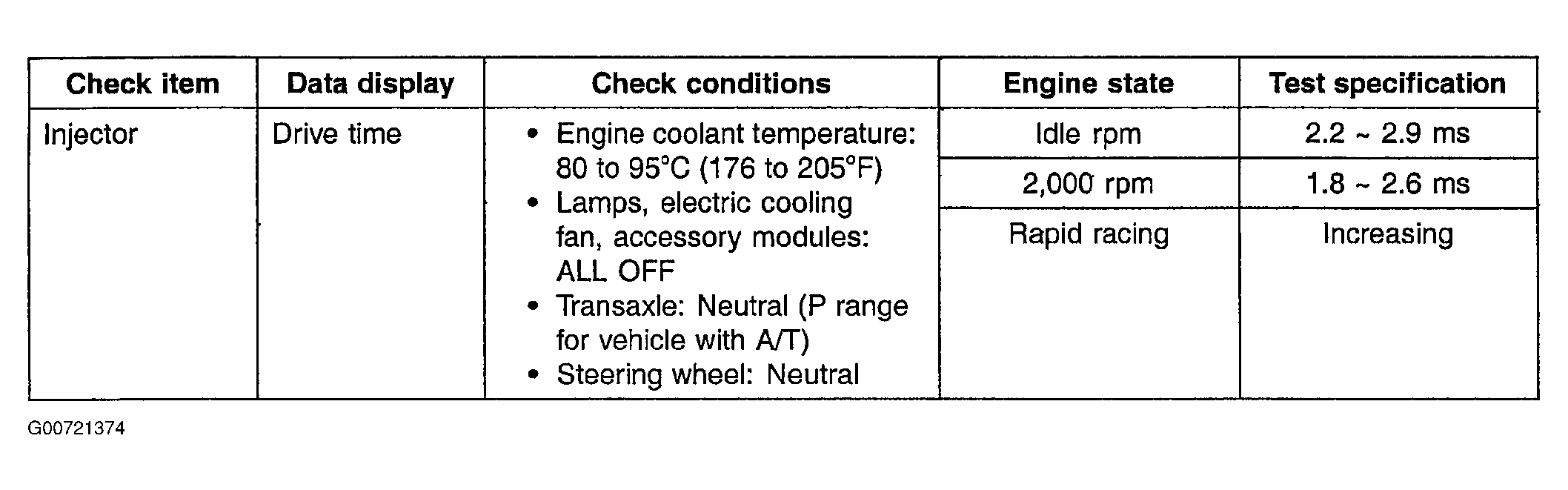

Fig 2: Injector Operating Conditions Table

Courtesy of HYUNDAI MOTOR CO.

NOTE:

When engine coolant temperature is lower than 0°C (32°F), the PCM fires all four cylinders simultaneously.
When the vehicle is new (within initial operation of about 500 km (300 miles)), the injector drive time may be about 10% longer.

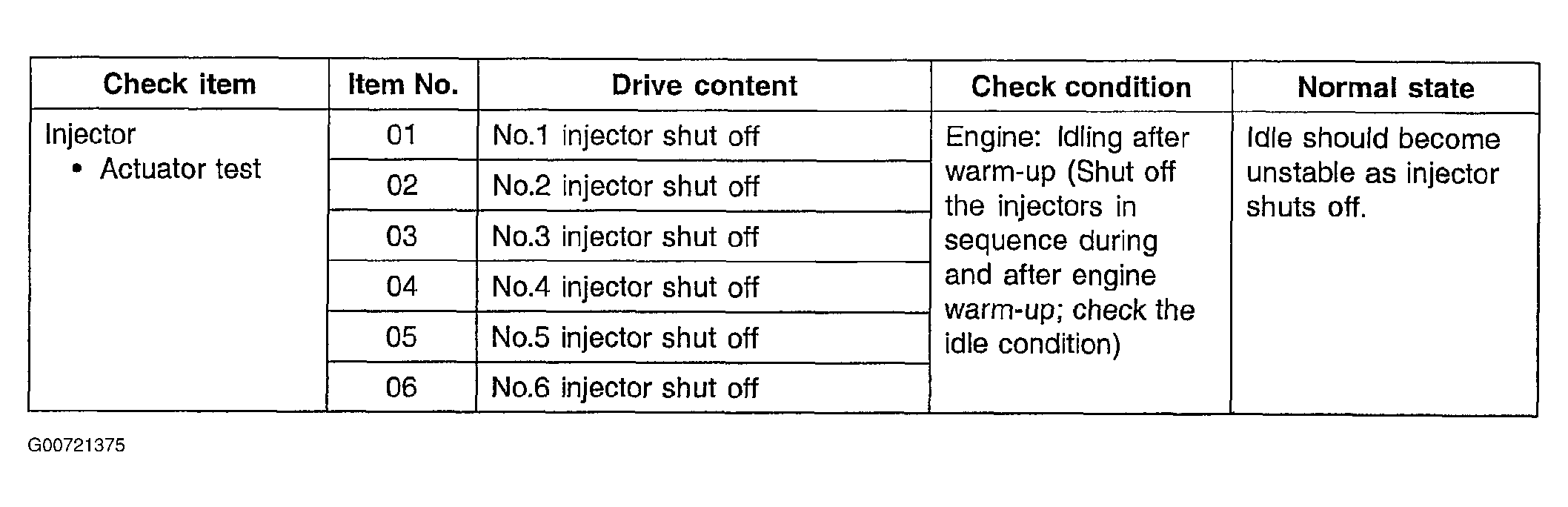

Fig 3: Injector Actuator Test Table

Courtesy of HYUNDAI MOTOR CO.
