Harness Inspection Procedures

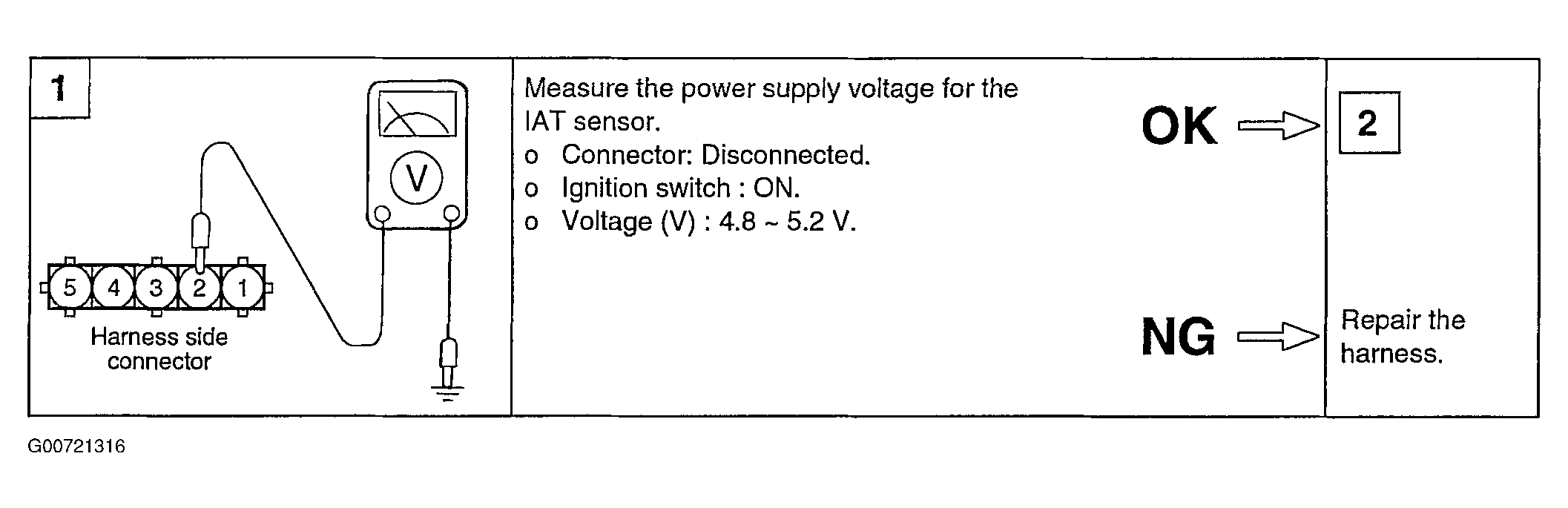

Fig 1: Checking IAT Harness (1 Of 5)

Courtesy of HYUNDAI MOTOR CO.

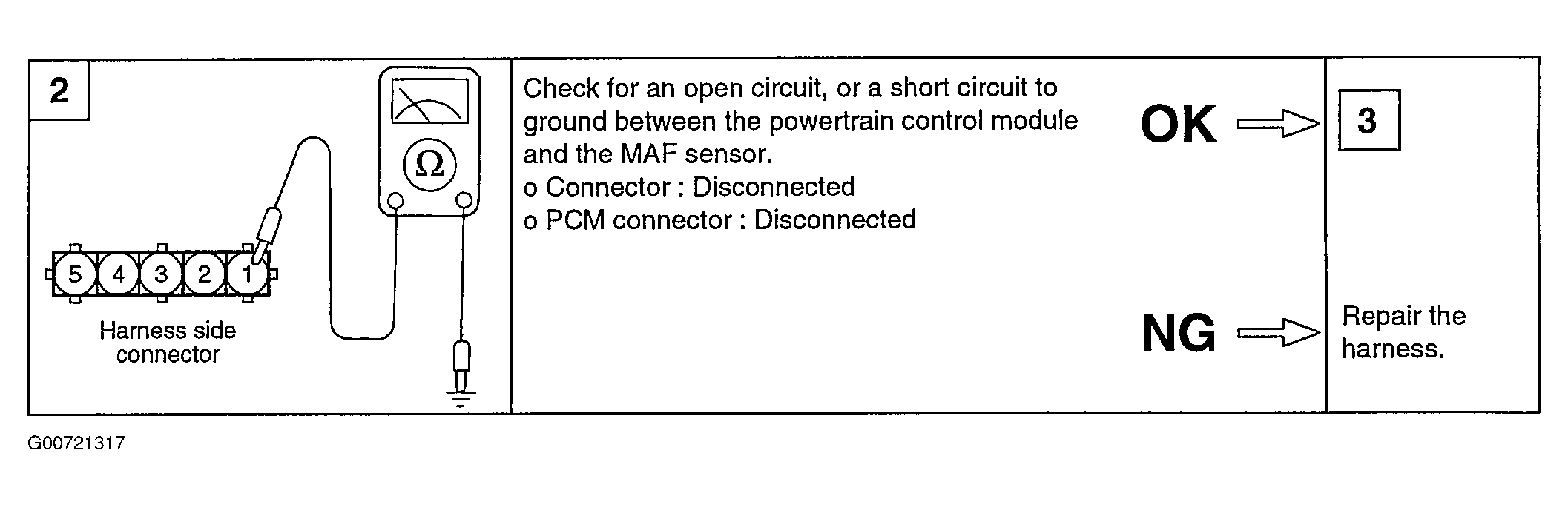

Fig 2: Checking IAT Harness (2 Of 5)

Courtesy of HYUNDAI MOTOR CO.

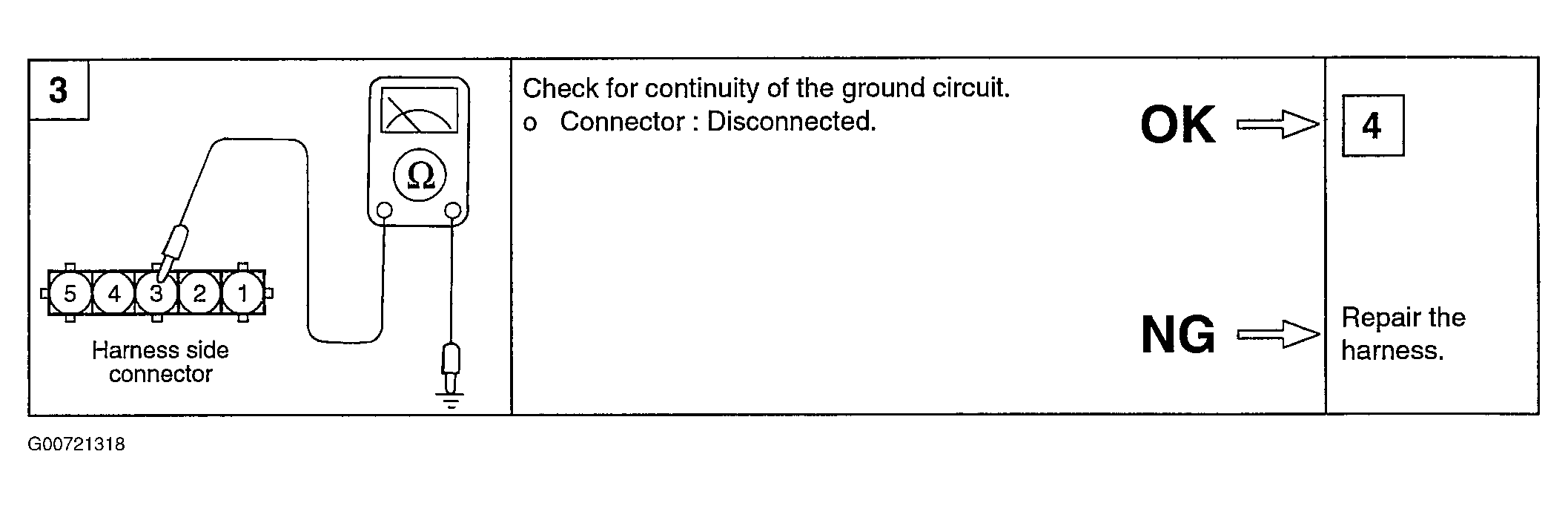

Fig 3: Checking IAT Harness (3 Of 5)

Courtesy of HYUNDAI MOTOR CO.

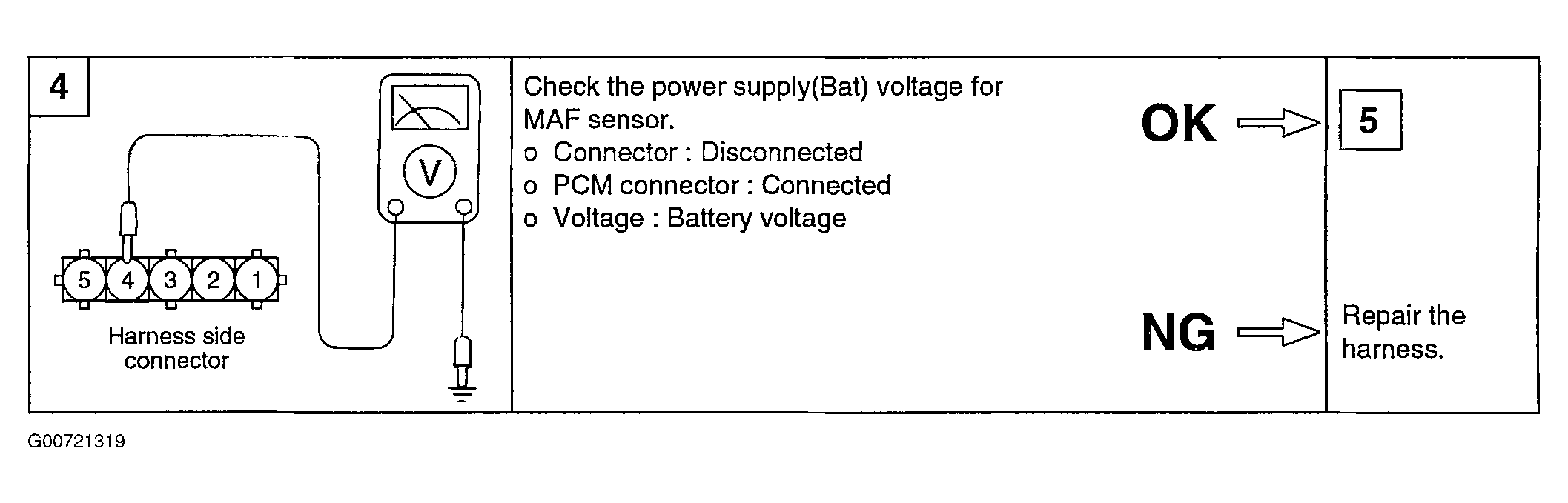

Fig 4: Checking IAT Harness (4 Of 5)

Courtesy of HYUNDAI MOTOR CO.

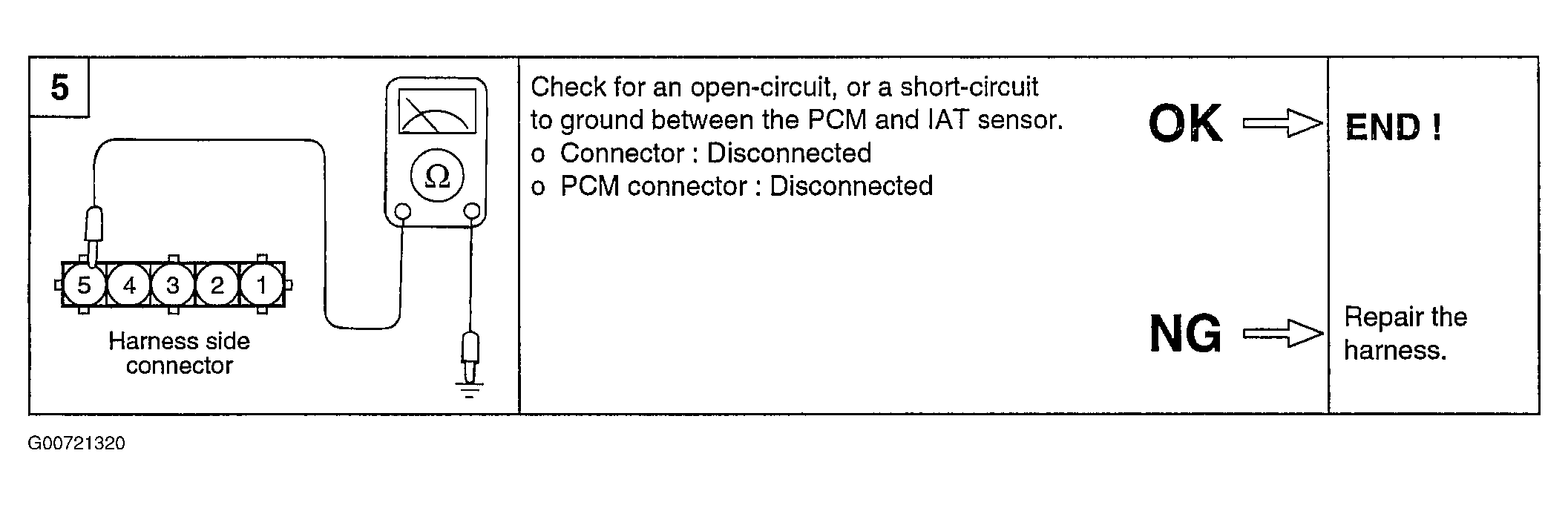

Fig 5: Checking IAT Harness (5 Of 5)

Courtesy of HYUNDAI MOTOR CO.
