Harness Inspection Procedures

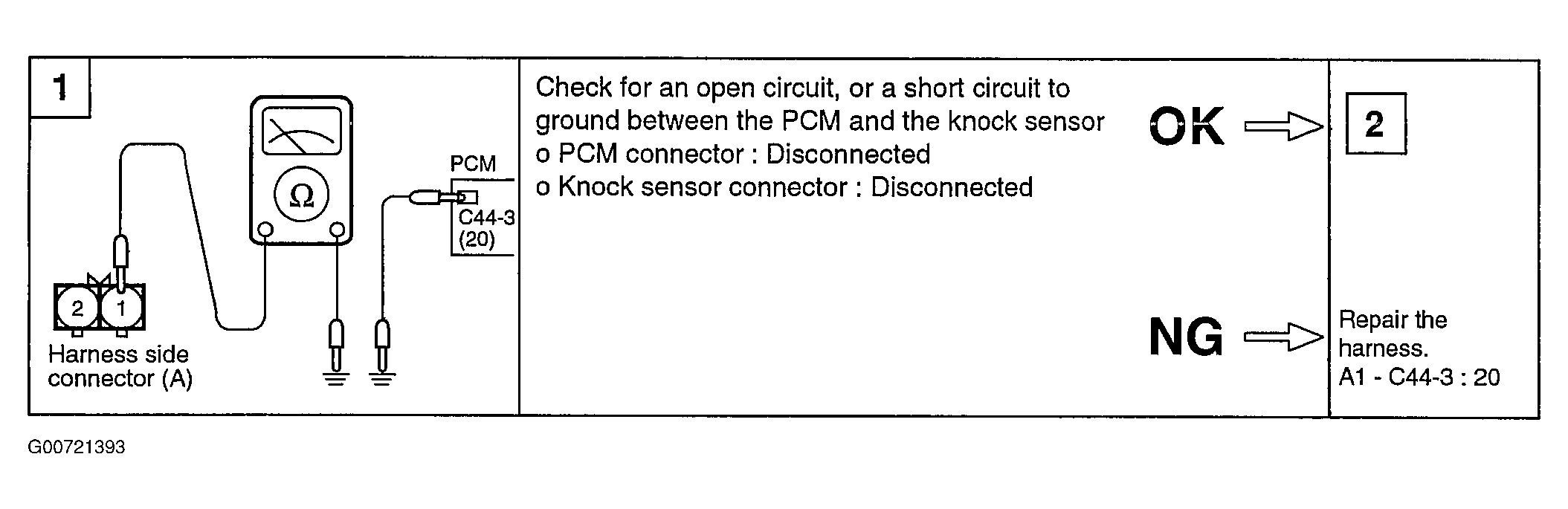

Fig 1: Checking Knock Sensor Harness (1 Of 2)
G00721393Courtesy of HYUNDAI MOTOR CO.

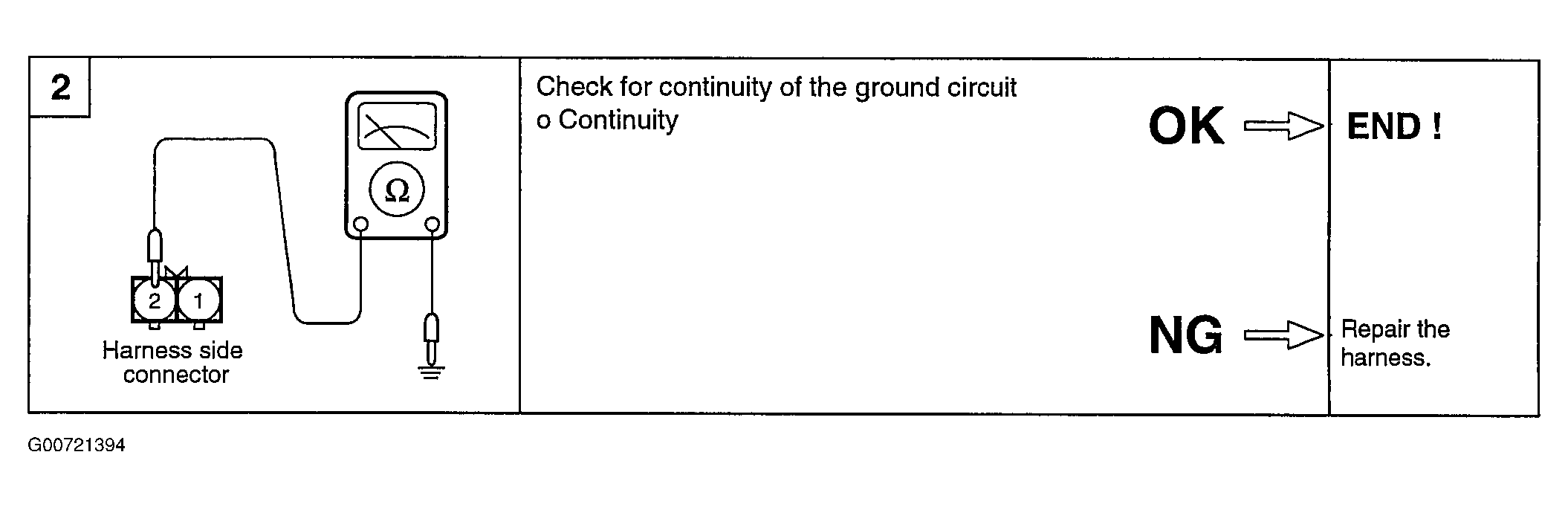

Fig 2: Checking Knock Sensor Harness (2 Of 2)
G00721394Courtesy of HYUNDAI MOTOR CO.
