Trouble Shooting Procedures

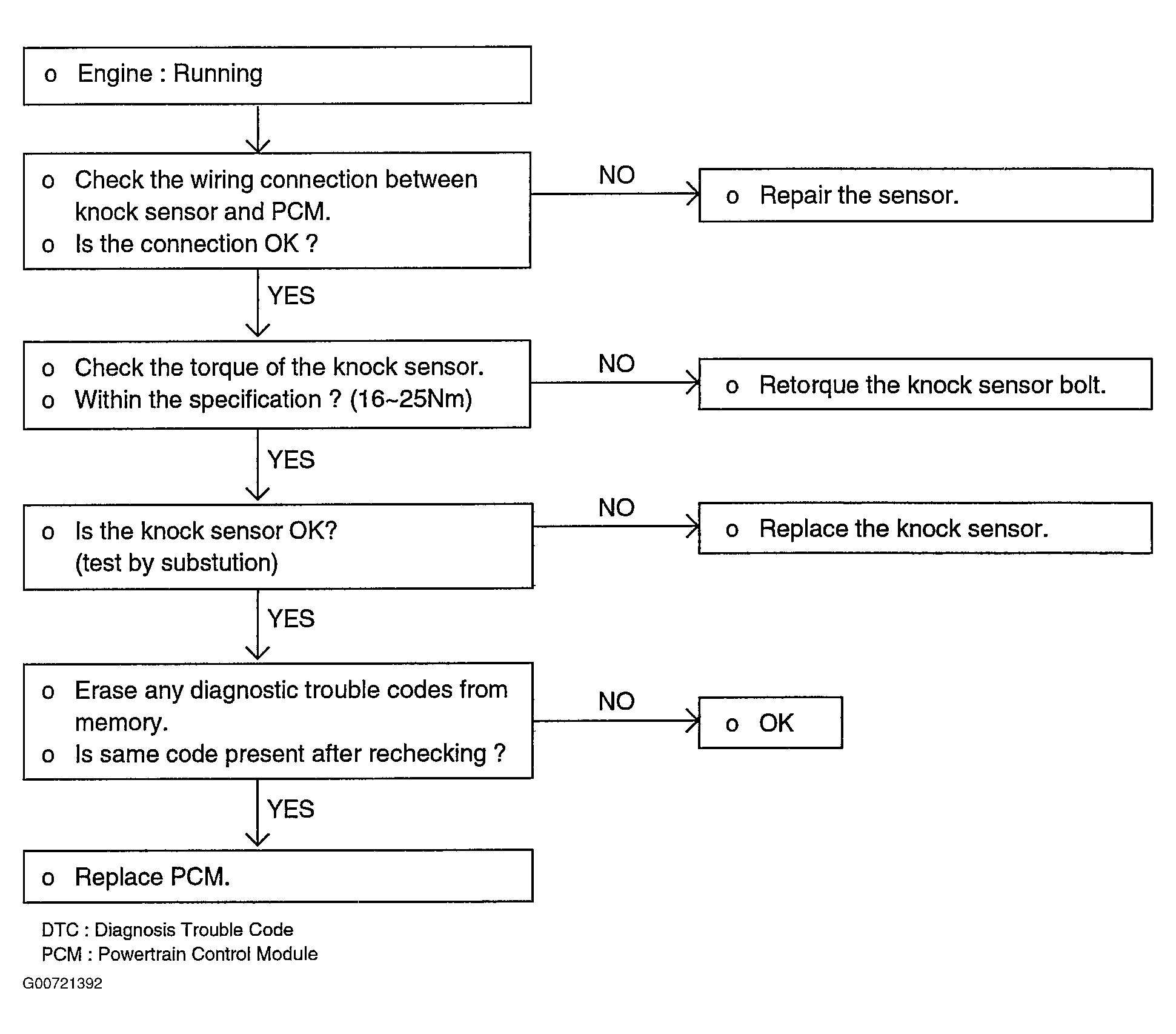

Fig 1: Knock Sensor Trouble Shooting Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
