Harness Inspection Procedures

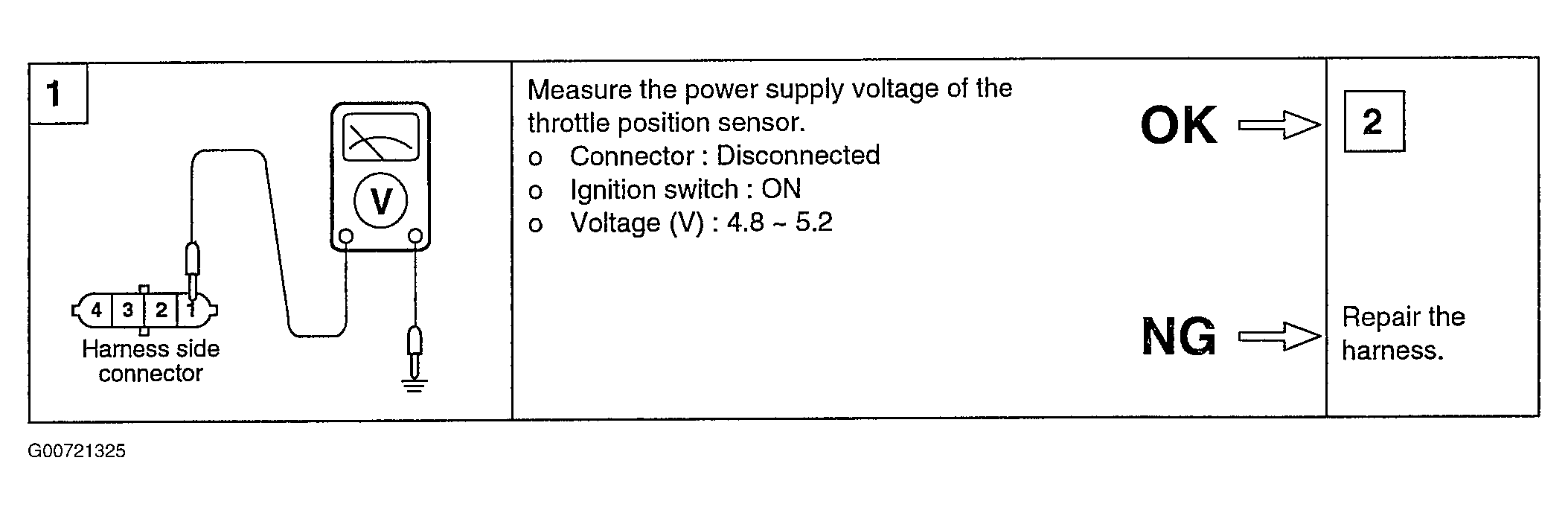

Fig 1: Checking TP Harness (1 of 4)
G00721325Courtesy of HYUNDAI MOTOR CO.

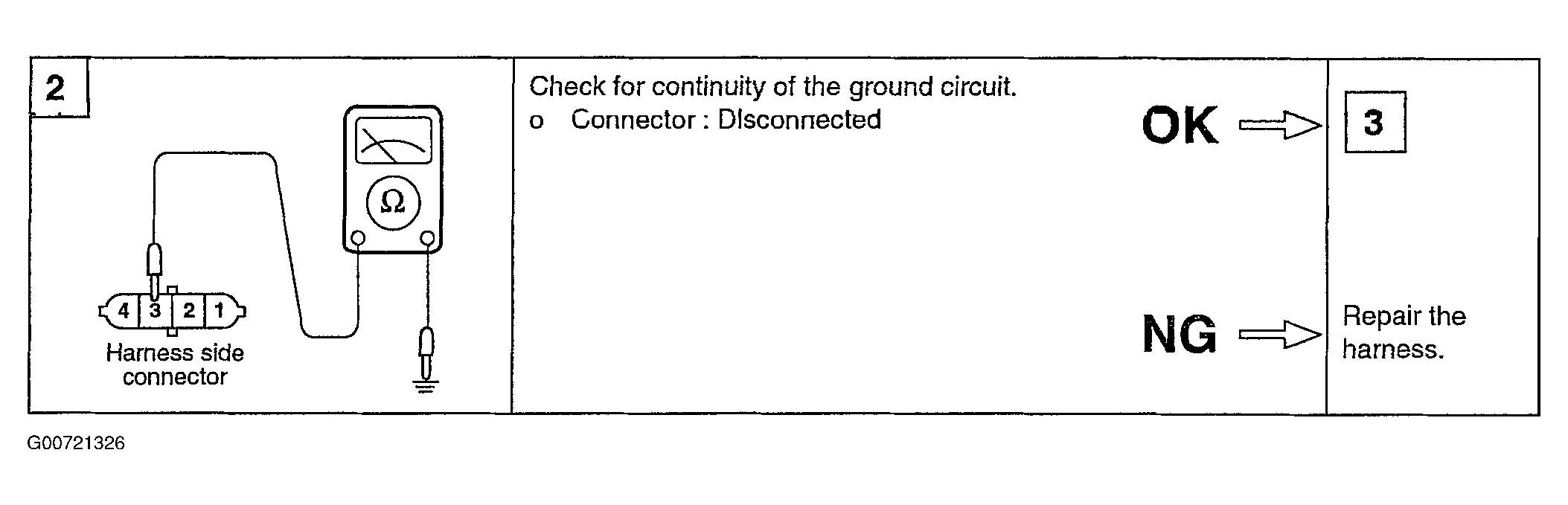

Fig 2: Checking TP Harness (2 of 4)
G00721326Courtesy of HYUNDAI MOTOR CO.

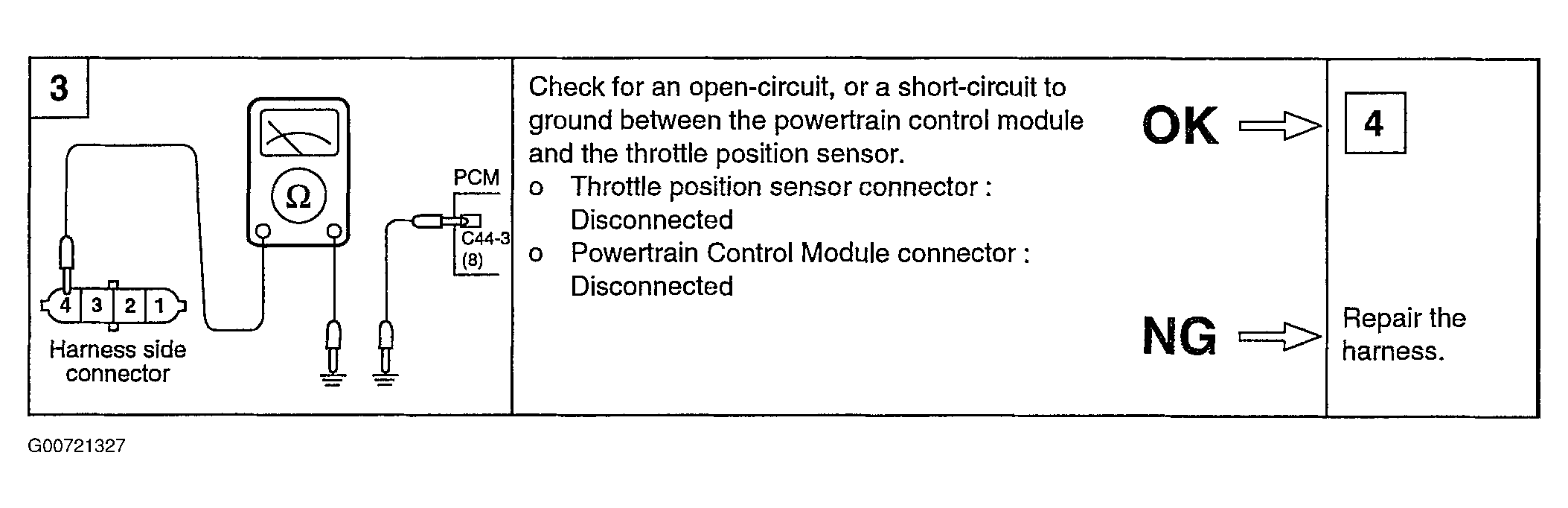

Fig 3: Checking TP Harness (3 of 4)
G00721327Courtesy of HYUNDAI MOTOR CO.

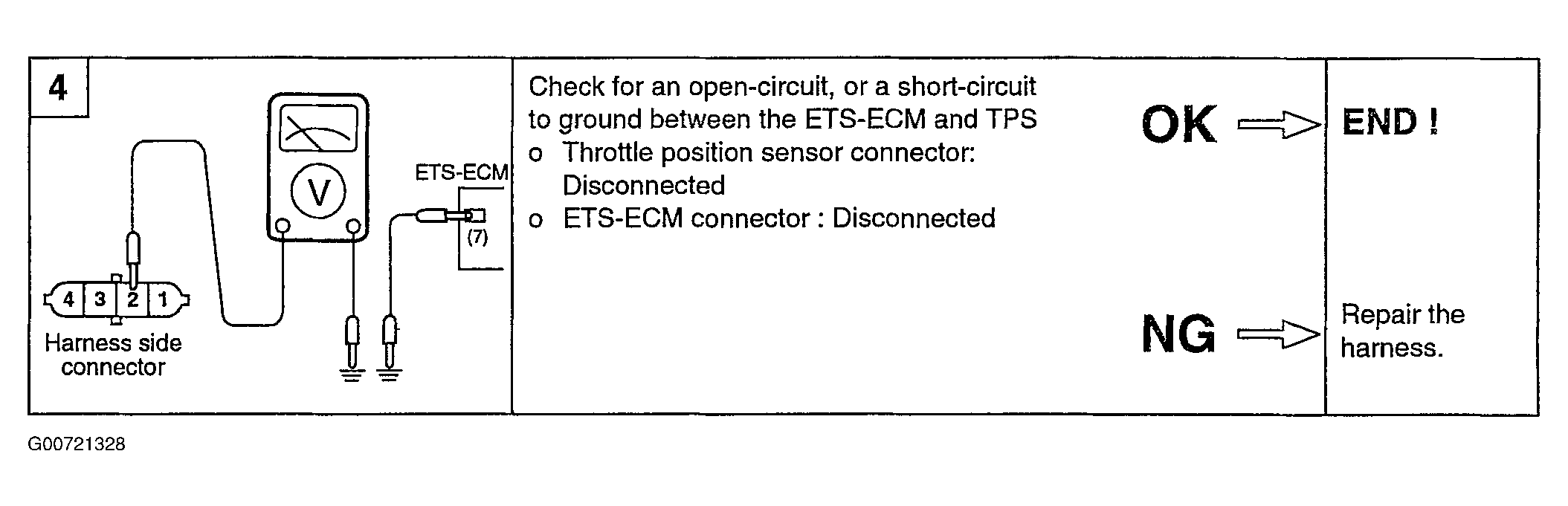

Fig 4: Checking TP Harness (4 of 4)
G00721328Courtesy of HYUNDAI MOTOR CO.
