Actuator Test Reference Table

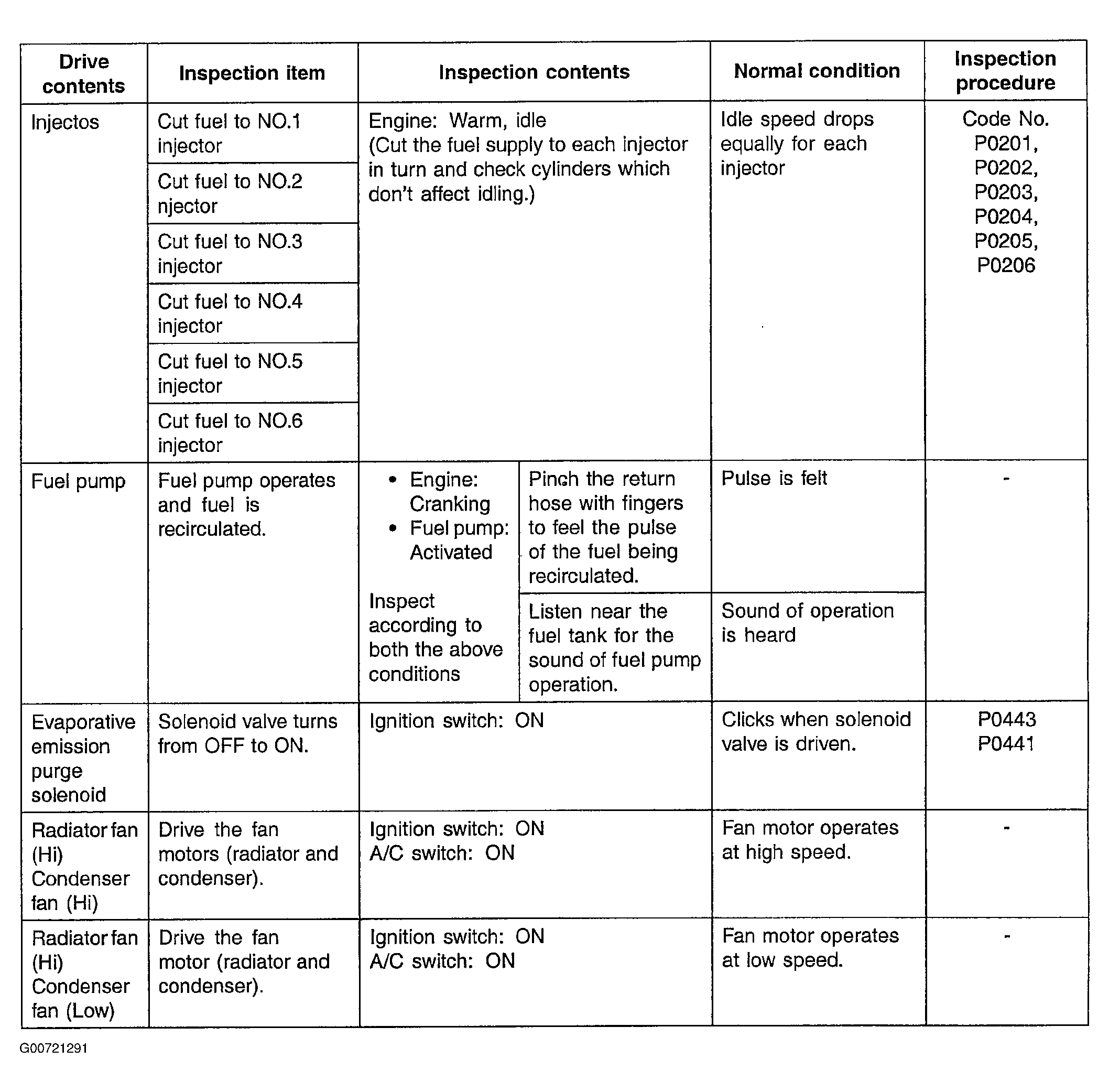

Fig 1: Actuator Test Reference Table
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
