Inspection Chart For Diagnostic Trouble Codes

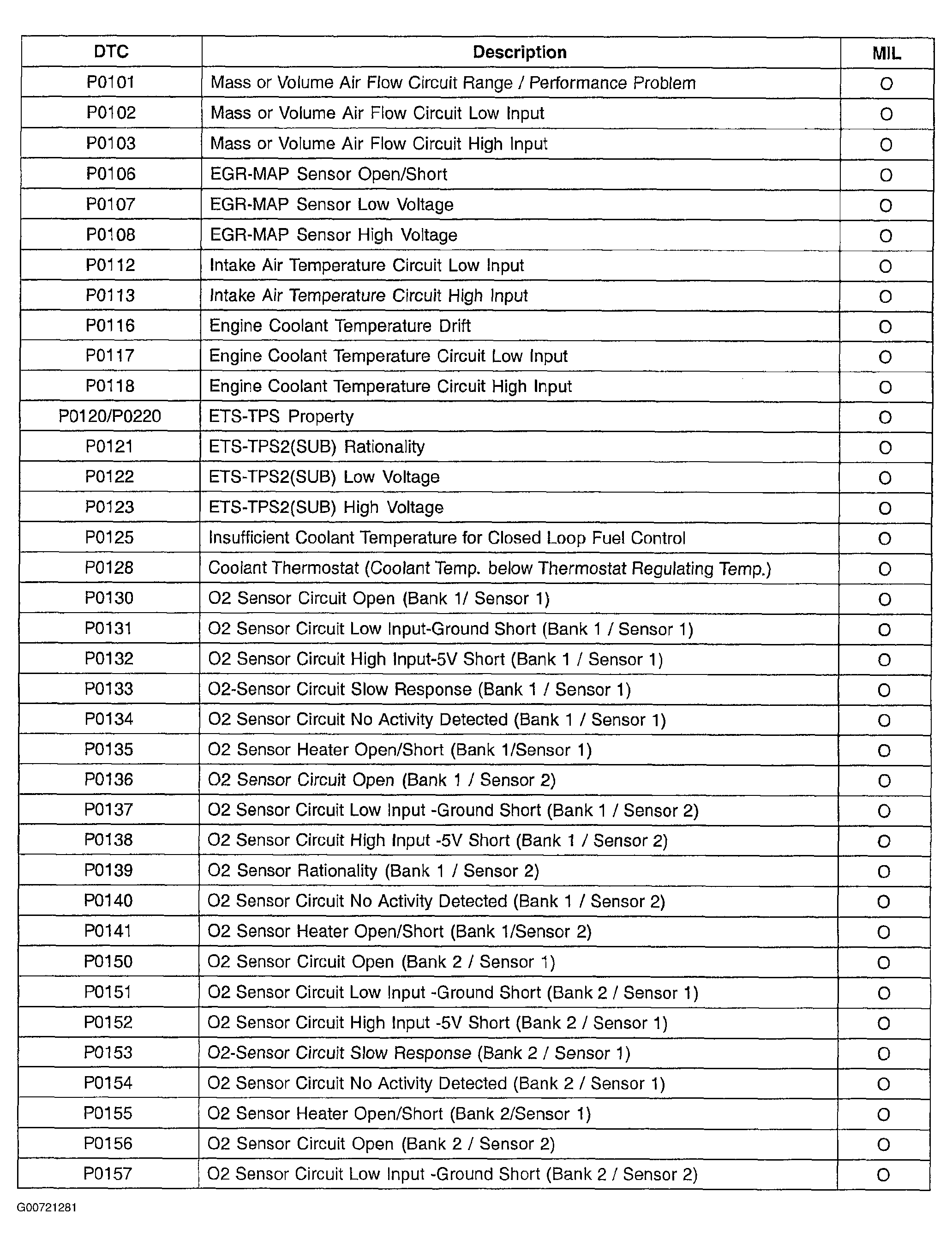

Fig 1: Diagnostic Trouble Code Identification Table (1 Of 4)

Courtesy of HYUNDAI MOTOR CO.

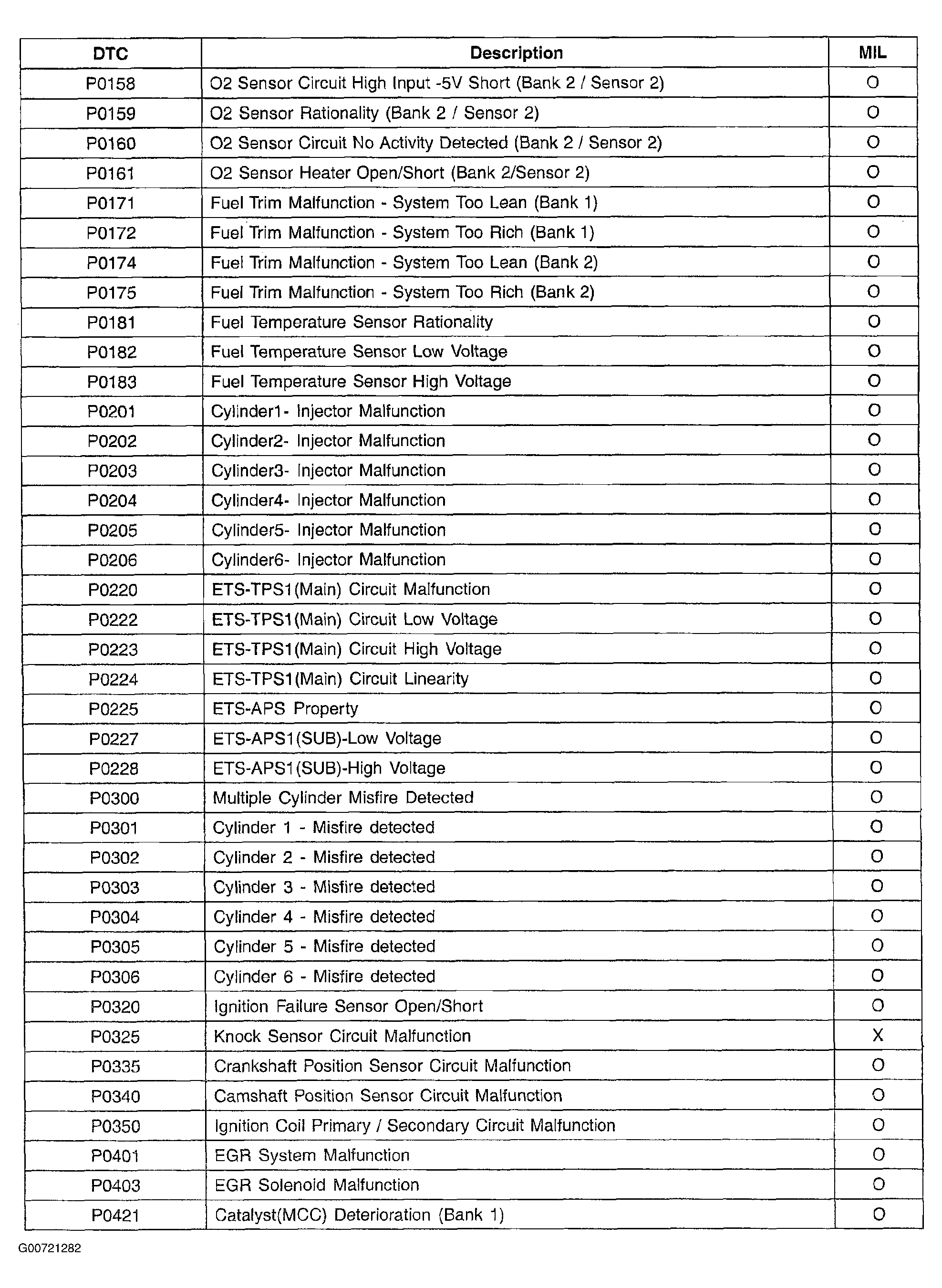

Fig 2: Diagnostic Trouble Code Identification Table (2 Of 4)

Courtesy of HYUNDAI MOTOR CO.

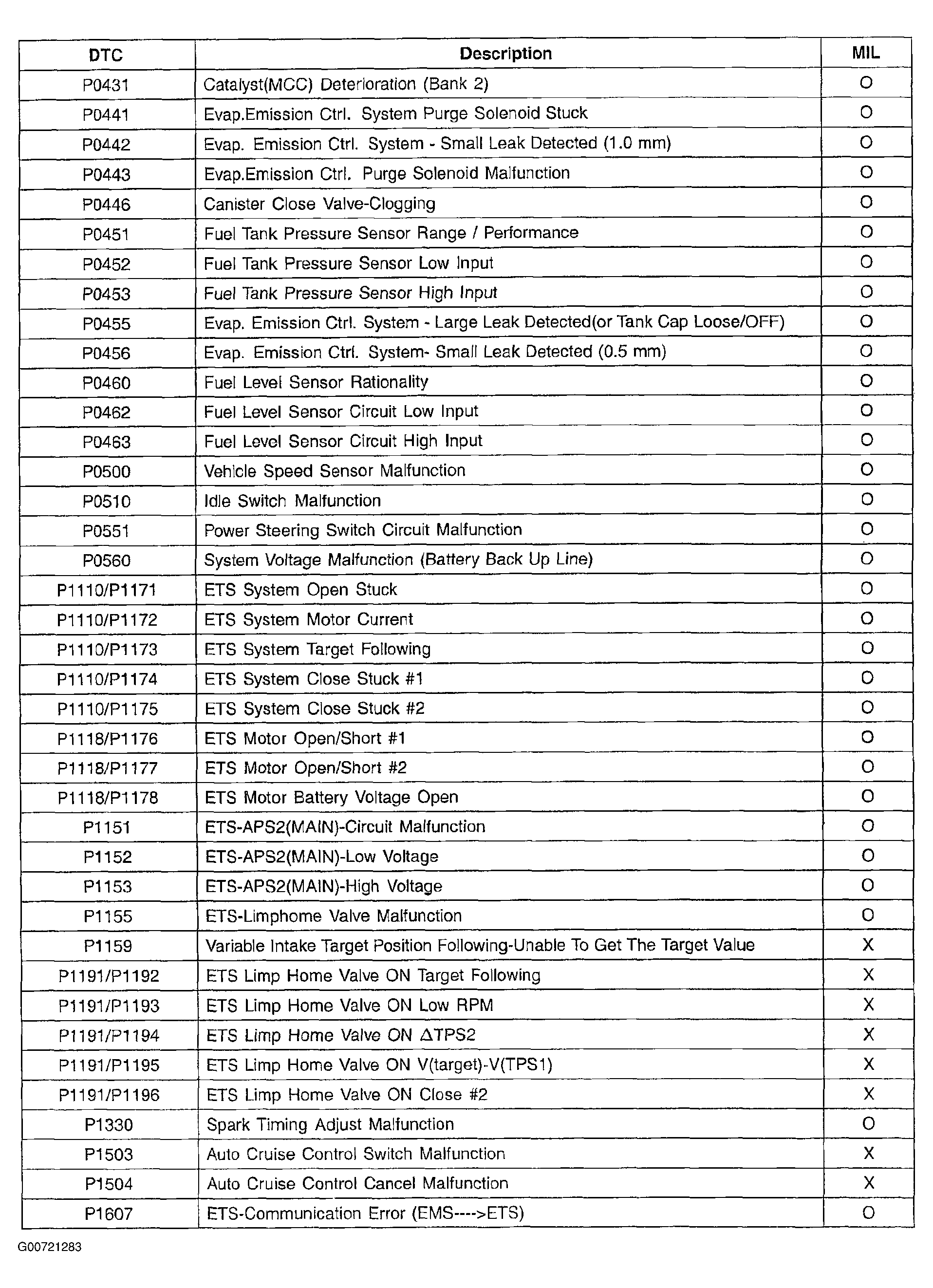

Fig 3: Diagnostic Trouble Code Identification Table (3 Of 4)

Courtesy of HYUNDAI MOTOR CO.

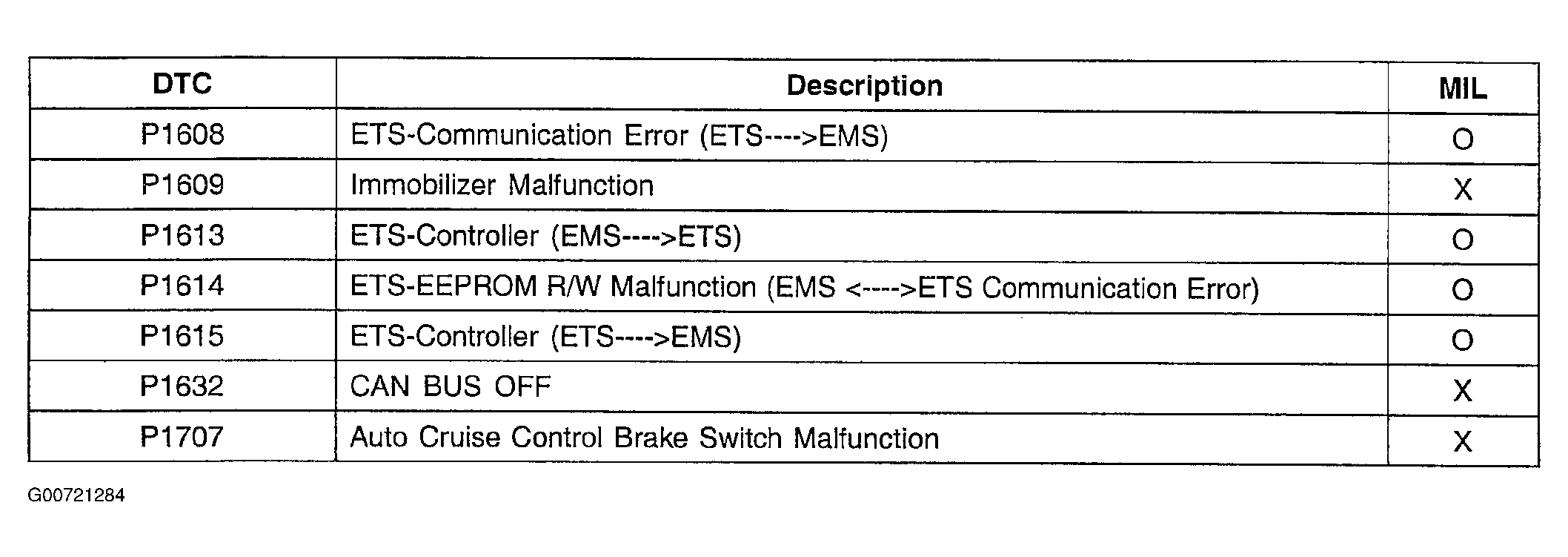

Fig 4: Diagnostic Trouble Code Identification Table (4 Of 4)

Courtesy of HYUNDAI MOTOR CO.

NOTE:

"O" means that the fault code can be memorized and the MIL illuminates.
"X" means that the fault code can be memorized but the MIL does not illuminates.
