Trouble Area Related To DTC

NOTE: Check items for each diagnostic items do not list all possible causes.

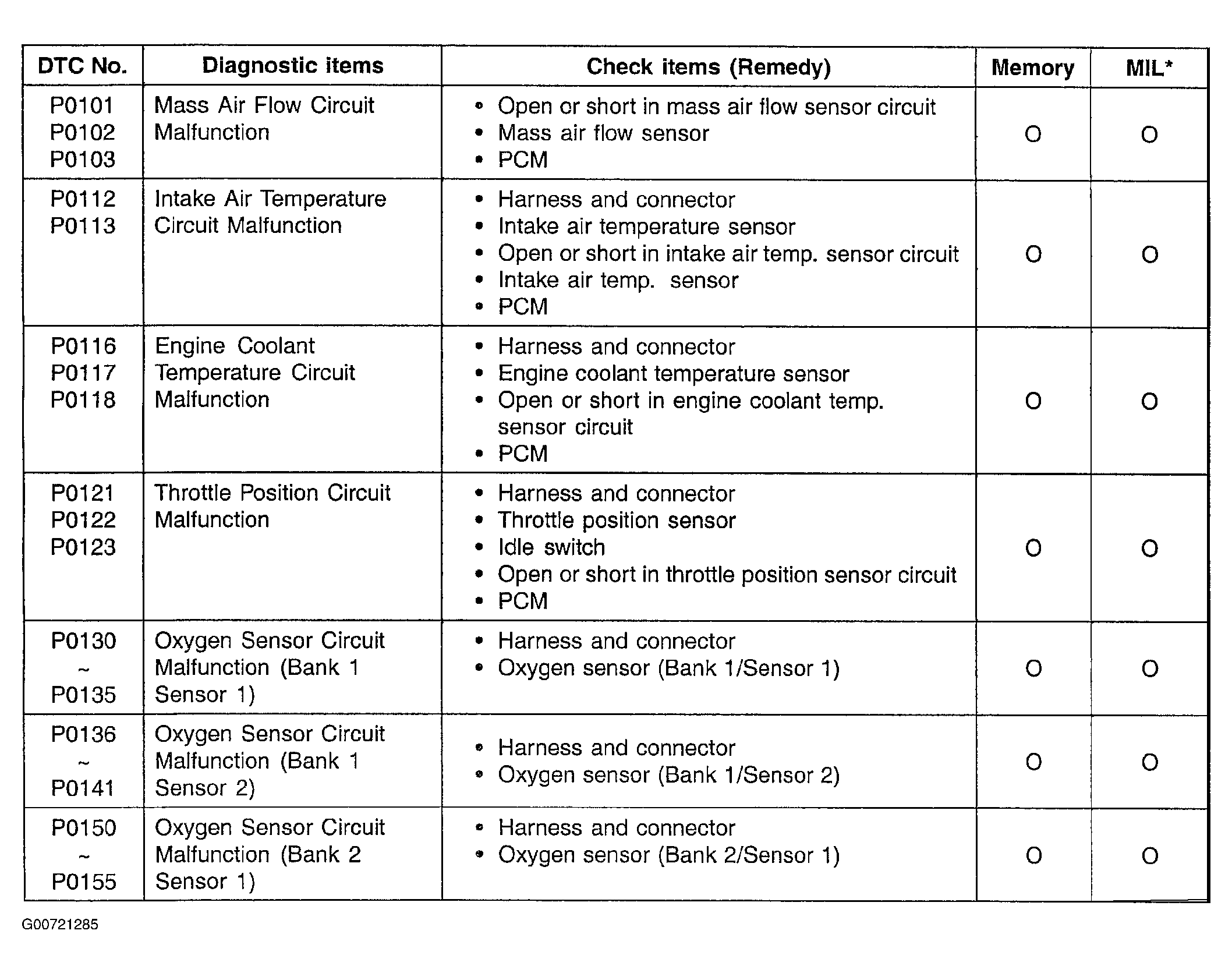

Fig 1: Trouble Areas Related To DTC (1 Of 6)

Courtesy of HYUNDAI MOTOR CO.

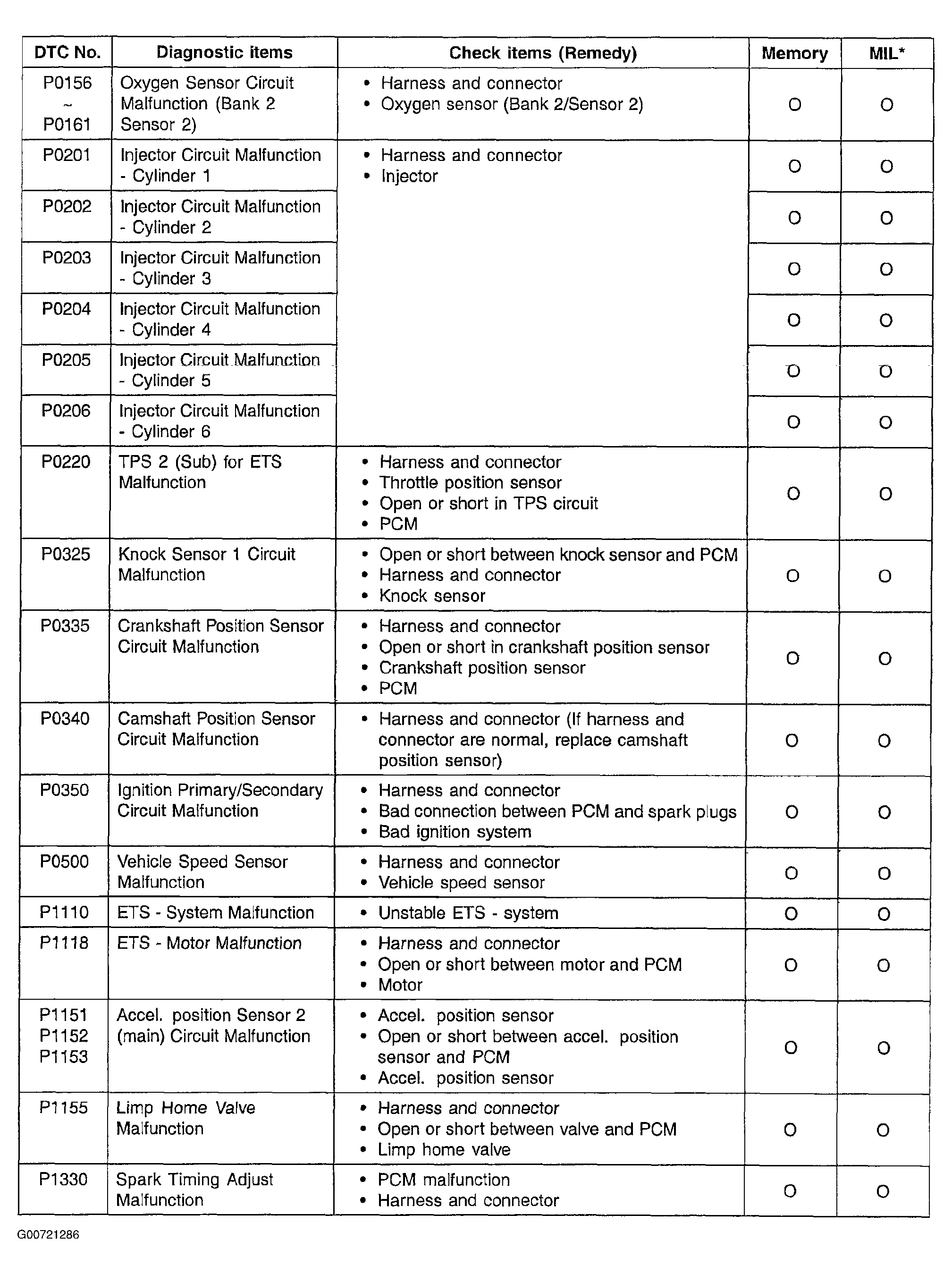

Fig 2: Trouble Areas Related To DTC (2 Of 6)

Courtesy of HYUNDAI MOTOR CO.

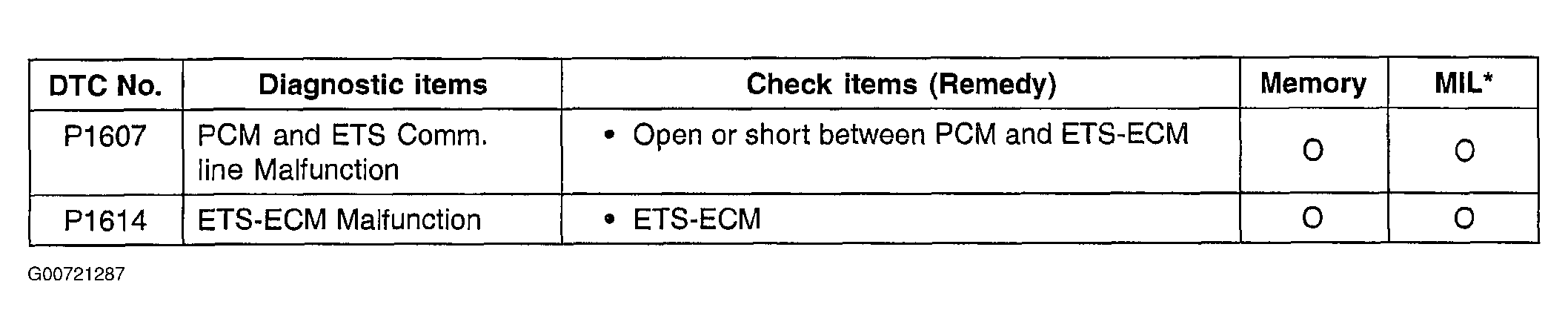

Fig 3: Trouble Areas Related To DTC (3 Of 6)

Courtesy of HYUNDAI MOTOR CO.

NOTE: * O: MIL (Malfunction Indication Lamp) lights up.

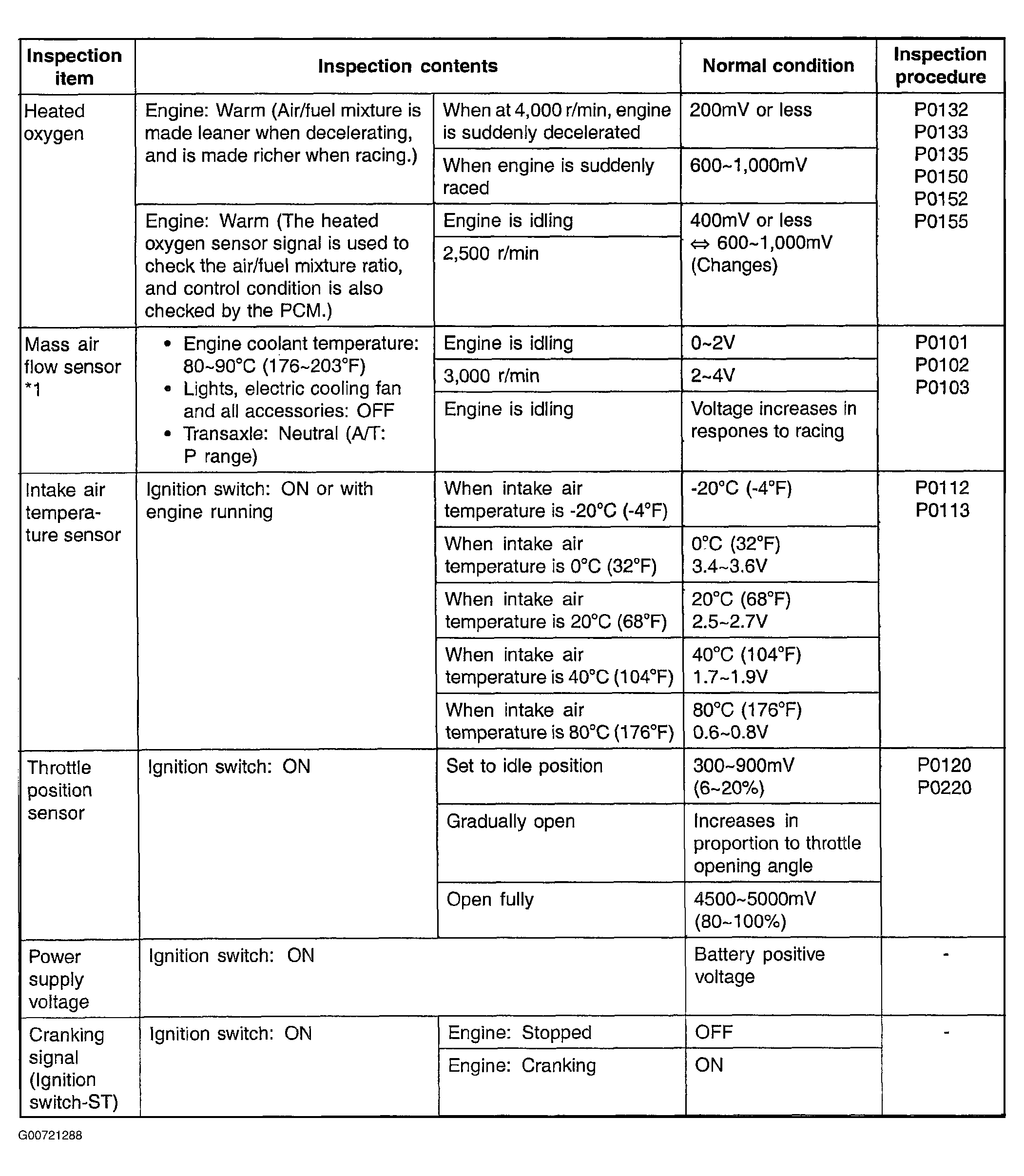

Fig 4: Trouble Areas Related To DTC (4 Of 6)

Courtesy of HYUNDAI MOTOR CO.

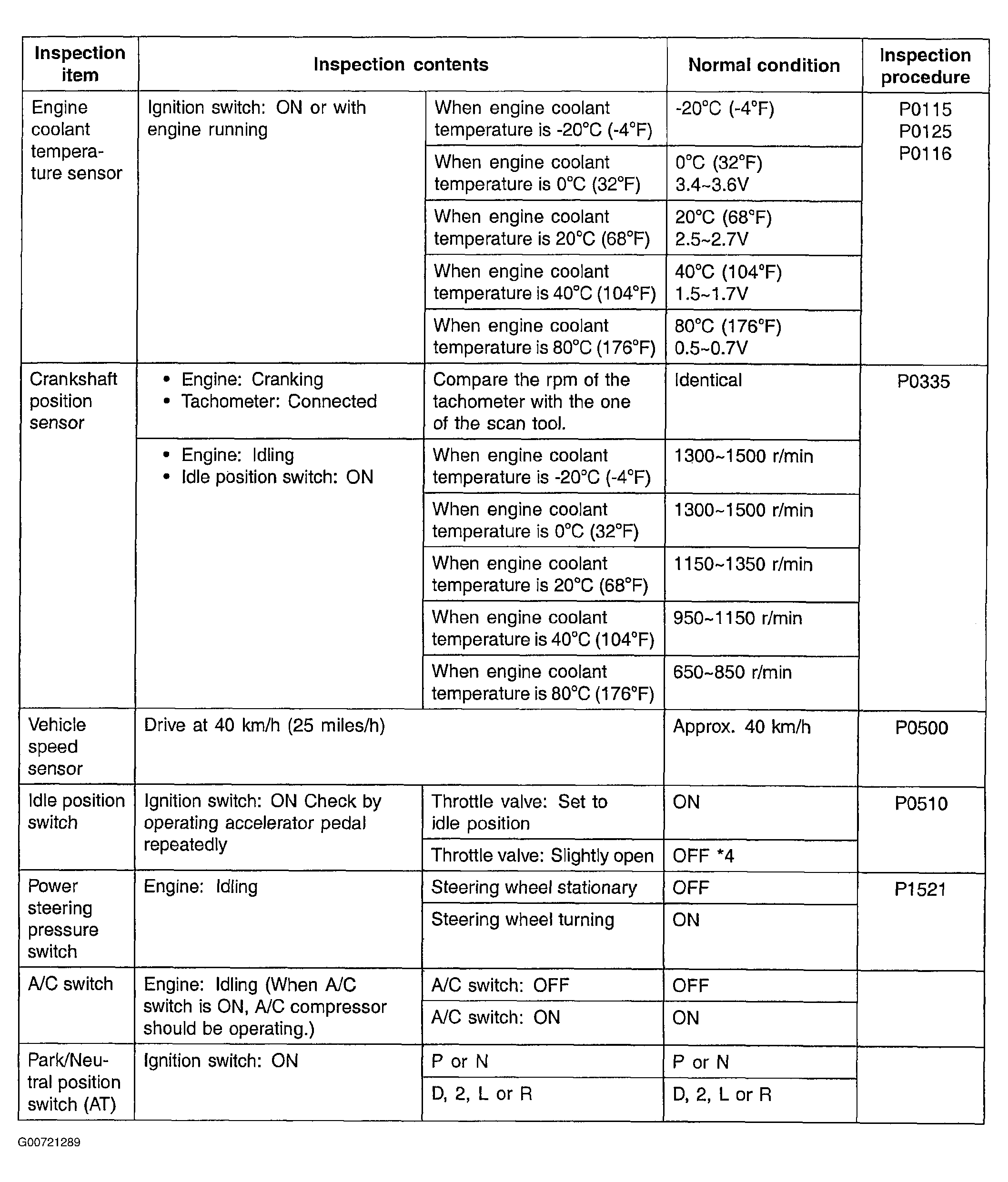

Fig 5: Trouble Areas Related To DTC (5 Of 6)

Courtesy of HYUNDAI MOTOR CO.

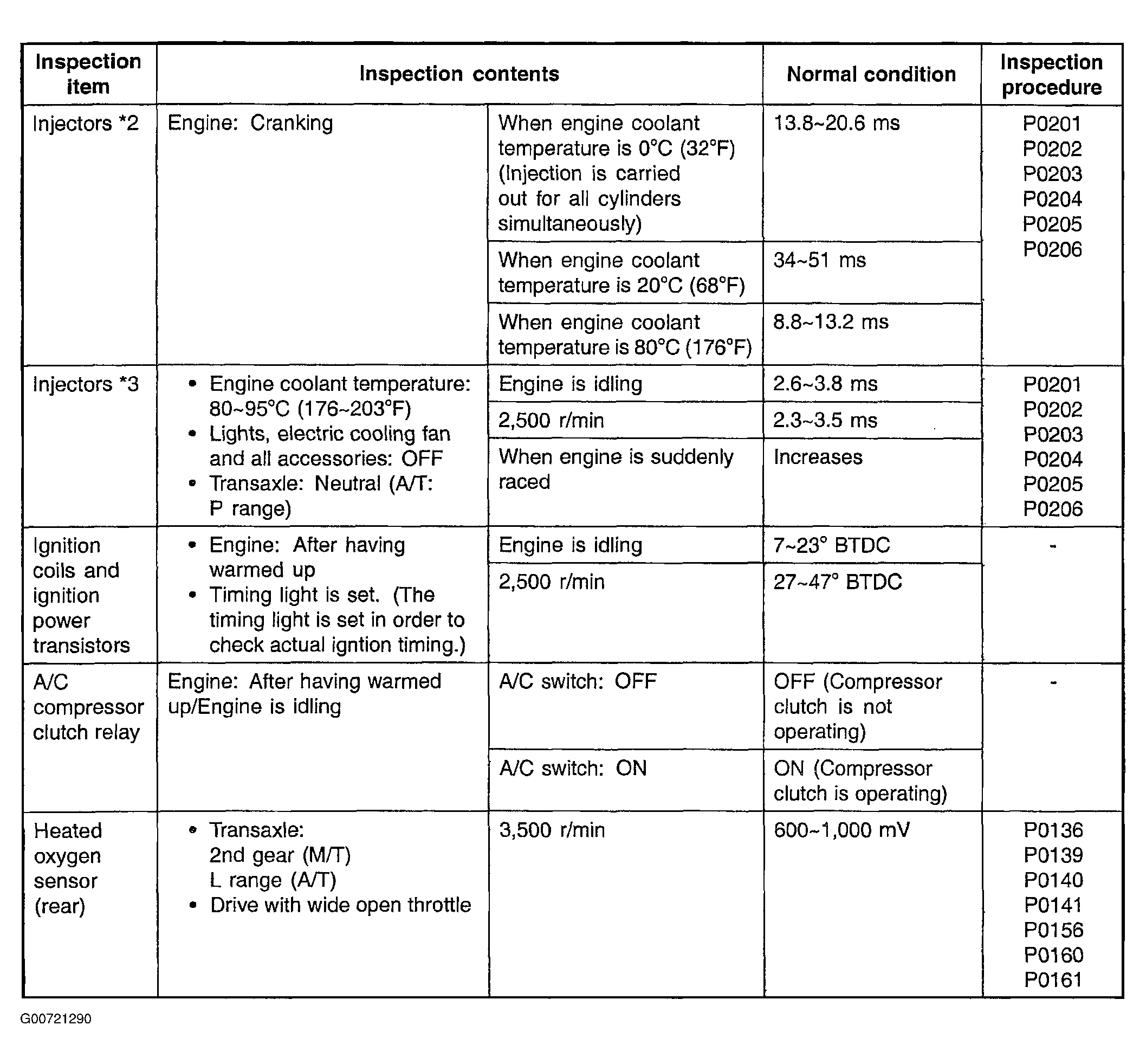

Fig 6: Trouble Areas Related To DTC (6 Of 6)

Courtesy of HYUNDAI MOTOR CO.

NOTE:

In a new vehicle (driven approximately 500 km (300 mile) or less), the mass air flow sensor output voltage is sometimes 10% higher than the standard voltage.
The injector drive time represents the time when the cranking speed is at 250 r/min or below when the power supply voltage is 11V.
In a new vehicle (driven approximately 500 km (300 mile) or less), the injector drive time is sometimes 10% longer than the standard time.
The idle position switch normally turns off when the voltage of the throttle position sensor is 50~100 mV higher than the voltage at the idle position. If the idle position switch turns back on after the throttle position sensor voltage has risen by 100 mV and the throttle valve has opened, the idle position switch and the throttle position sensor need to be adjusted.
