Using Hi-Scan (Pro)

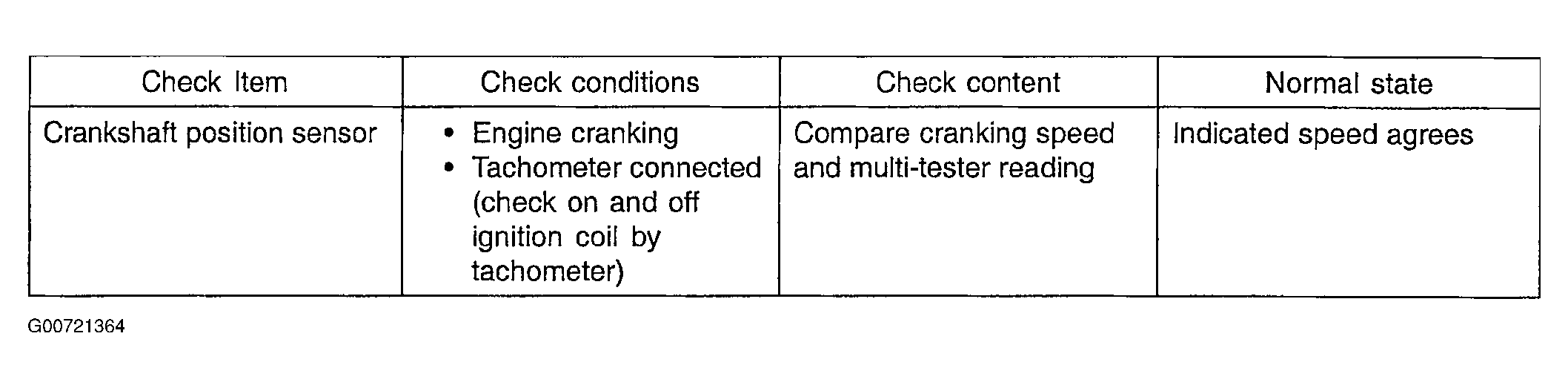

Fig 1: Crankshaft Position Sensor Conditions Table
G00721364Courtesy of HYUNDAI MOTOR CO.

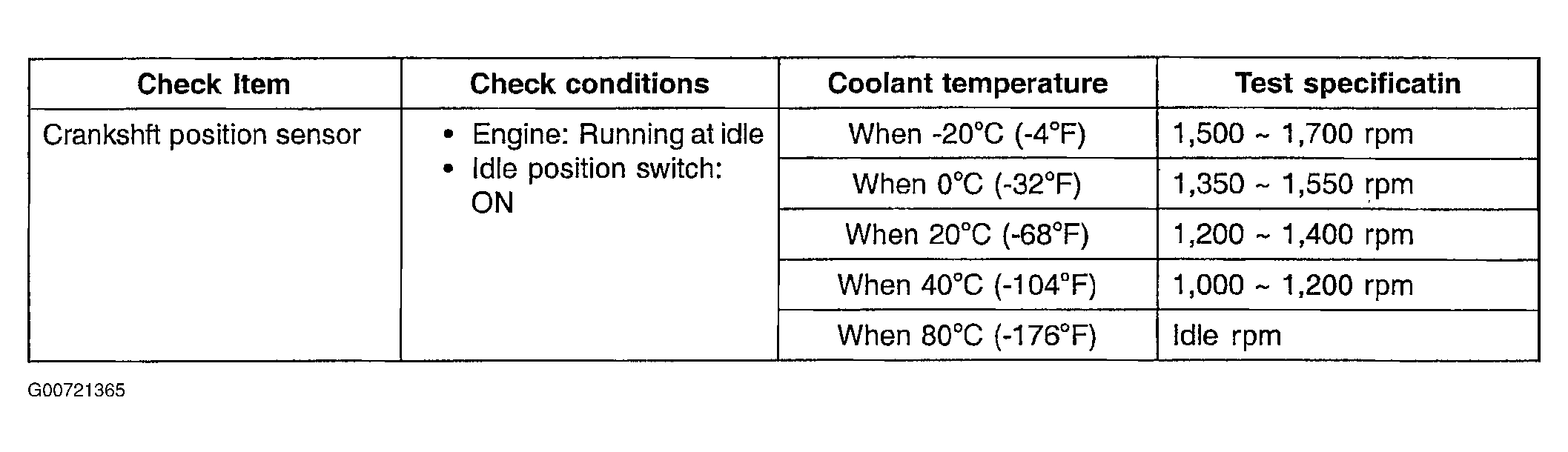

Fig 2: Crankshaft Position Sensor Specification Table
G00721365Courtesy of HYUNDAI MOTOR CO.
