MFI Control System: Injector: Inspection

  1. Measure the resistance of the injectors between the terminals using an ohmmeter.

    Resistance  : 13~16Ω (at 20°C (68°F))

  2. If the resistance is not within specification, replace the injector.

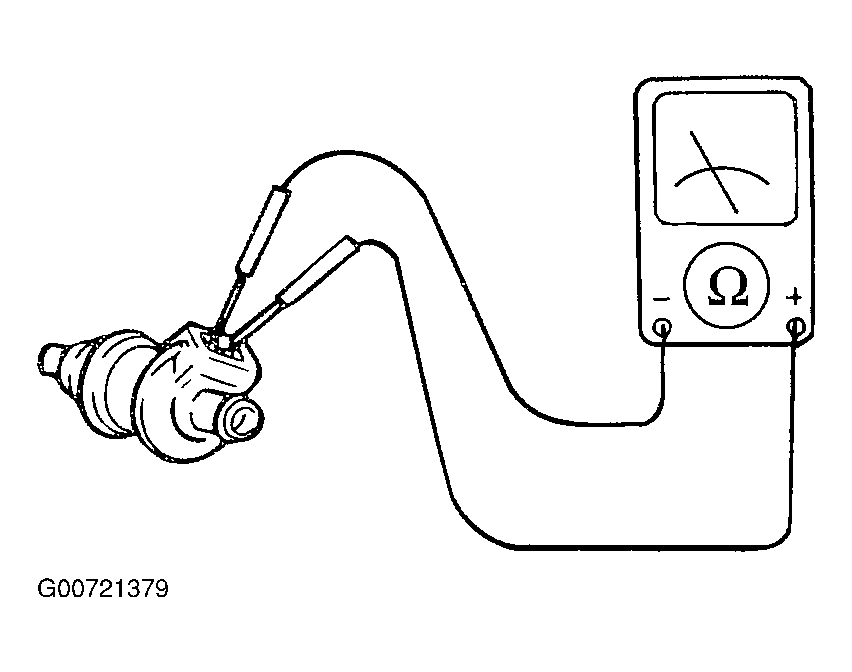

    Fig 1: Checking Injector Using Multi-Meter
    G00721379Courtesy of HYUNDAI MOTOR CO.
