Location Of MFI Components: Notes

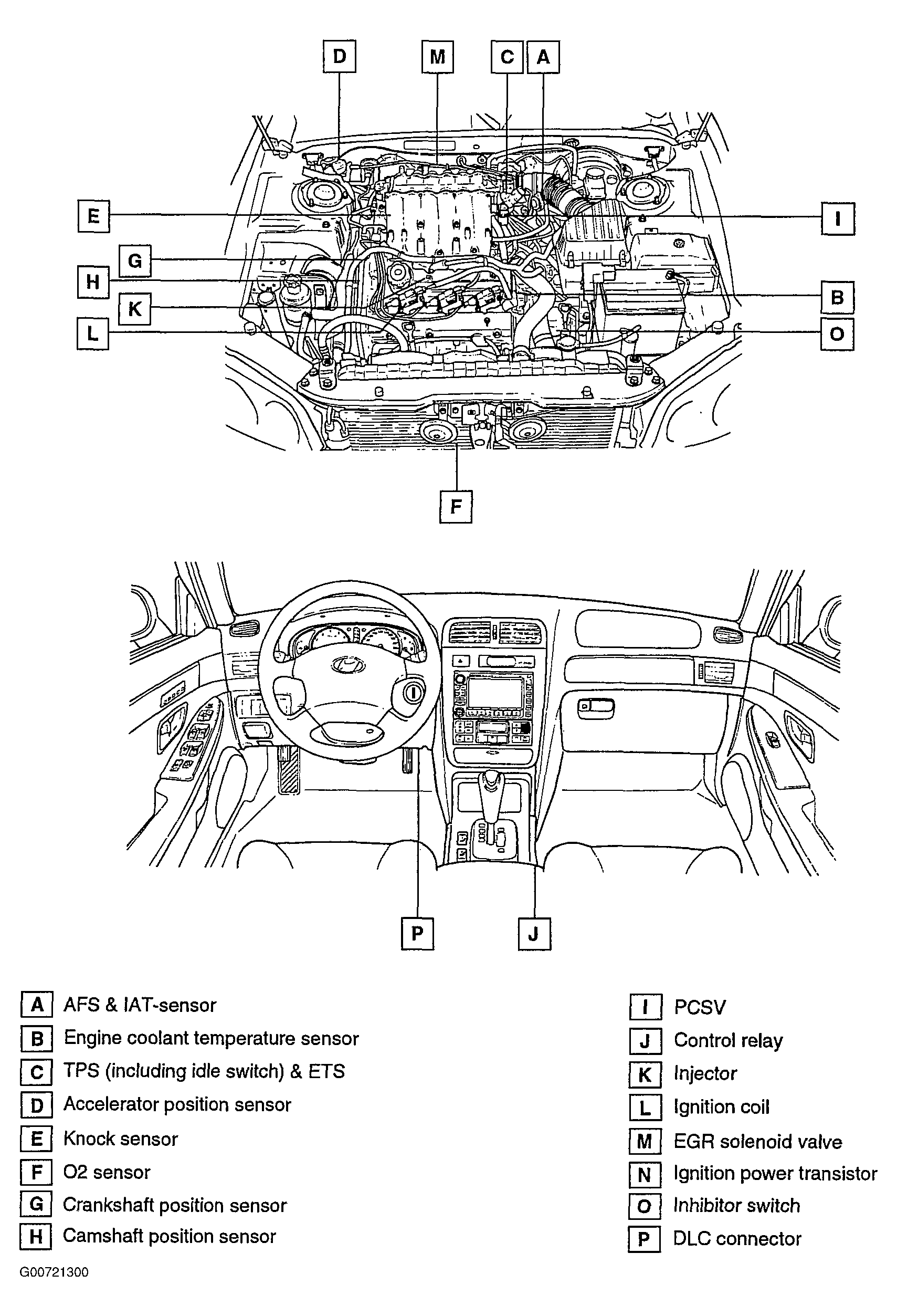

Fig 1: Locating MFI Components (1 Of 4)
G00721300Courtesy of HYUNDAI MOTOR CO.

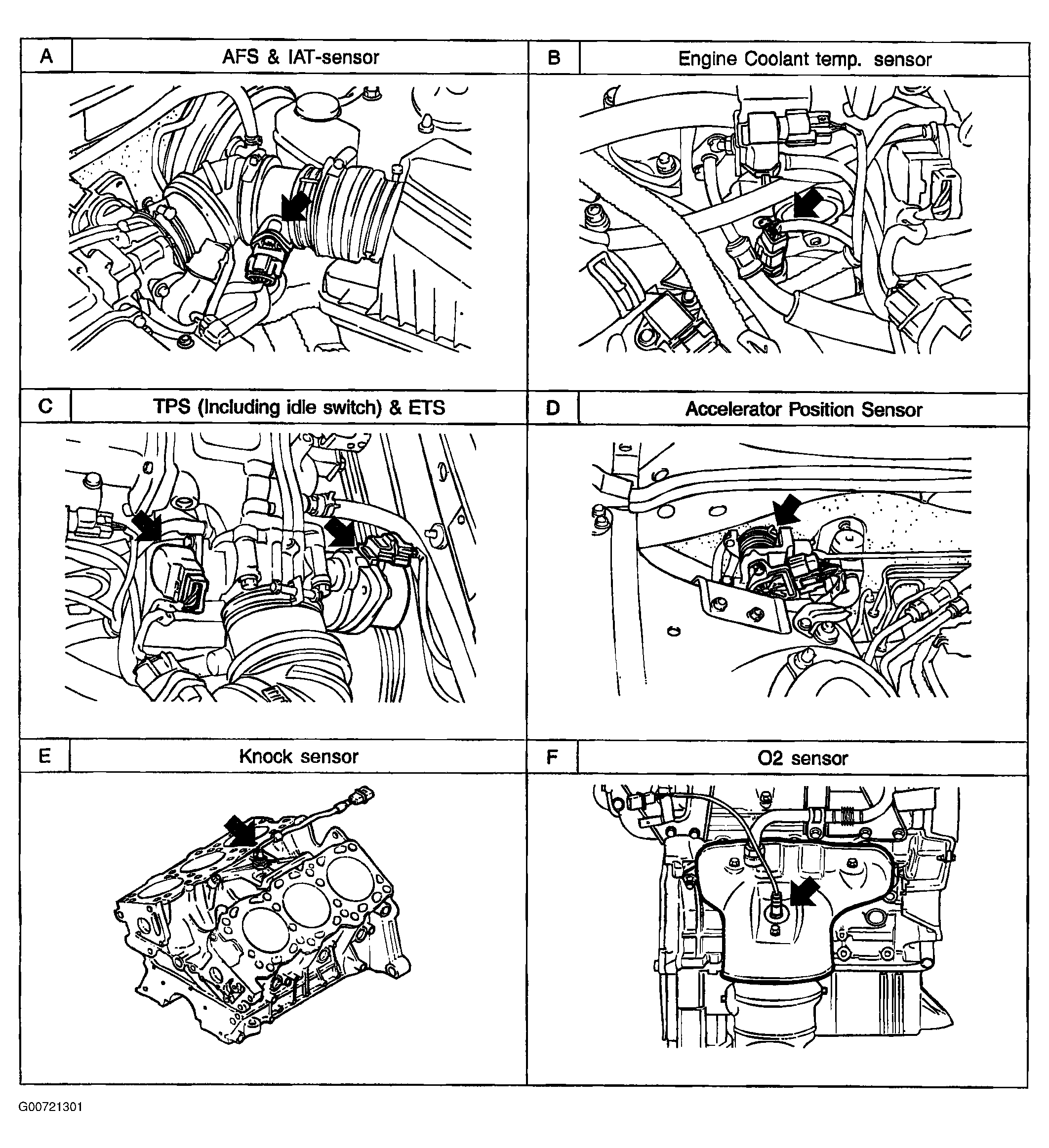

Fig 2: Locating MFI Components (2 Of 4)
G00721301Courtesy of HYUNDAI MOTOR CO.

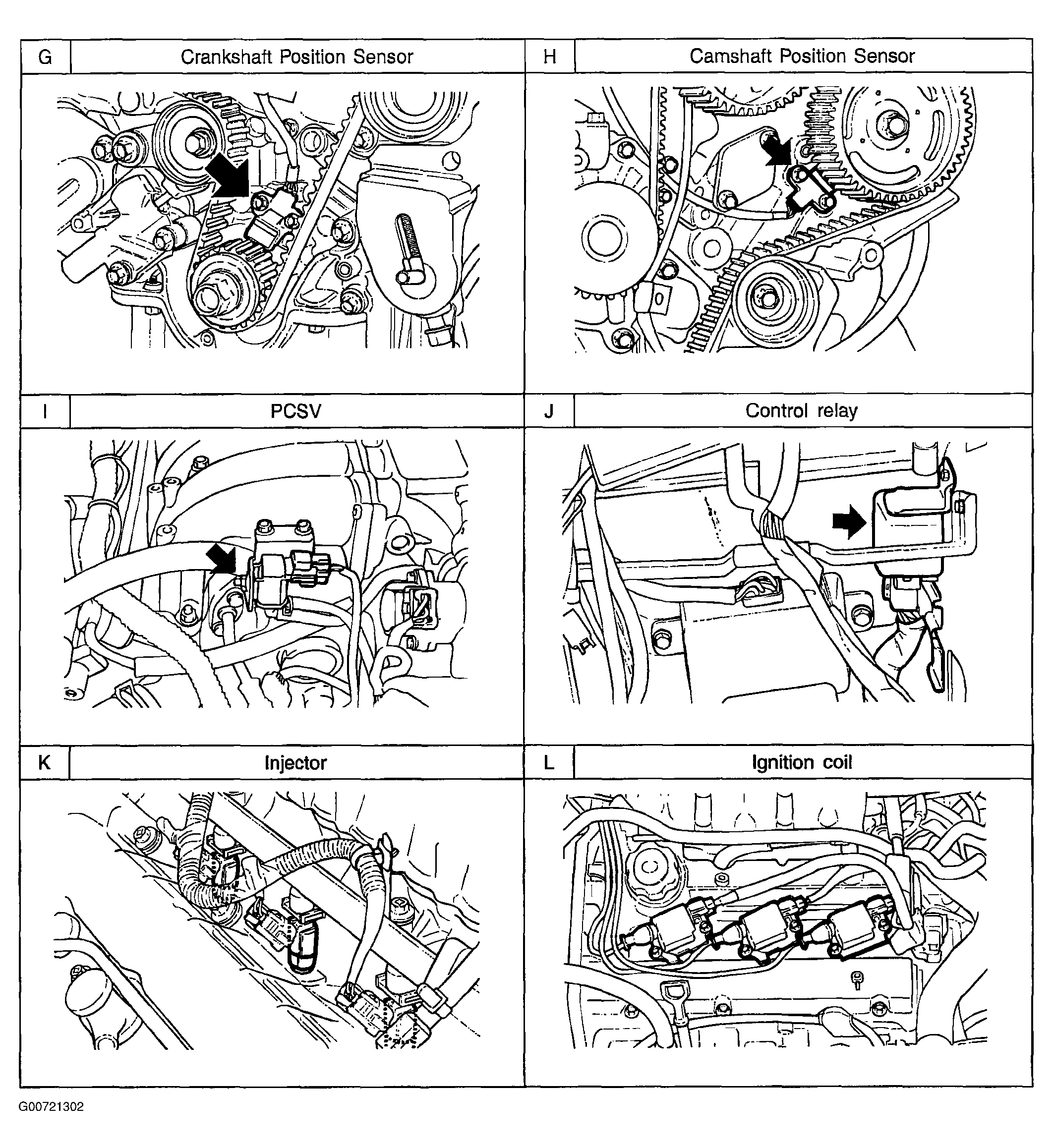

Fig 3: Locating MFI Components (3 Of 4)
G00721302Courtesy of HYUNDAI MOTOR CO.

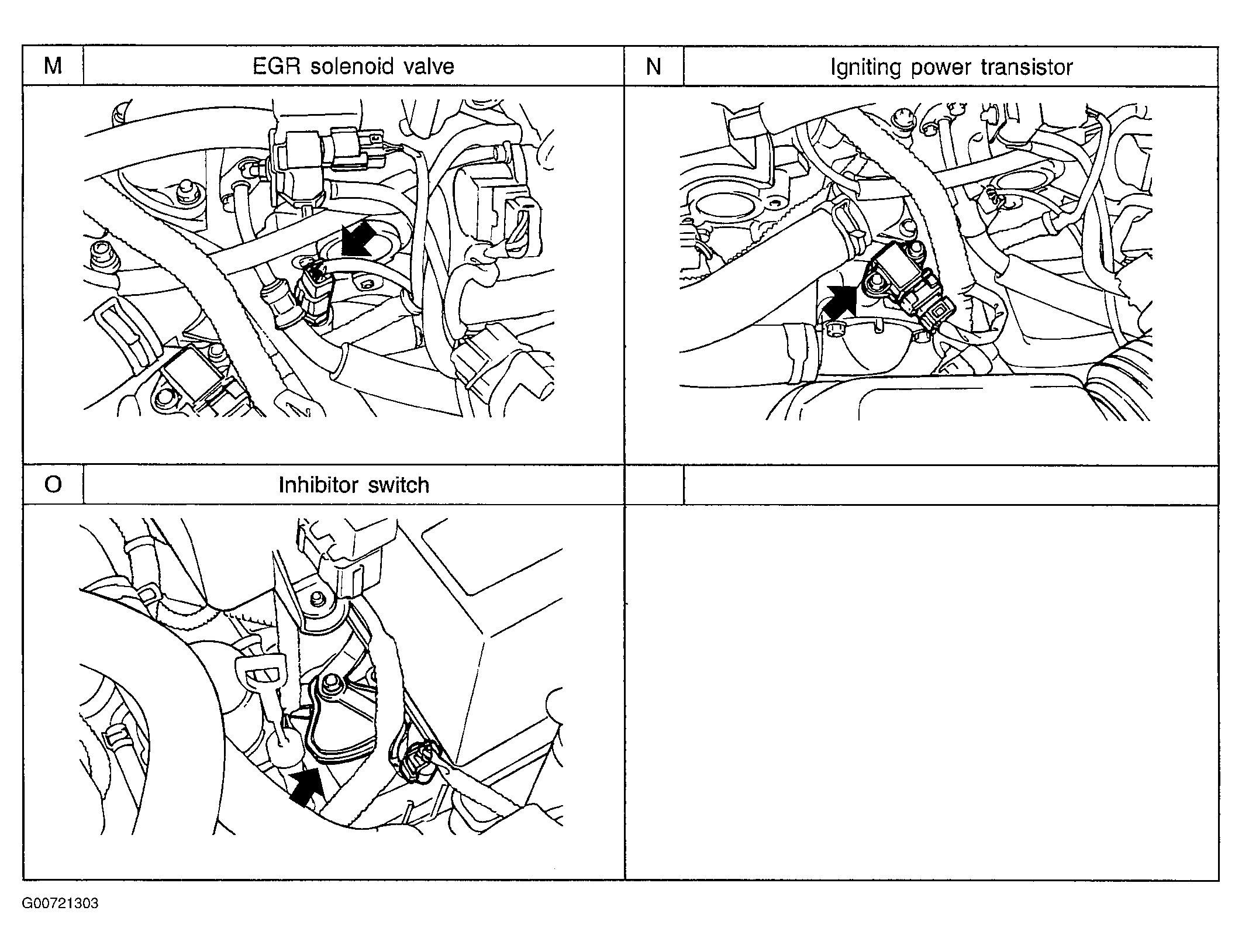

Fig 4: Locating MFI Components (4 Of 4)
G00721303Courtesy of HYUNDAI MOTOR CO.
