Evaporative Emission Control System: Components

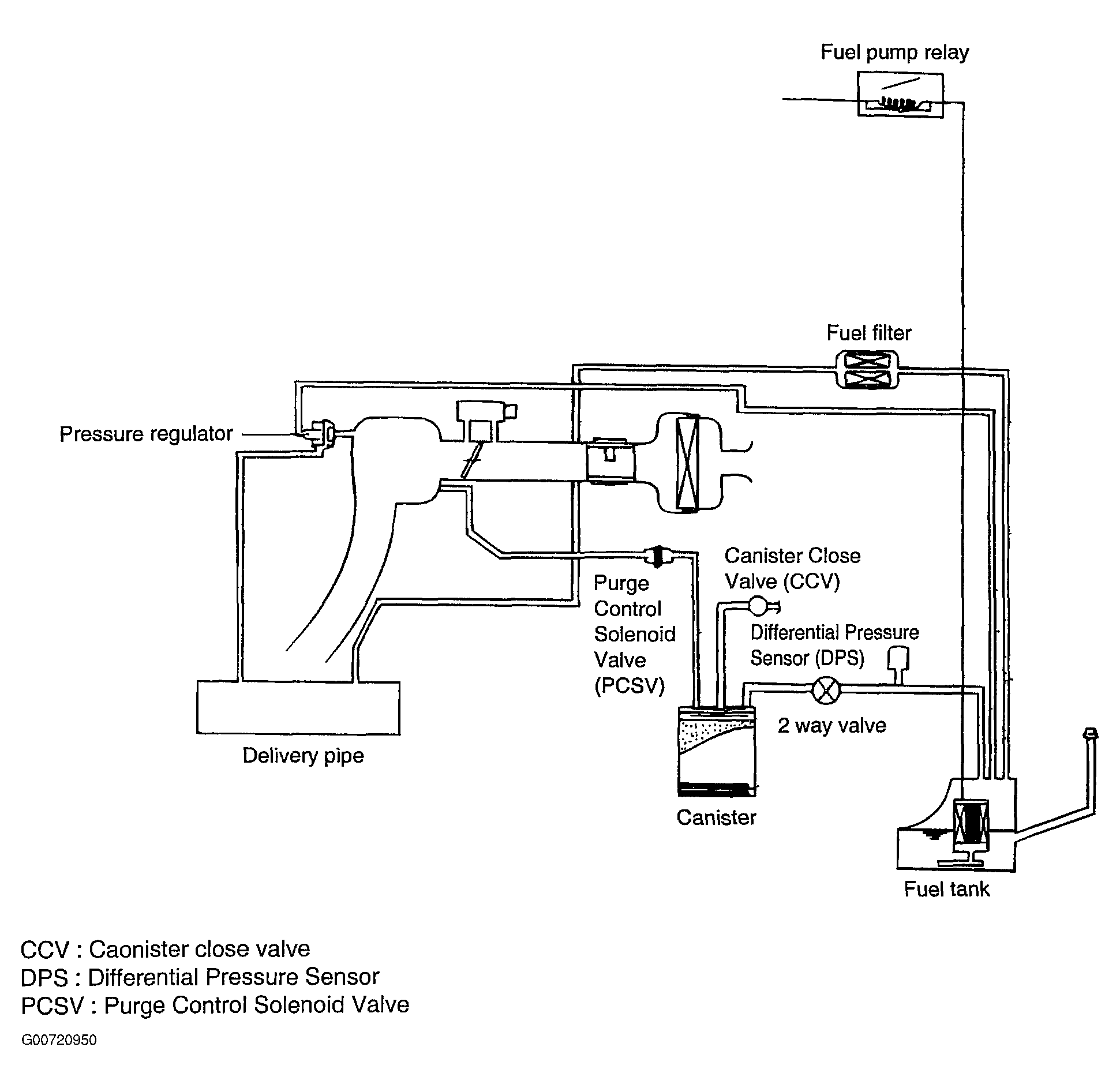

Fig 1: Identifying Evaporative Emission Control System Components
G00720950Courtesy of HYUNDAI MOTOR CO.
