Tightening Torque

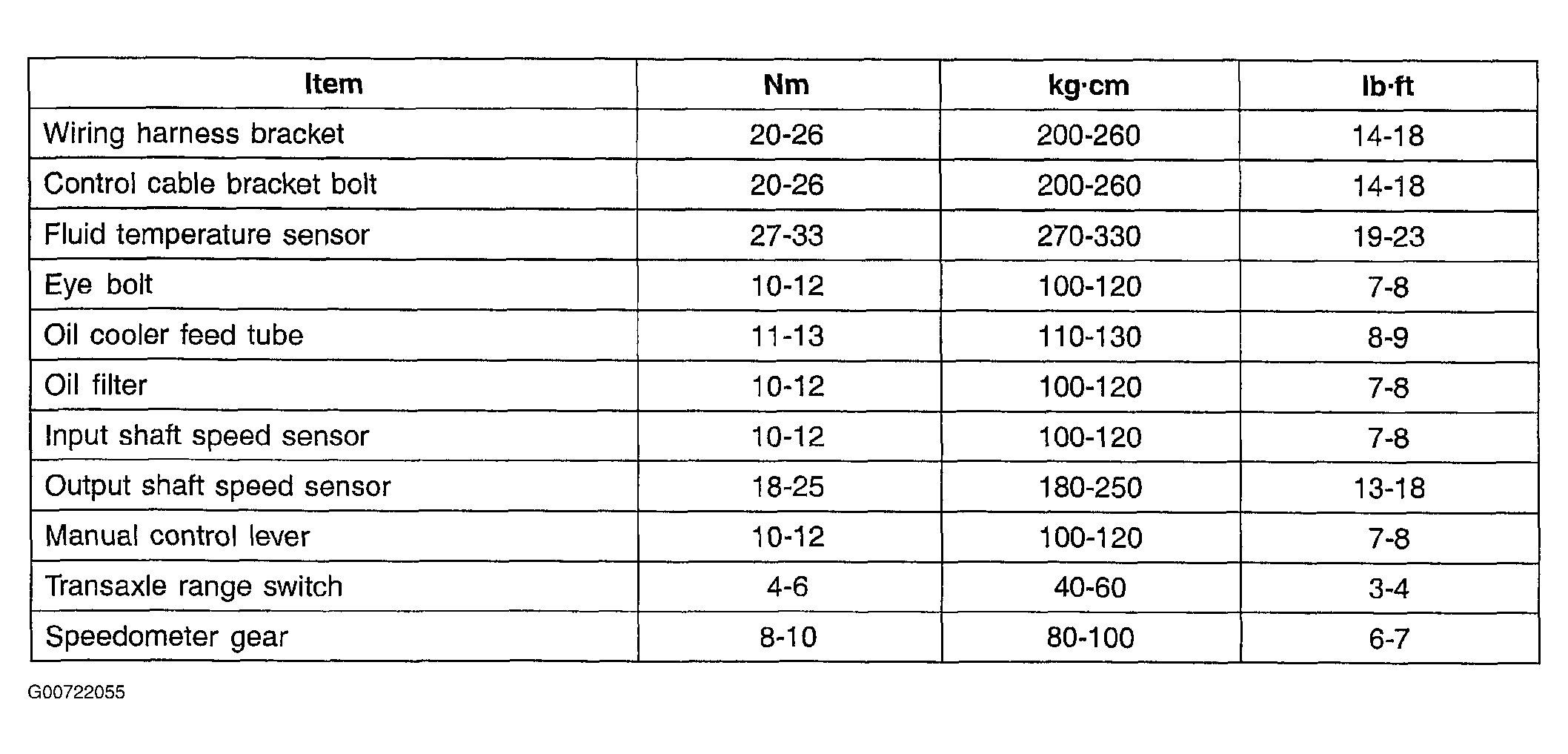

Fig 1: Tightening Torque (1 Of 2)
G00722055Courtesy of HYUNDAI MOTOR CO.

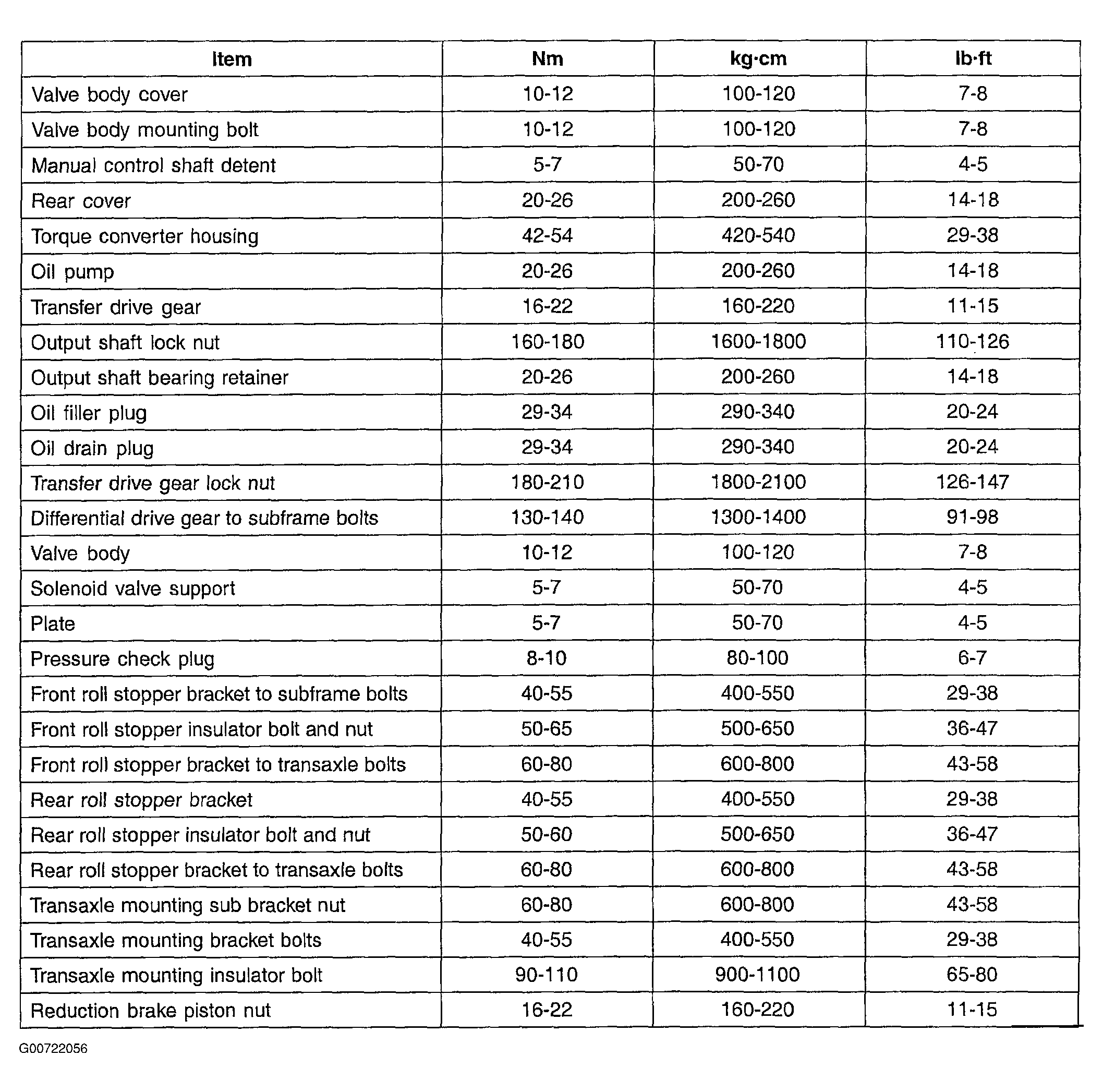

Fig 2: Tightening Torque (2 Of 2)
G00722056Courtesy of HYUNDAI MOTOR CO.
