Communication With Scan Tool Is Not Possible.

(Cannot communicate with any system)

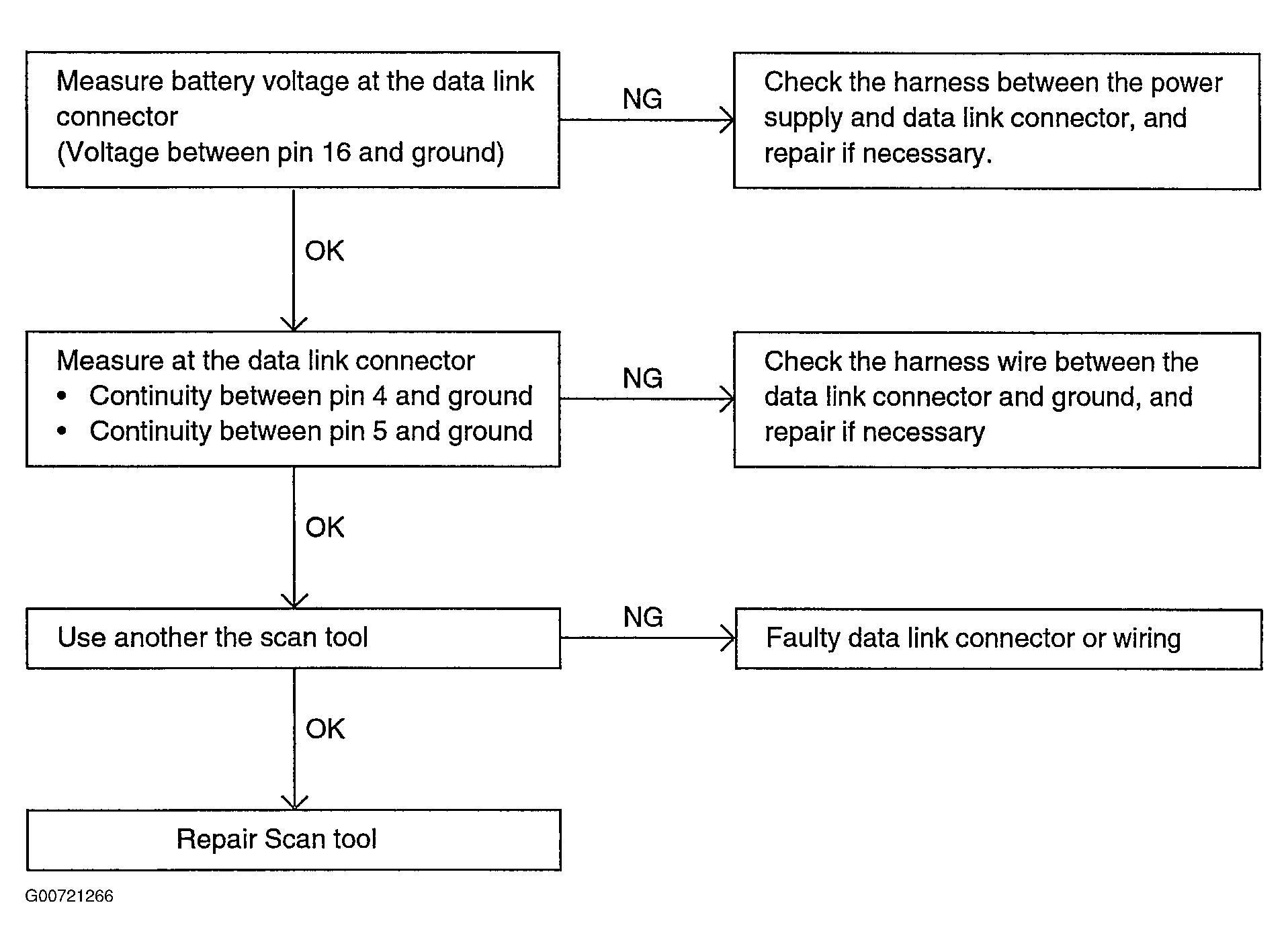

Fig 1: Communication Using Scan Tool Not Possible Flow Chart
G00721266Courtesy of HYUNDAI MOTOR CO.
