Analyzing Spark Plugs

Engine conditions can be analyzed by examining the tip deposits near the electrode.

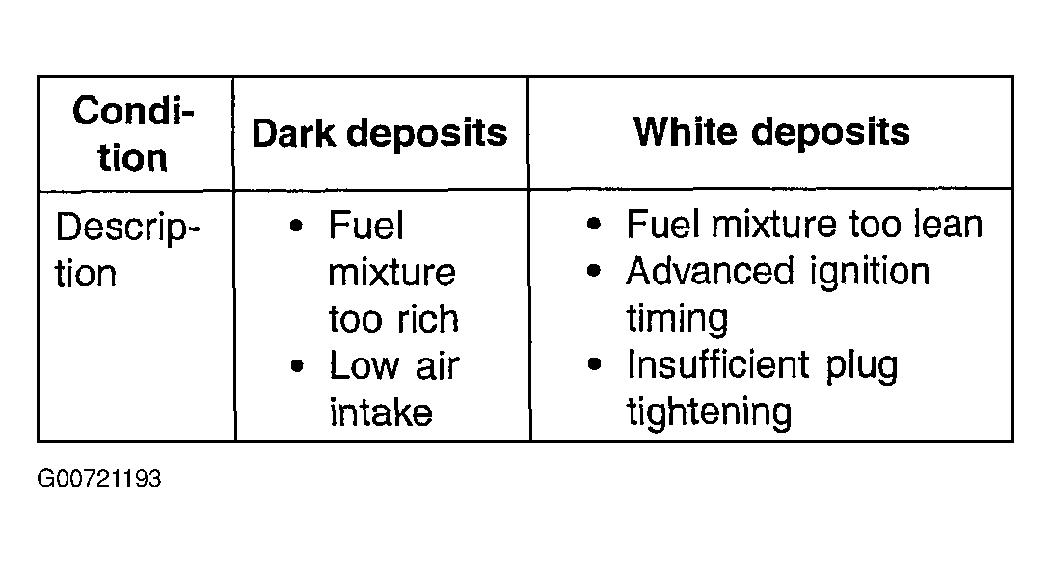

Fig 1: Spark Plug Condition Table
G00721193Courtesy of HYUNDAI MOTOR CO.
