Circuit Diagram: [A/T]

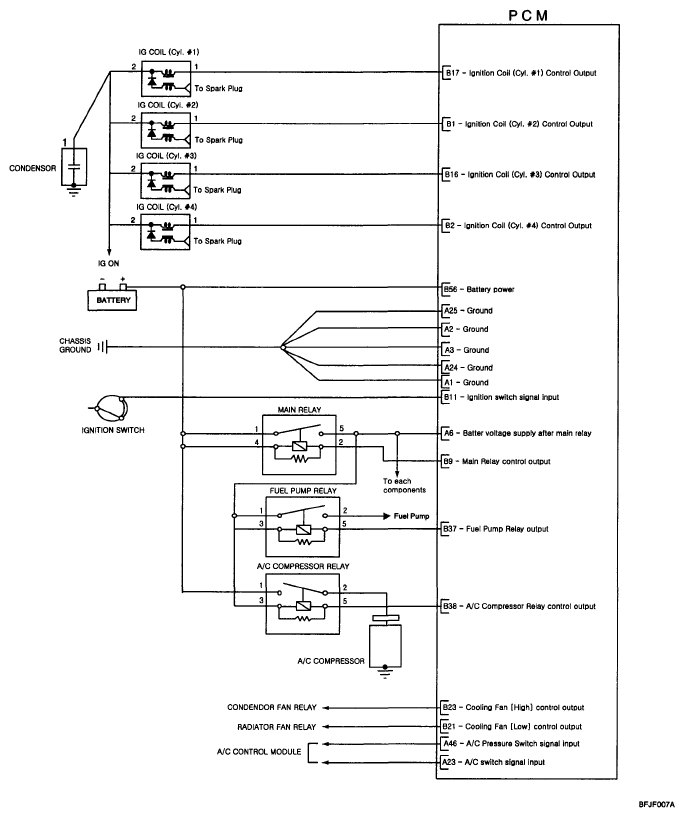

Fig 1: Fuel System Circuit Diagram - A/T (1 Of 4)
G04801512

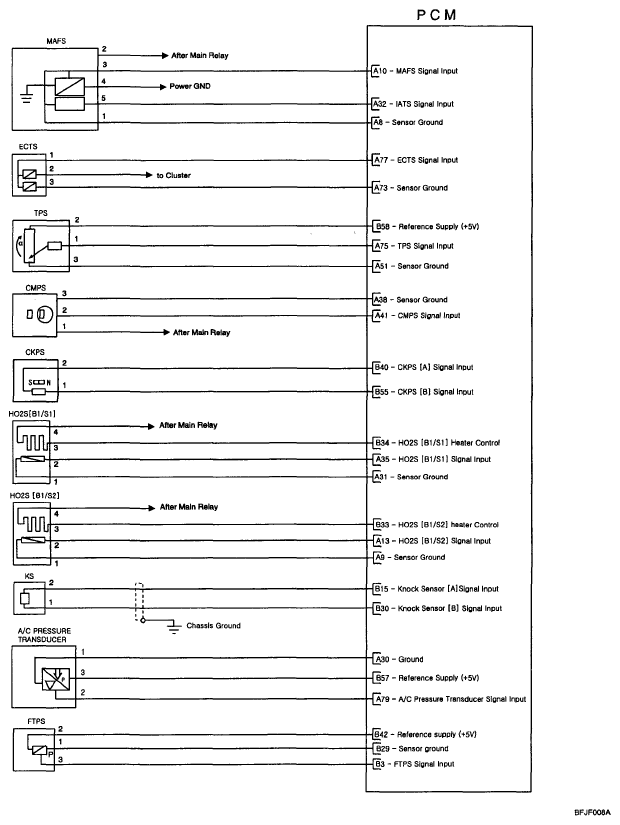

Fig 2: Fuel System Circuit Diagram - A/T (2 Of 4)
G04801513

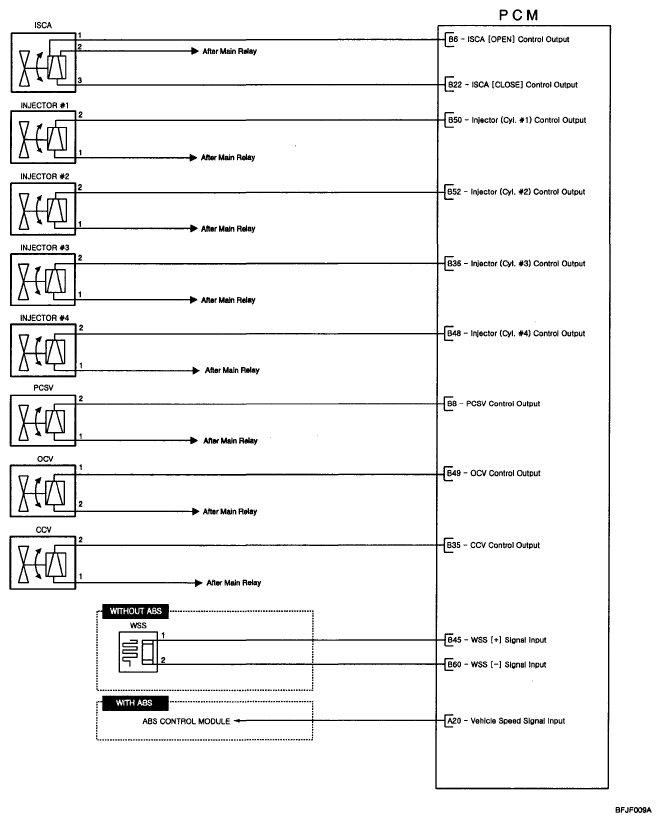

Fig 3: Fuel System Circuit Diagram - A/T (3 Of 4)
G04801514

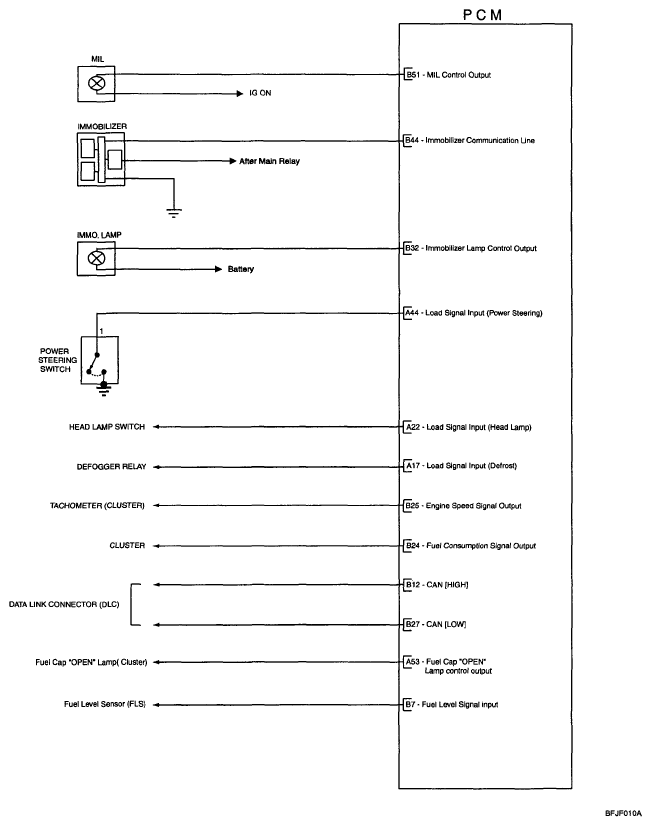

Fig 4: Fuel System Circuit Diagram - A/T (4 Of 4)
G04801515
