Etc (Electric Throttle Control) System: Specification: Notes

[THROTTLE POSITION SENSOR]

THROTTLE POSITION SENSOR VOLTAGE SPECIFICATION

Throttle Angle(°)	Output Voltage(V) [Vref = 5.0V]
	TPS1	TPS2
0°	0V	5.0V
10°	0.5V	4.5V
20°	0.9V	4.1V
30°	1.4V	3.6V
40°	1.8V	3.2V
50°	2.3V	2.7V
60°	2.7V	2.3V
70°	3.2V	1.8V
80°	3.6V	1.4V
90°	4.1V	0.9V
100°	4.5V	0.5V
110°	5.0V	0V

THROTTLE POSITION SENSOR RESISTANCE SPECIFICATION

Item	Sensor Resistance
TPS1	4.0~6.0kΩ at 20°C (68°F)
TPS2	2.72 ~ 4.08 kΩ at 20°C (68°F)

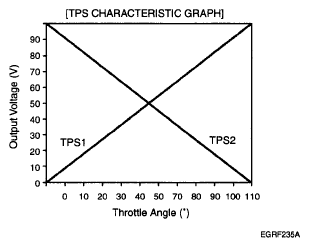

Fig 1: Throttle Position Sensor Output Voltage Graph

Courtesy of HYUNDAI MOTOR CO.

[ETC MOTOR]

COIL RESISTANCE SPECIFICATION

Item	Sensor Resistance
Coil Resistance (Ω)	1.275 ~ 1.725Ω at 20 °C (68° F)
