Memory Positioning Systems

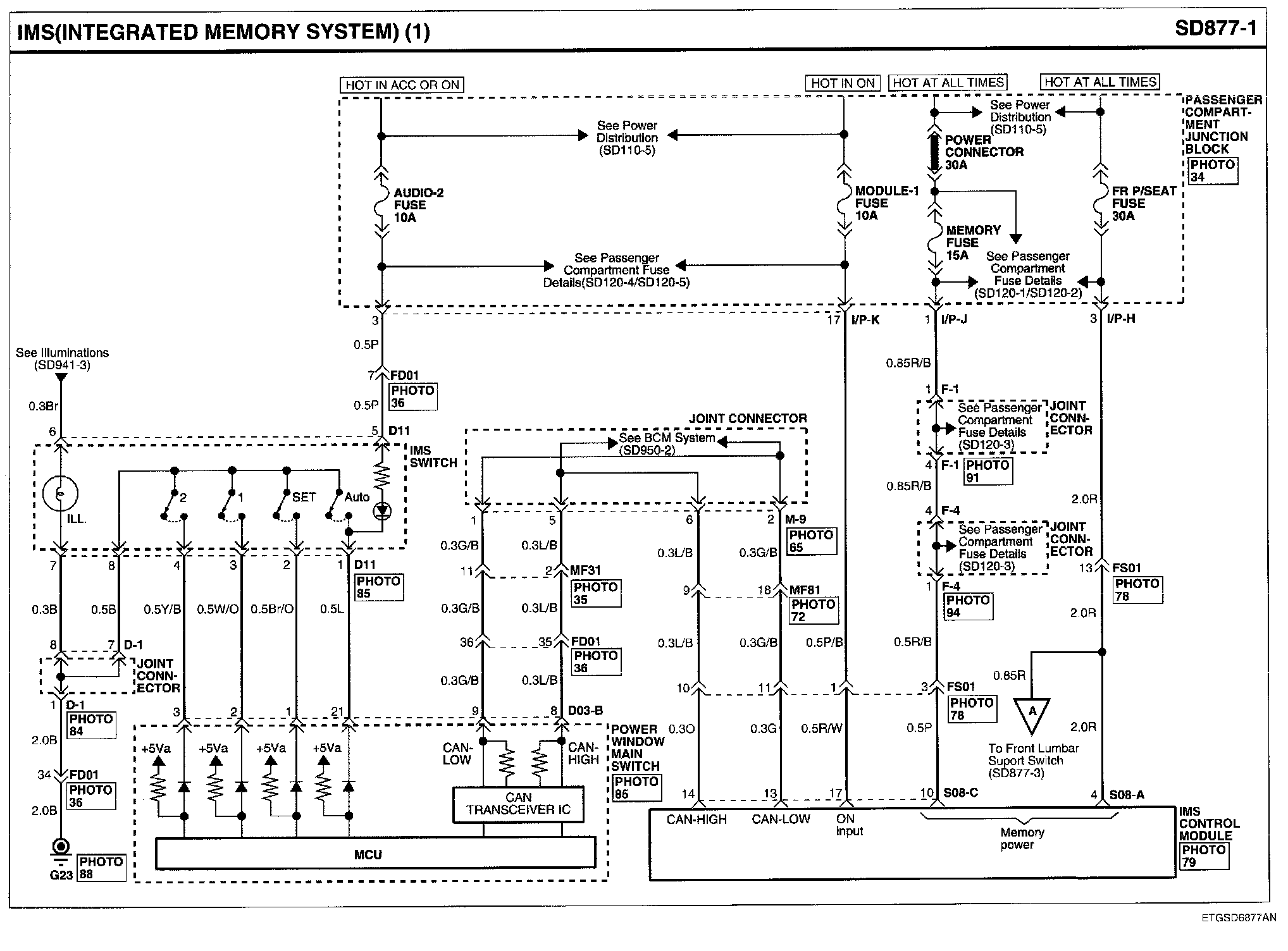

IMS (Integrated Memory System) (1):

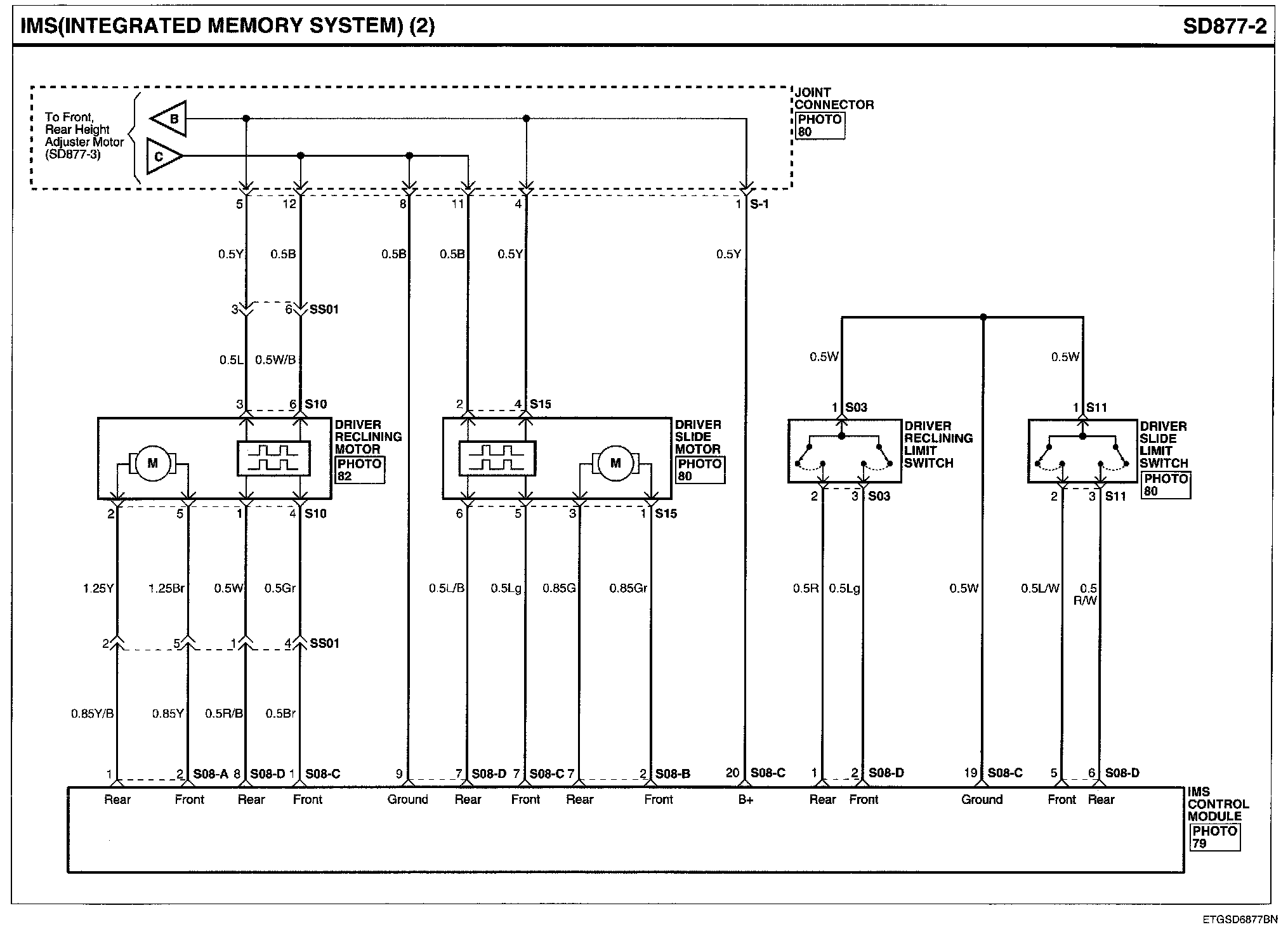

IMS (Integrated Memory System) (2):

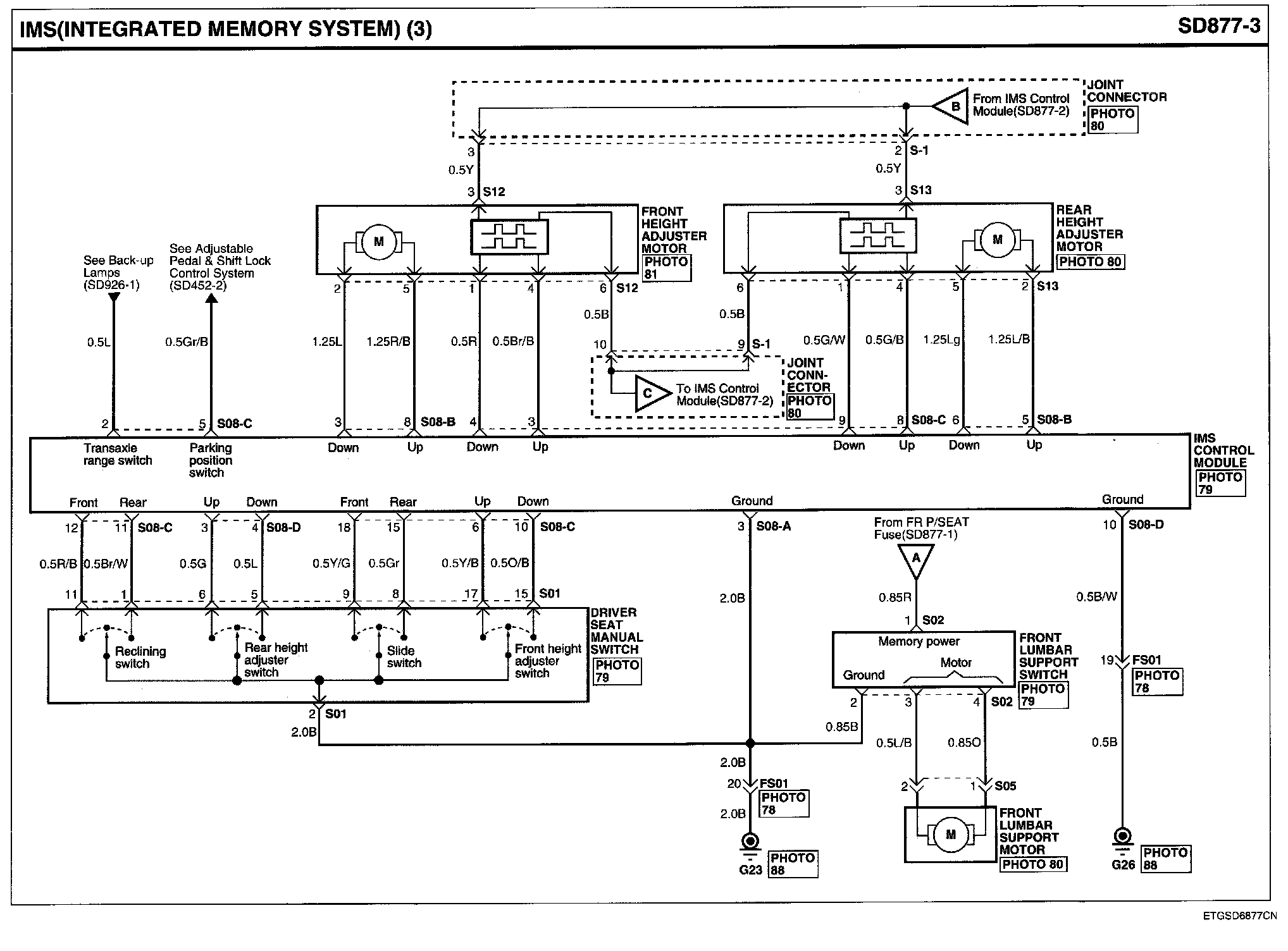

IMS (Integrated Memory System) (3):

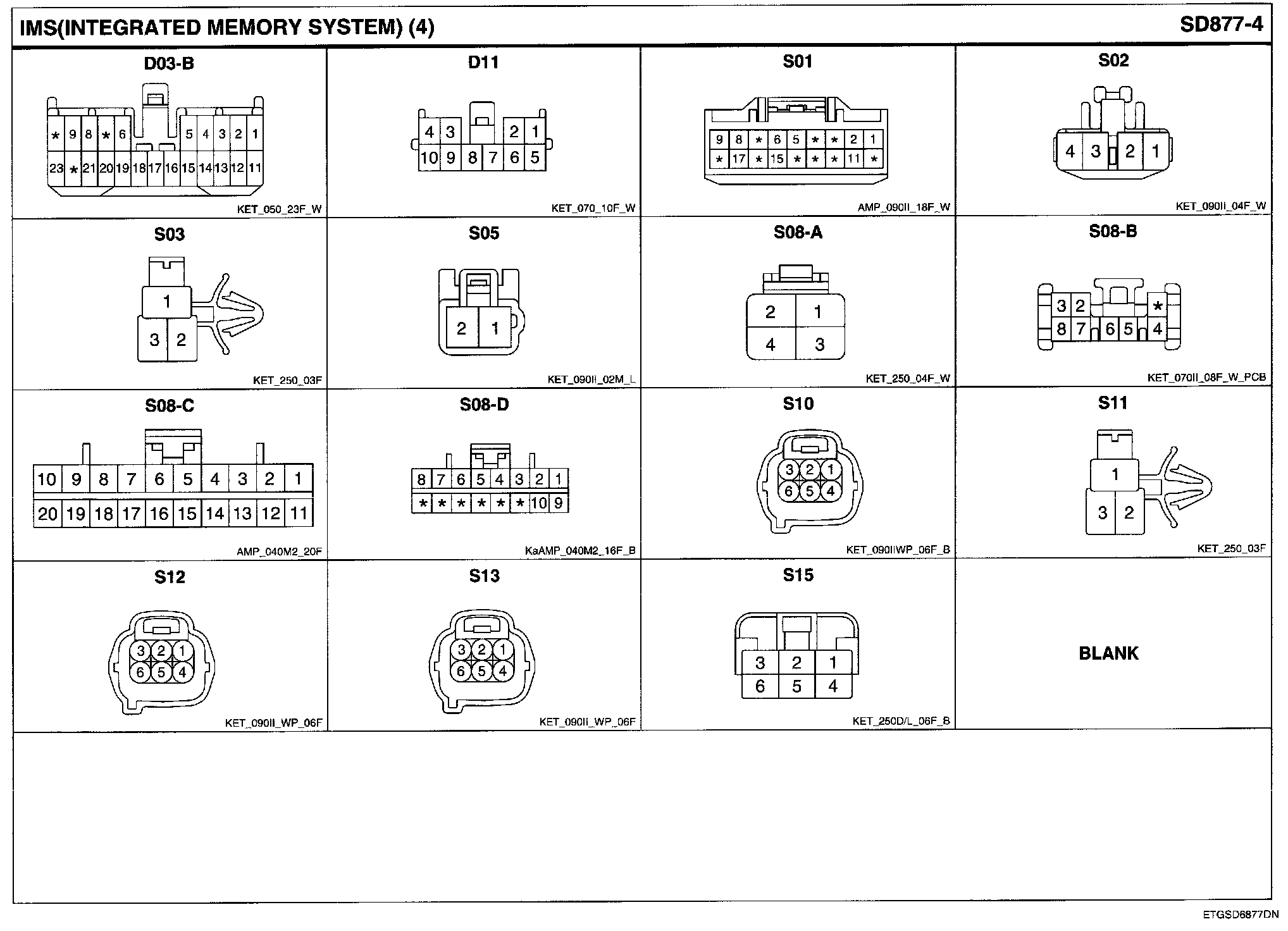

IMS (Integrated Memory System) Connector Pin Outs:

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Component Locations

Connector Views: The Connector Pin Out Views for connectors shown on these diagrams can be found on the Connector Pin Out images that follow most sets of system diagrams.
