Automatic Transmission/Transaxle: Testing and Inspection

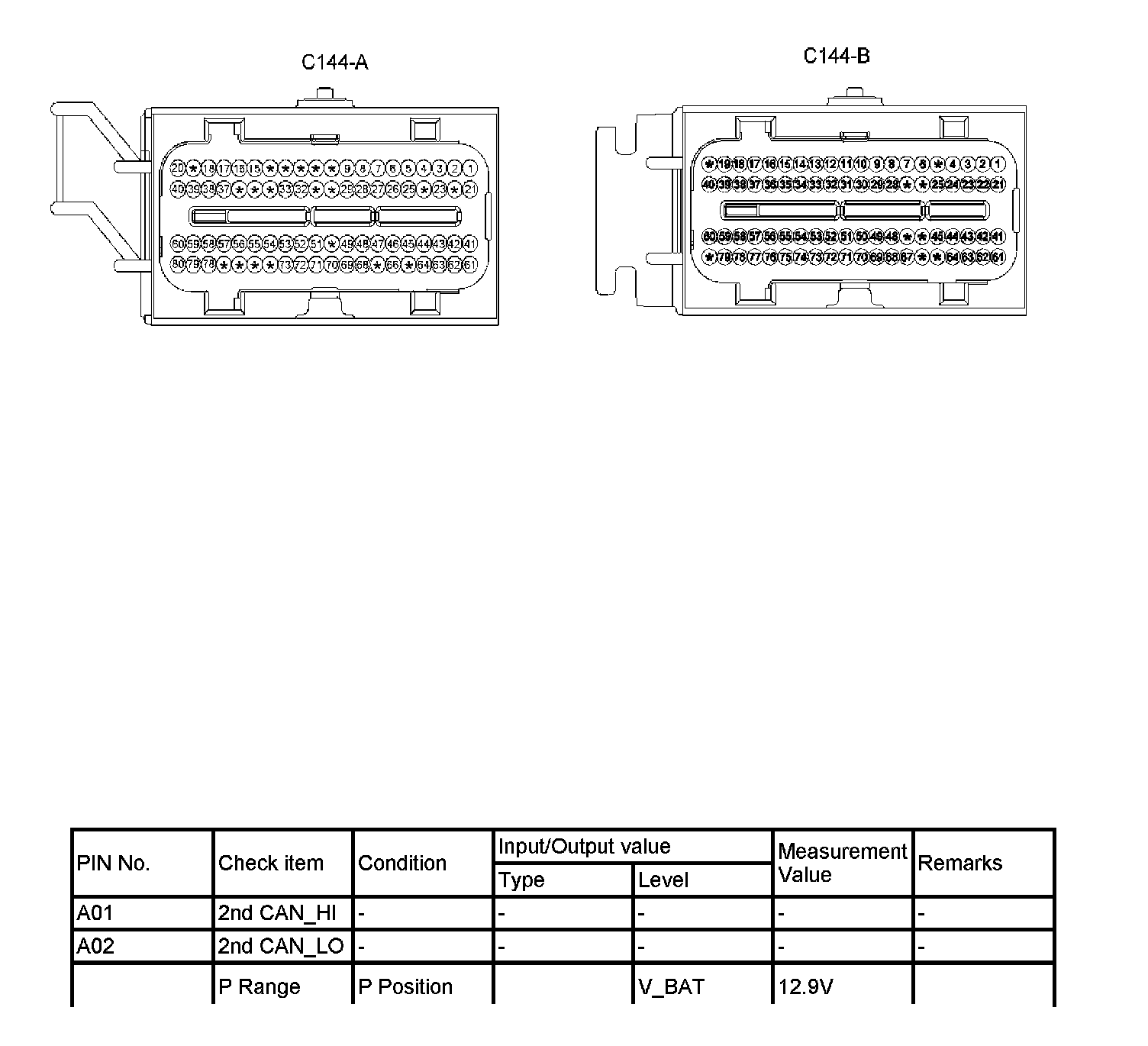

INPUT/OUTPUT SIGNAL VOLTAGE CHECK SHEET (part 1):

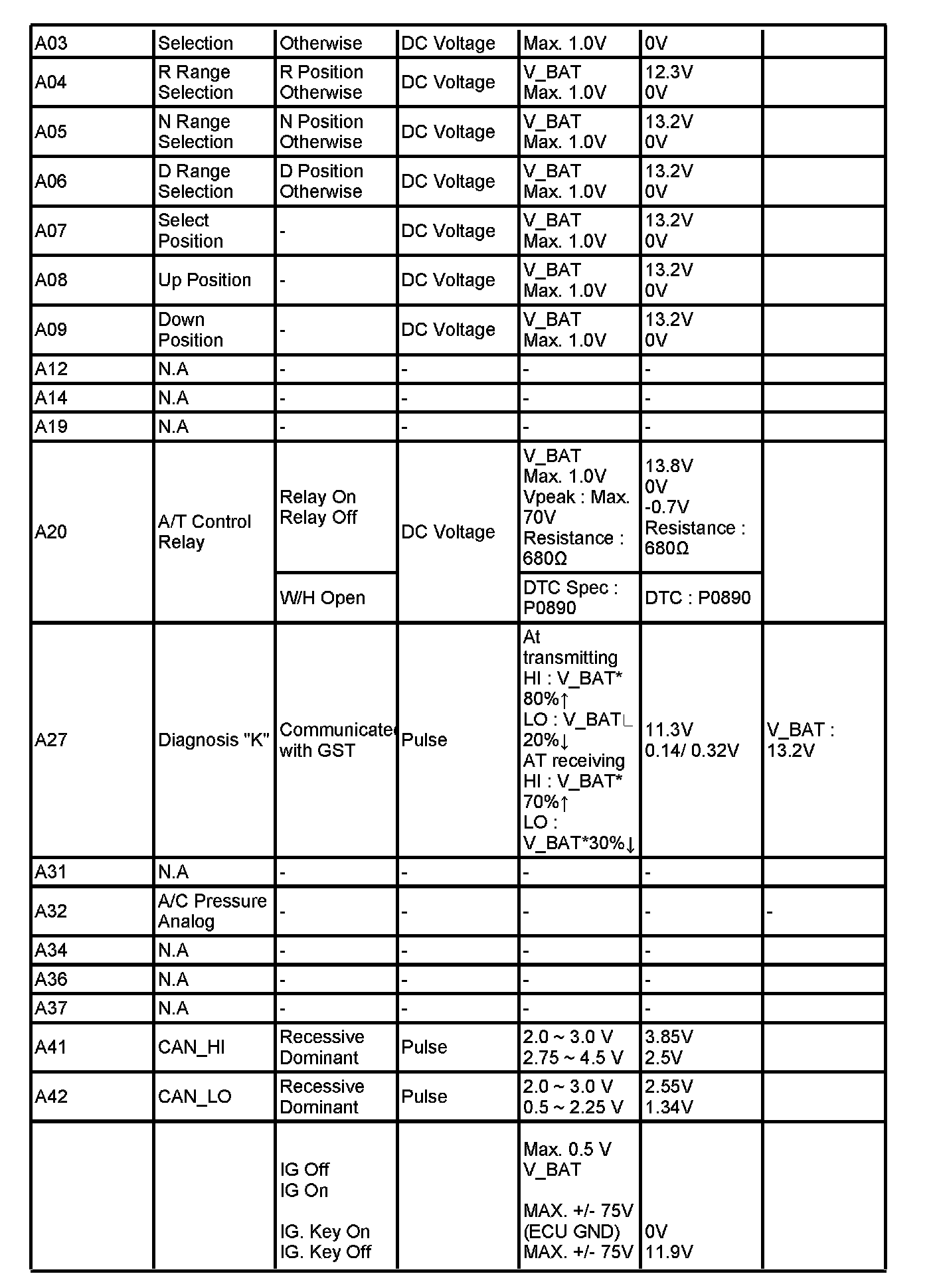

INPUT/OUTPUT SIGNAL VOLTAGE CHECK SHEET (part 2):

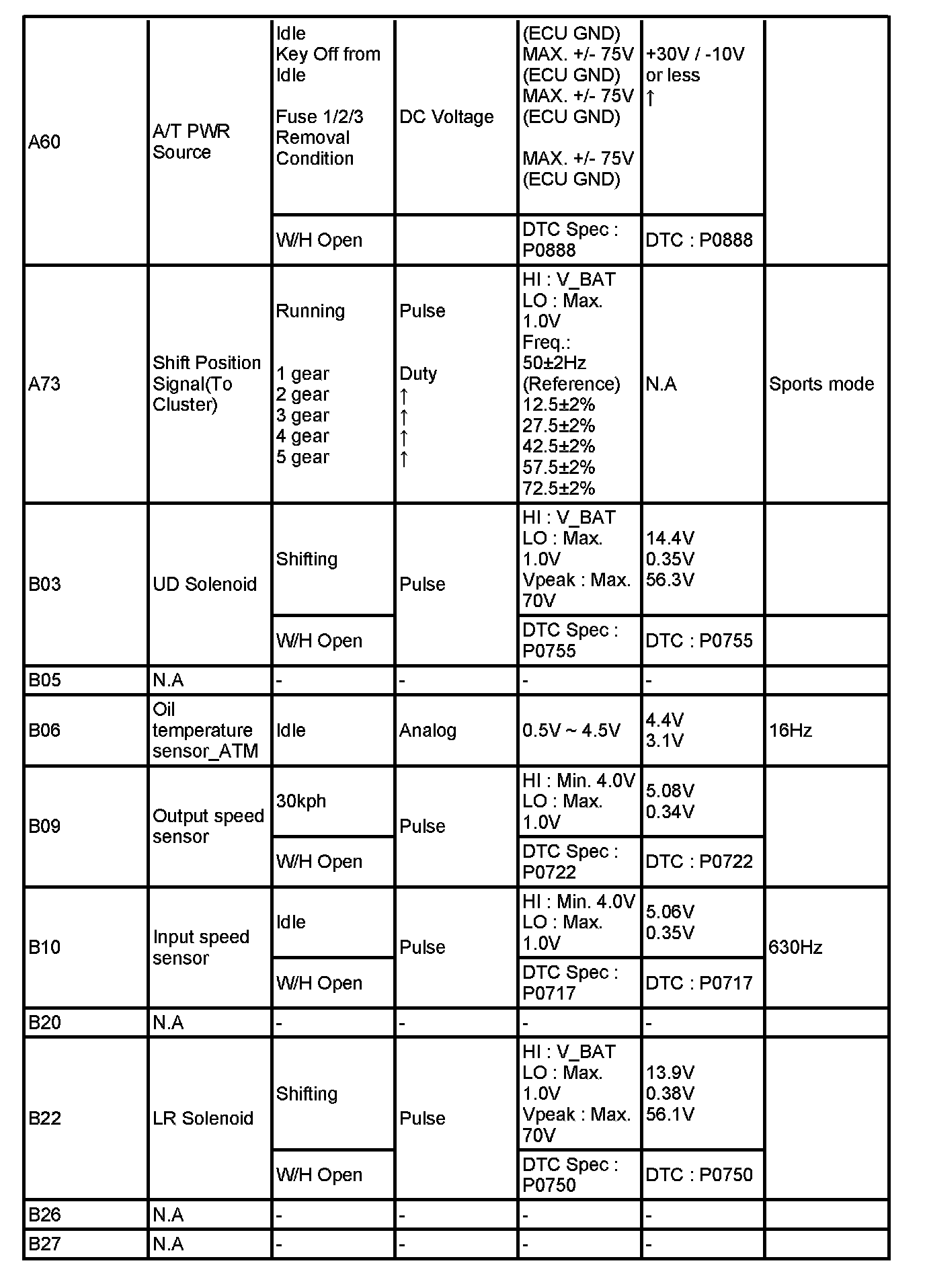

INPUT/OUTPUT SIGNAL VOLTAGE CHECK SHEET (part 3):

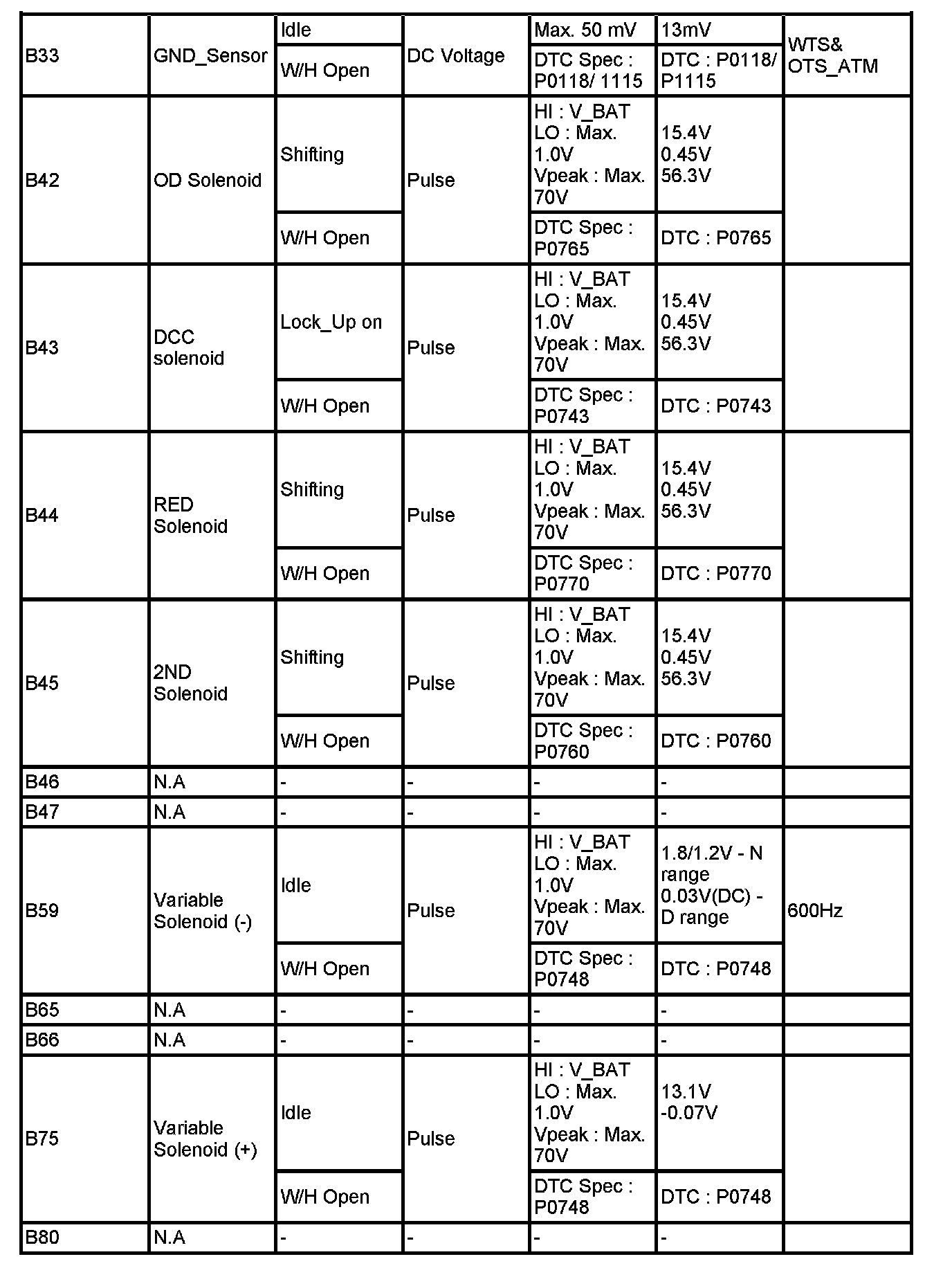

INPUT/OUTPUT SIGNAL VOLTAGE CHECK SHEET (part 4):
