Troubleshooting Procedures

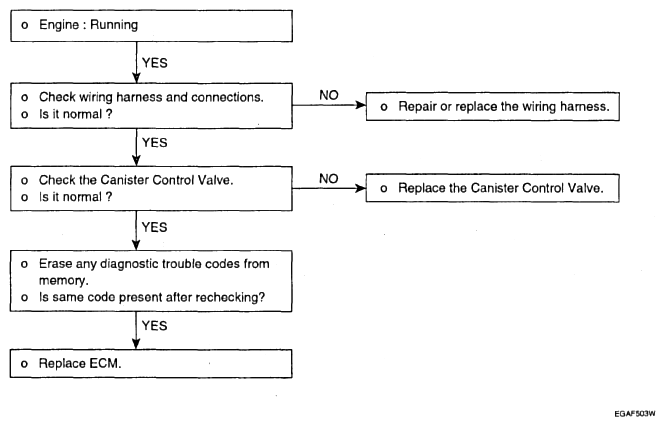

Fig 1: Troubleshooting Procedures Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
