Troubleshooting Procedures

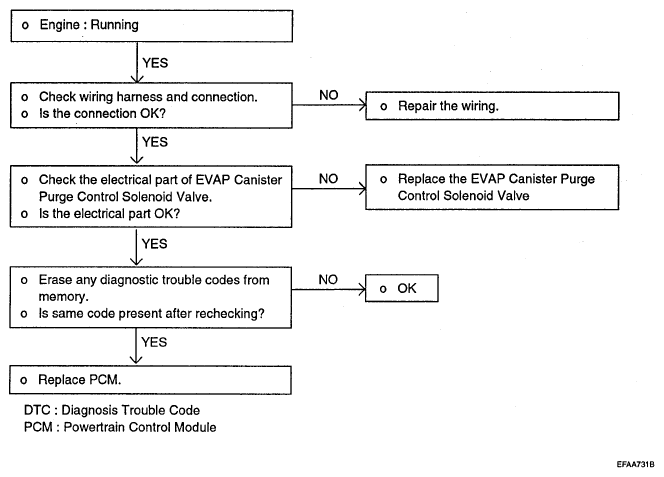

Fig 1: Troubleshooting Flow Chart

Courtesy of HYUNDAI MOTOR CO.

USING HI-SCAN (PRO)

HI-SCAN FUNCTIONS REFERENCE

Check Item	Check conditions	HI-SCAN display	Type
Evaporative emission canister purge solenoid valve Actuator test	IG. S/W ON (Do not start)	PCSV	Activate
