Coupling Assembly: Components

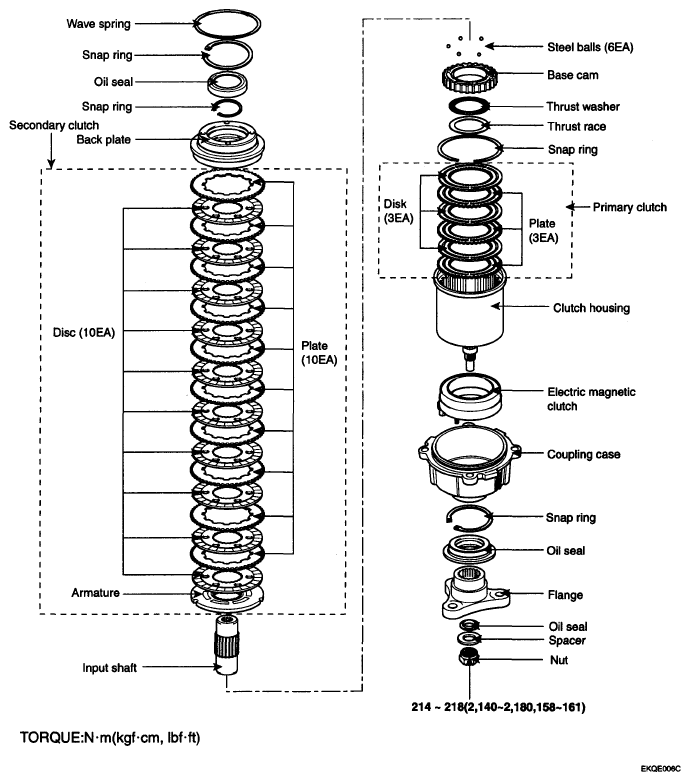

Fig 1: Identifying Coupling Assembly Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
