Transfer Case: Components

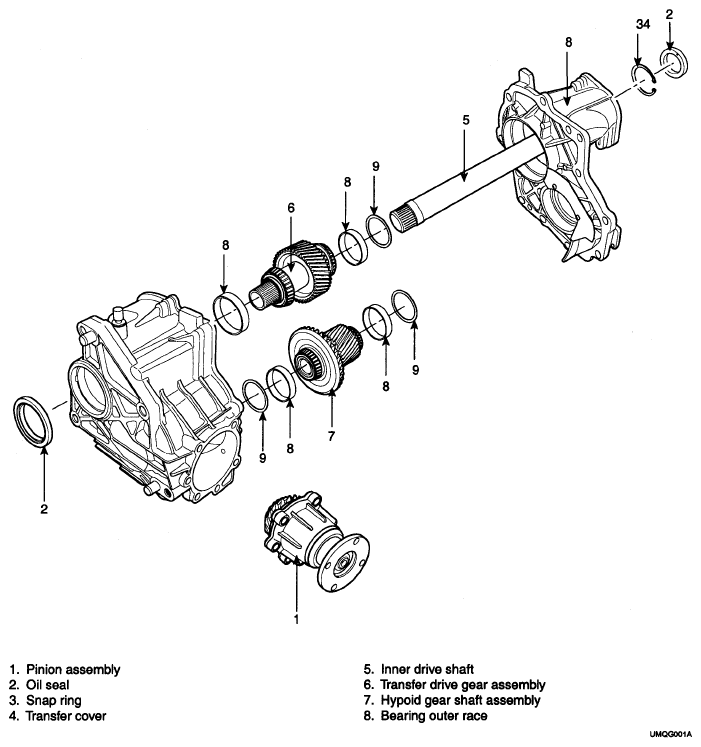

Fig 1: Identifying Transfer Case Components
G04811057Courtesy of HYUNDAI MOTOR CO.
