Ignition Switch: Inspection

  1. Disconnect the ignition switch connector and key warning switch connector from under the steering column.
  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.

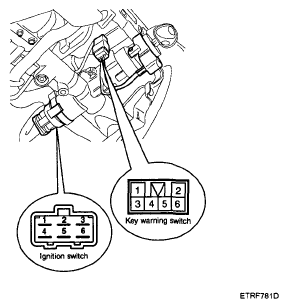

    Fig 1: Identifying Ignition Switch Connector
    G04881701Courtesy of HYUNDAI MOTOR CO.

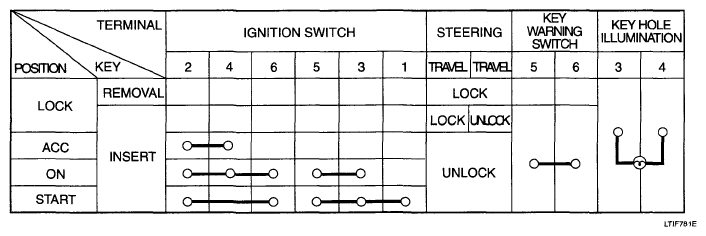

    Fig 2: Ignition Switch Connector Continuity Reference Chart
    G04881702Courtesy of HYUNDAI MOTOR CO.
